60 Series 2WD/4WD, Model - 8560
Instrument Cluster
Instrument Cluster

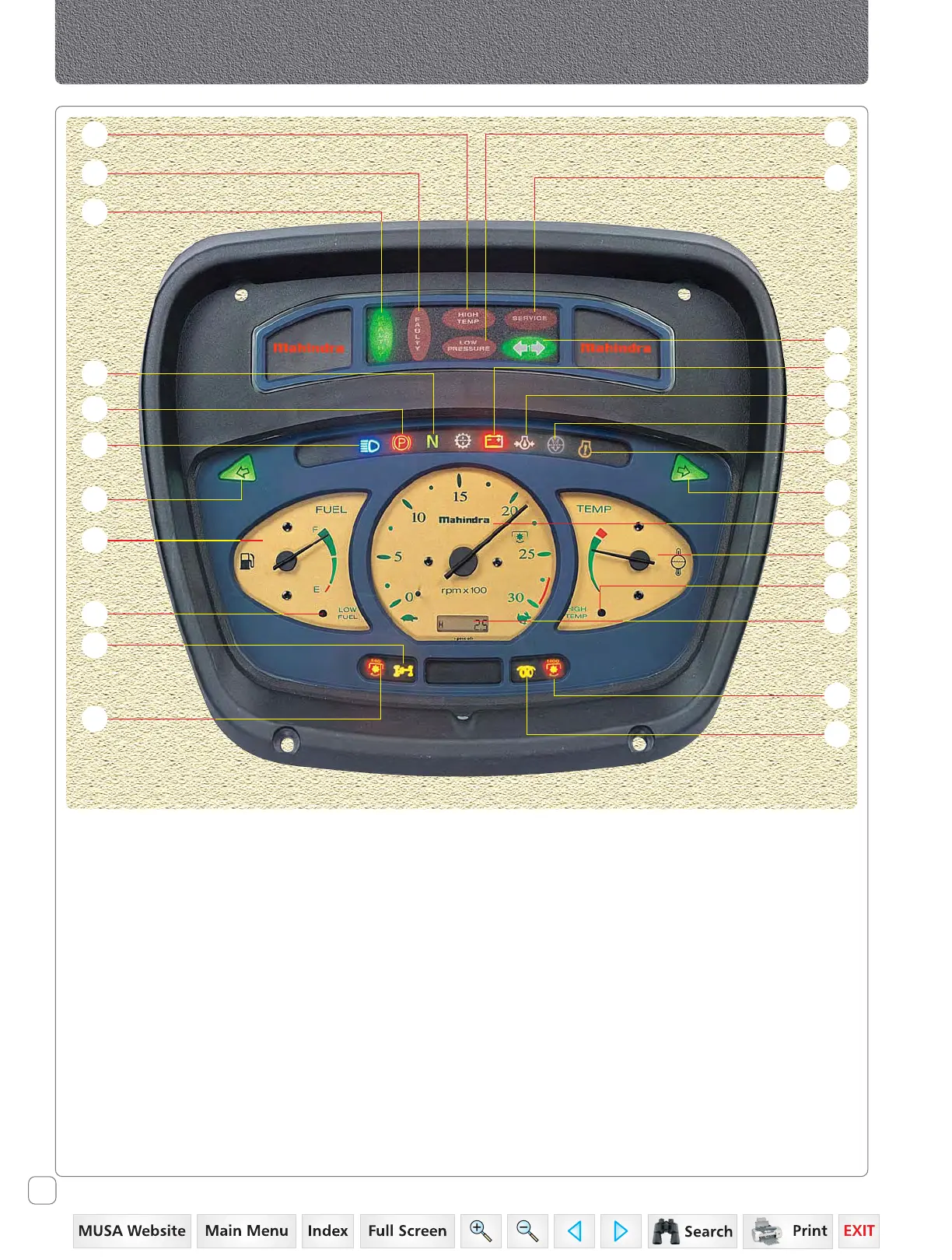

The Instrument Cluster is a descriptive unit that gives the user various indications about the working of the
tractor and its various features. It consists of the following.
1. High Temperature Defect Indicator
2. Engine Defect Indicator
3. Engine Healthy Indicator
4. Transmission & PTO Neutral Indicator
5. Parking Brake Indicator
6. High Beam Indicator
7. L.H. Turn Signal
8. Fuel level Gauge
9. Low Fuel Warning Indicator
10. 4WD Engagement indicator *
11. Low Oil Pressure Defect Indicator
12.
Service Due Indicator
13. Trailer Indicator
14. Battery Charging Indicator
15. Low Engine Oil Pressure Indicator
16. Air Filter Clog Indicator
17. Emission Control System Indicator
18. R.H. Turn Indicator
19. RPM Meter
20. Coolant Temperature Gauge
21. High Temperature Warning Indicator
22. Hour Counter
23. PTO 1000 RPM Indicator
24. Heater Indicator
25. PTO 540 RPM Indicator
23
24
22
21
20
19
13
10
9
8
7
6
5
4
3
2
1
18
12
11
15
14
17
16
25
* - Applicable for 8560 4WD
