60 Series 2WD/4WD, Model - 8560

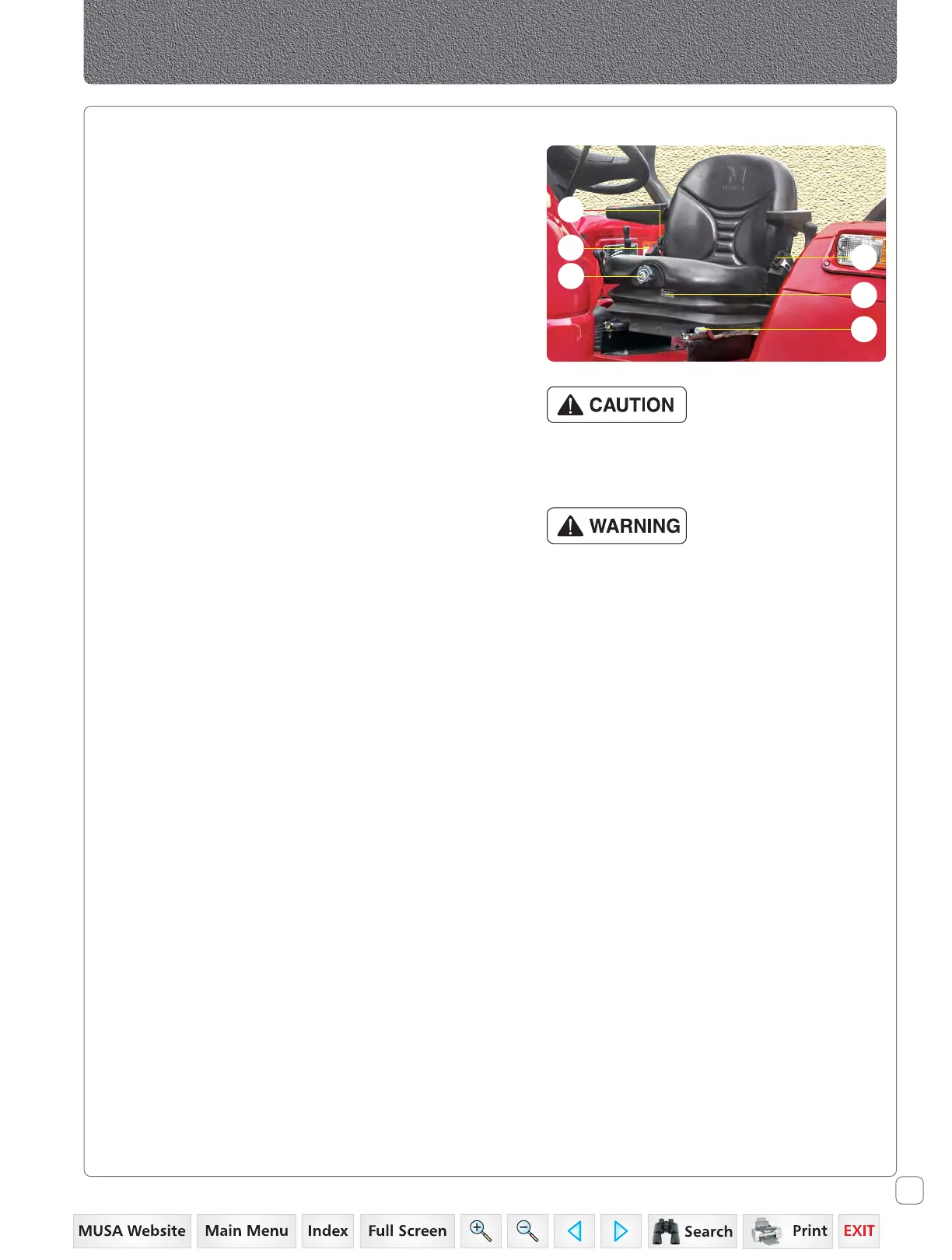

Controls
Operator Seat
The operator seat can be adjusted for position, tilt and
weight of operator. These adjustments are to be done prior
to starting the engine.
Adjusting Seat Position
1. Sit on the operator seat.
2. Push the lever (F) upwards and slide seat forward or
rearward to desired position.
3. Release Lever to lock seat in position. Ensure that all
controls can be accessed easily.
Weight Adjustment
To achieve optimum seat suspension, turn the knob (C) till
the weight indicator registers your approximate weight on
indicator (E).
Tilt Adjustment
To achieve optimum seat tilt, turn the knob (A) till the
desired angle of tilt is achieved.
Using Seat belt
Use a seat belt when you operate with Roll over protective
structure (ROPS) to minimise chance of injury from an
accident such as an overturn. Do not jump if machine tips.
Fasten Seat belt
1. Pull belt end (D) across operator lap.
2. Install tab into buckle. A click will be heard when the
tab locks into the buckle.
Release Seat belt
Press red button (B). The seat belt will automatically retract.
Attempting to adjust the seat while driving the
tractor may cause the operator to lose control
of the tractor
Do not use seat belt if operating without a
ROPS or with an optional folding ROPS in the
folded position.
