60 Series 2WD/4WD, Model - 8560
Hydraulic and Transmission Strainer

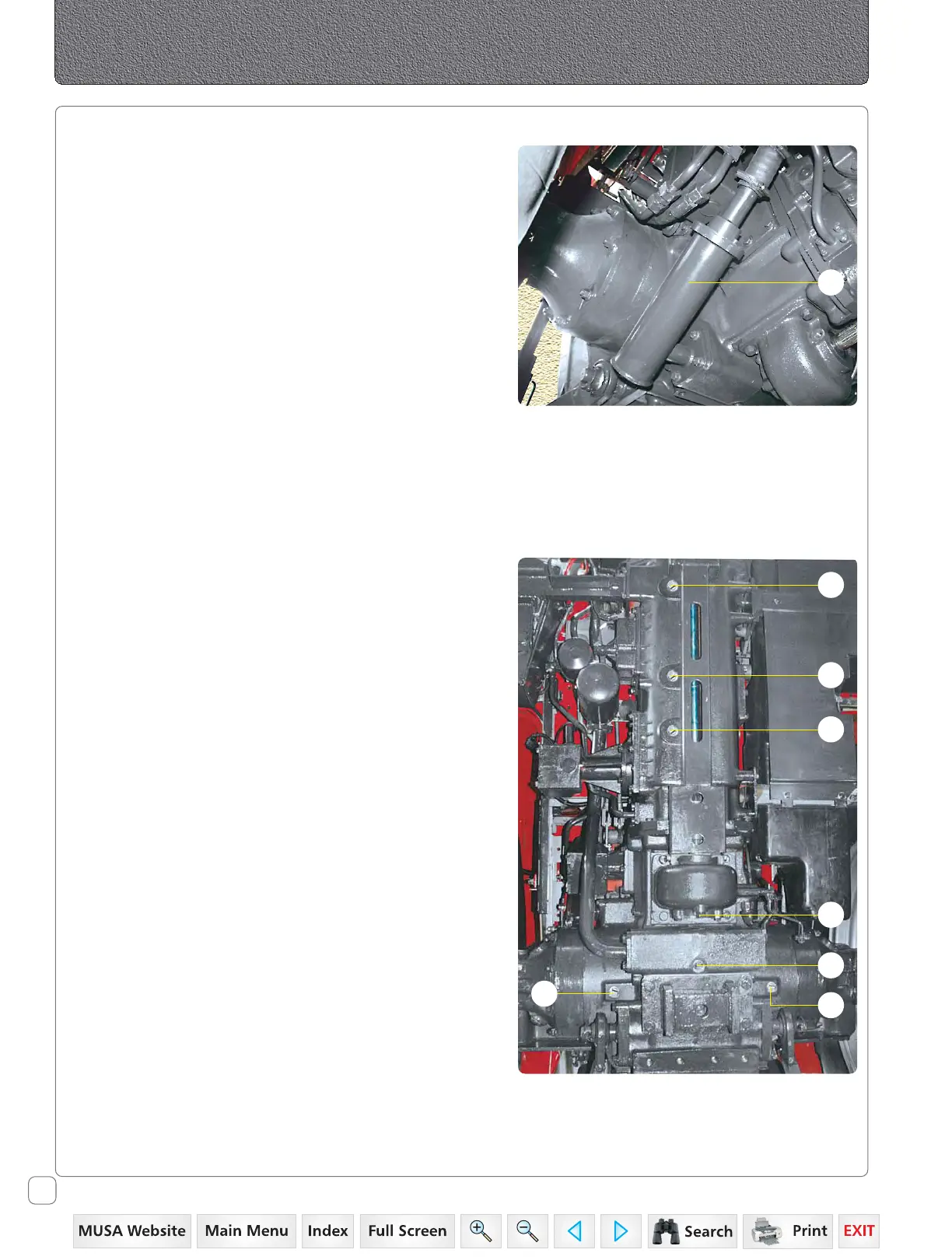

Clean the suction strainer during every oil change. The
Suction strainer (A) is located on R.H.Side of rear housing as
indicated in the given figure.
For Service / Replacement of strainer, contact your Mahindra
Dealer.
Transmission Oil Drain
Six drain plugs (C to H) are provided on the transmission for
draining transmission oil. The drain plug (E) located on the
dropbox is at the lowest position.
The plug (B) is provided to check for oil leakage from clutch
housing.
A
B
Bottom view
C
D
E
F
H
G
