64
60 Series 2WD/4WD, Model - 8560
I
H
Cooling System

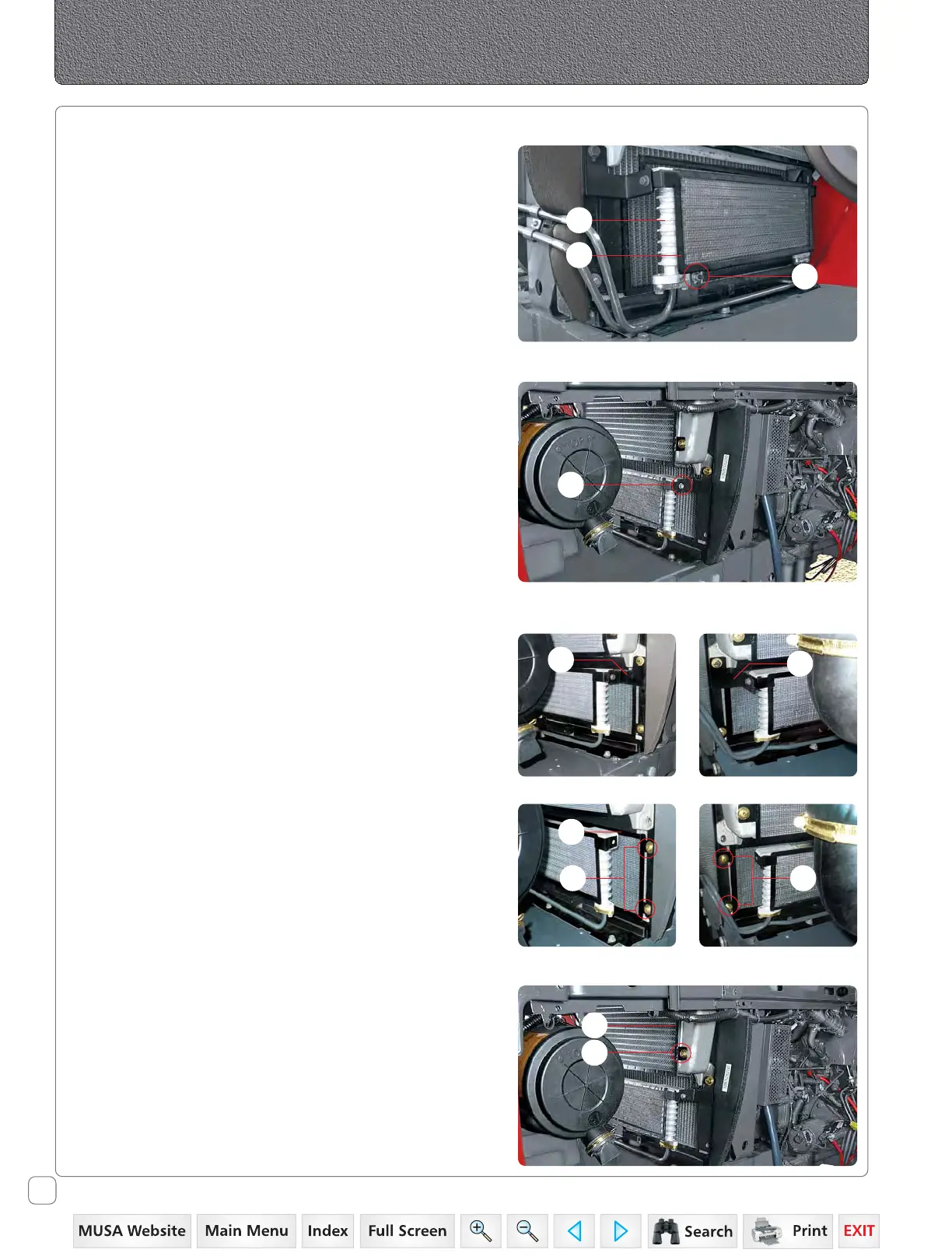

Trash Guard Transmission Oil Cooler
This is a single piece construction. This can be easily
removed for cleaning as follows:
1. Loosen nut (C) and bolts (D) to free trash guard (B) from
both sides.
2. Remove the trash guard (B) and clean it throughly.
Reverse procedure of removal for assembly.
Transmission Oil Cooler
Transmission Oil Cooler (A) is fitted in front of the radiator
and just below the intercooler. It helps in cooling the
transmission oil to have better performance.
A
C
B
D
Trash Guard Radiator
To clean trash guard, open the hood, remove both side
panels.
Then remove transmission oil cooler mounting brackets (E)
from both sides.
Loosen required mounting hardwares (F) of trash guard (G)
of radiator.
Take out trash guard from LH side of Engine.
Clean it thoroughly.
Reassemble the trash guard after cleaning.
Trash Guard Intercooler
Further, to take out trash guard (H) of intercooler, remove
required mounting hardwares (I) and take out trash guard.
Clean it thoroughly.
Reassemble the trash guard after cleaning.
E
E
G
F F
