60 Series 2WD/4WD, Model - 8560
Three Point Linkage

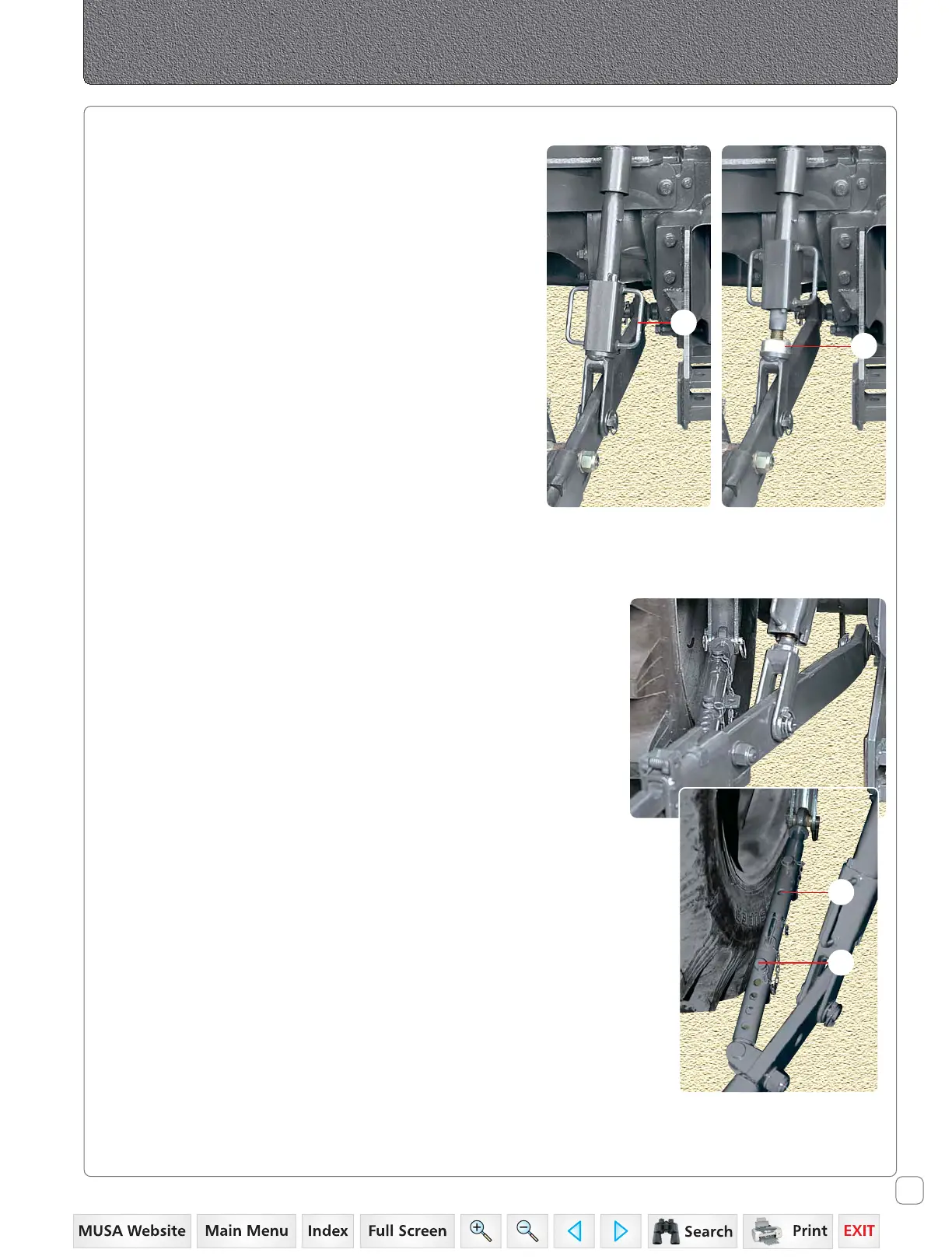

Adjustable Lift Rods
Use turn handle (A) on the adjustable lift rod to raise or
lower the Telescopic Lower Link for side-to-side leveling of
implement with respect to ground.
1. Raise lift rod turn handle (A) out of locking tab (B).
2. Rotate turn handle (A) clockwise to raise the lower link
or anticlockwise for lowering.
3. After adjustment, make sure to engage handle (A) with
locking tab (B). Always transport the implement with
turn handle in this position.
Lateral Stabilizers
These are provided for adjustment of width between two
lower links according to varying implement spans.
These enable to keep the implement in either FIXED or
FLOATING position.
Placing the locating pin in (C) position shall keep the
stabilizer and implement in “Fixed” position.
Placing the locating pin in (D) position shall keep the
stabilizer and implement in “Float” position.
We recommend to use the fixed position while transporting
the implement.
Locked Unlocked
B
A
C
D
