Mahindra 60 Series User Manual

49
60 Series 2WD/4WD, Model - 8560
Attachments

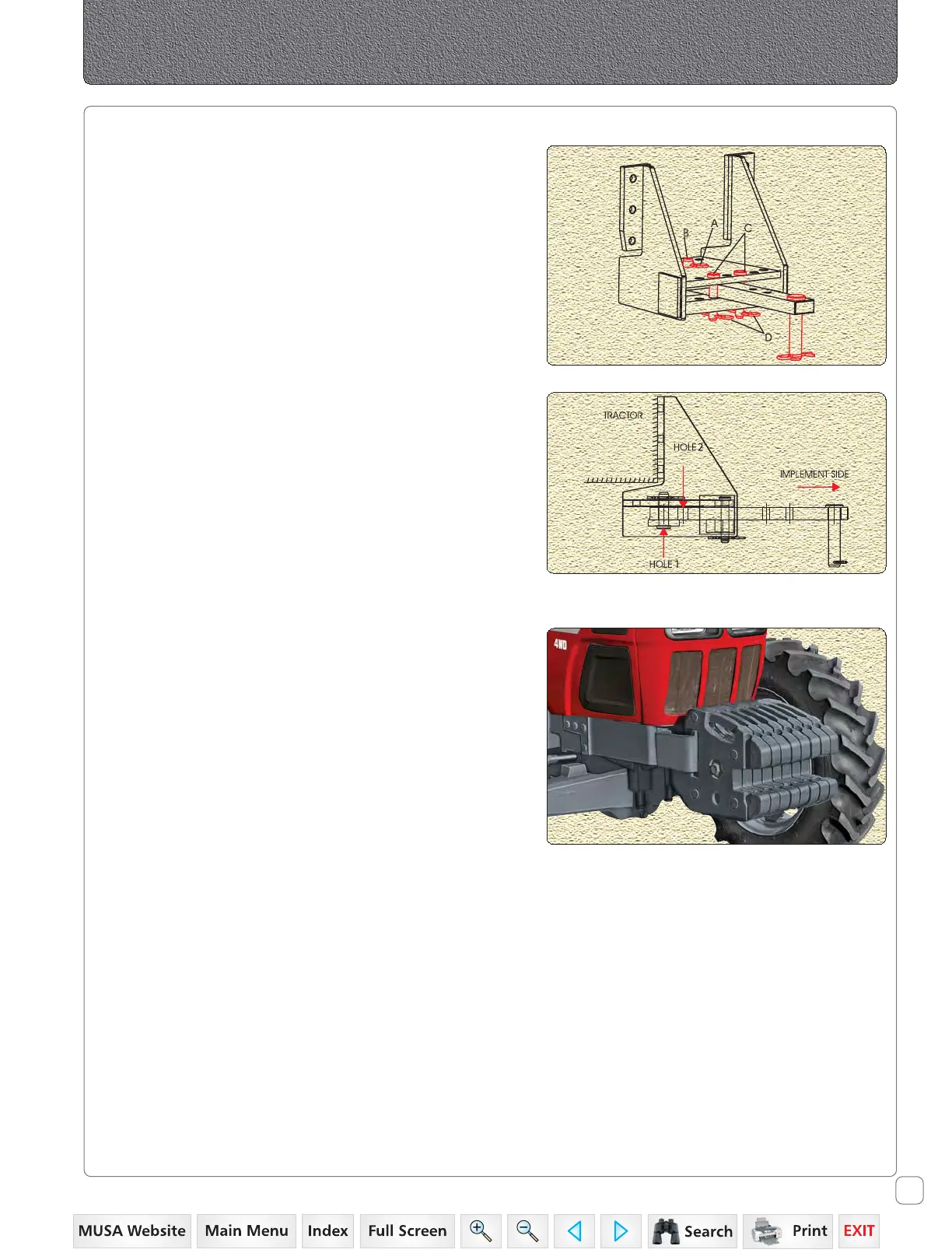

Attaching PTO driven Implement
1. Turn Key to “OFF” position.
2. Disengage the PTO lever.
3. Position the drawbar according to the requirement of
implement and drive line.
NOTE : There are two holes at the front of drawbar.
For drawn PTO driven implements, lock the drawbar pin in
hole (1) for proper 16 inch distance from end of PTO shaft
end and implement / attachment pin hole.
For maximum traction and efficiency while pulling a trailer,
lock the drawbar pin in Hole (2) for 14 inch distance from
end of PTO shaft end and implement/ attachment pin hole.
4. Attach implement to tractor before connecting PTO
driveline. Raise Hitch upwards if it is not to be used.
5. Rotate PTO shield upward for clearance.
6. With the engine still OFF, turn the shaft slightly by hand
if necessary to line up splines. Connect driveline to PTO
shaft. Pull out on shaft to be sure drive line is locked to
PTO shaft.
7. Place PTO shield in downward position.
Jerrycan Weights
To obtain desired level of traction and stability, these
weights are provided as optional fitment. The pin (E) is used
for towing purpose.
With loader application on the tractor, these weights are to
be removed. However the weight mounting bracket shall
not be removed and the pin (E) with this bracket can be
used for towing purpose.
If situation demands, the weights can be removed in pair :
1. Remove nut (A) and washer (B) from of threaded rod (C).
2. Remove weight (D) from both ends of the threaded rod (C).
3. Refit washer (B) and tighten nut (A) on threaded rod (C).
For procuring "Jerrycan Weights" if required contact your
Mahindra Dealer.
Wheel Weights (Optional fitment)
The drawbar pull of the tractor can be increased by the addition of weight to the driving wheels, either by
adding cast iron wheel weights or by use of liquid in the tires. Should the tractor tires wear excessively due to
wheel slippage, increase the traction by adding weight to the rear wheels.
Two nos cast iron rear wheel weights are provided as a standard fitment on each wheel.
If increased drawbar pull is required to suit different applications and conditions, only experience can indicate
the correct amount of extra weight required, it may be sometimes necessary to use both cast iron wheel weights
and liquid ballast.
For procuring additional weights if required contact your Mahindra dealer.
