Driving modes and rigging for on-road driving
6.6 Installing/removing the outrigger beams
6 - 54 3 302 709 en Operating manual
GMK5150L
12.01.2018

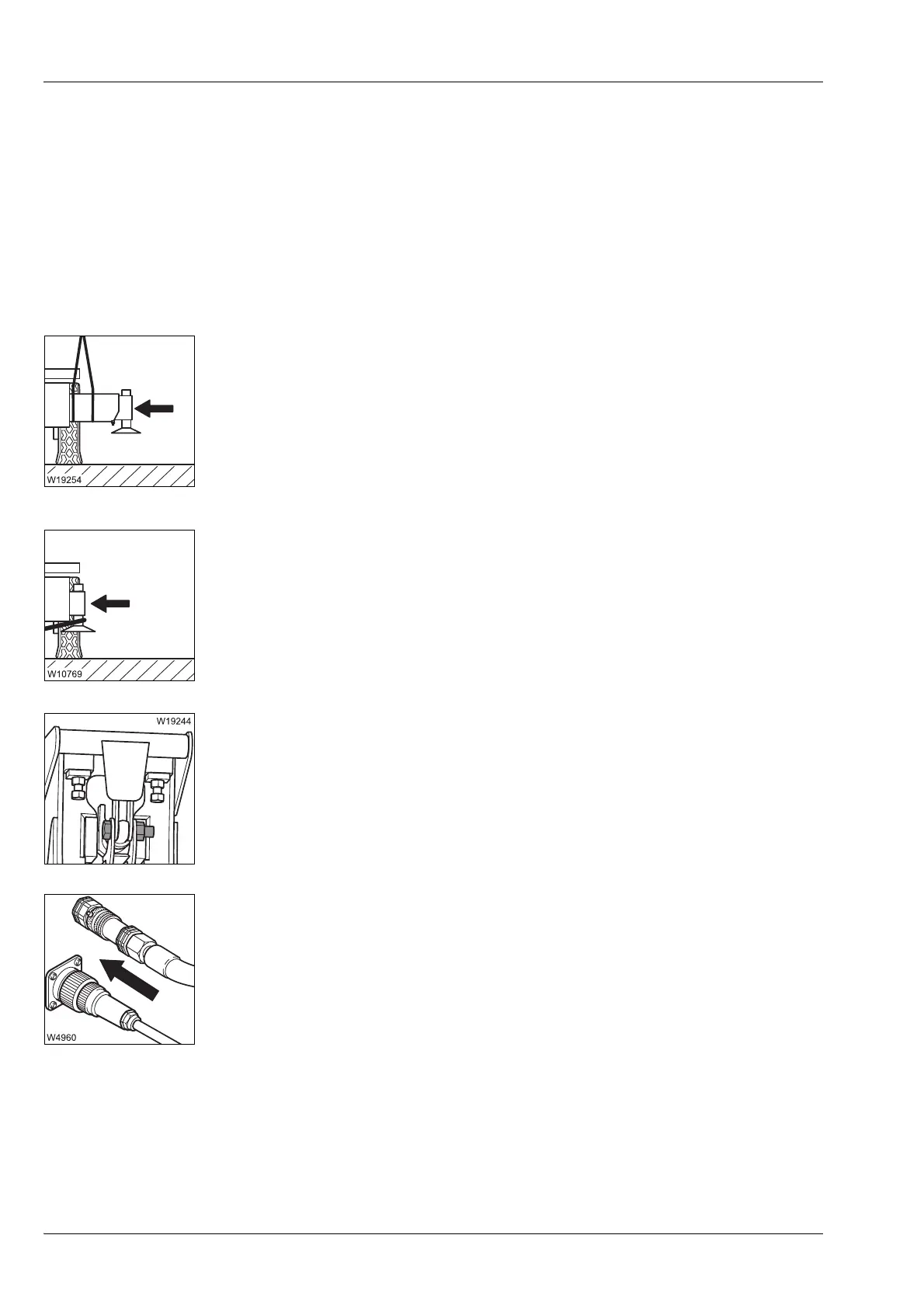

6.6.2 CHECKLIST: Installing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. Preparing the truck crane;
à p. 6 - 57.
2. – Remove the connection elements from the outrigger box.
– Sling the outrigger beams at their centre of gravity.
– Lift the outrigger beams into the outrigger boxes and remove the
lifting gear.
à Inserting the outrigger beam, p. 6 - 66
3. Sling the outrigger beams and pull into the outrigger boxes until the
connection points align;
à p. 6 - 66.
4. Establish the connection to the support box;
à p. 6 - 64.
5. – Establishing hydraulic connections;
à p. 6 - 60.
– Establishing the electrical connection if necessary;
à p. 6 - 61.
