Driving modes and rigging for on-road driving
6.6 Installing/removing the outrigger beams
Operating manual 3 302 709 en 6 - 61
GMK5150L
12.01.2018
6.6.8 Disconnecting/establishing the electrical connection
The electrical connection is only present on truck cranes equipped with an
outrigger pressure display or outrigger span monitoring system.

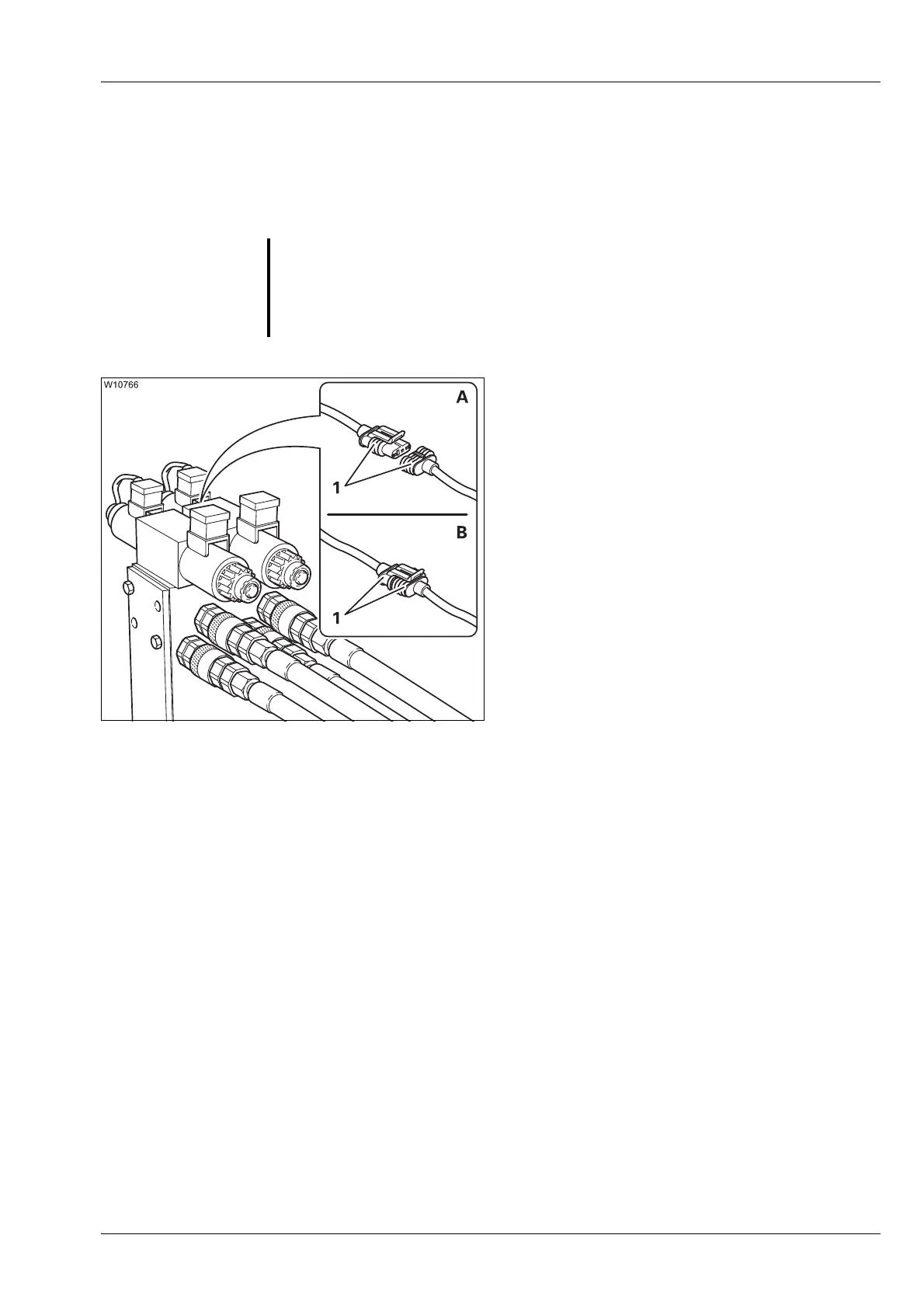

(A) – Disconnecting the connection
• Pull the plugs (1) apart. Protect the plugs
against dirt and moisture.
(B) – Establishing the connection
• Connect the plugs (1) together.
• Protect the separating points against dirt
and moisture.
H
Some error messages can occur after disconnecting the electrical connec-
tions;
à Note on error messages with removed outrigger beams, p. 6 - 68.
S
Risk of malfunctions in the electronic system!
Always turn off the ignition before you disconnect or establish the electrical
connection. This prevents malfunctions and corresponding error messages
in the subsequent crane operation.
