Manitowoc GROVE GMK5150L User Manual

Driving modes and rigging for on-road driving
6.6 Installing/removing the outrigger beams
Operating manual 3 302 709 en 6 - 67
GMK5150L
12.01.2018

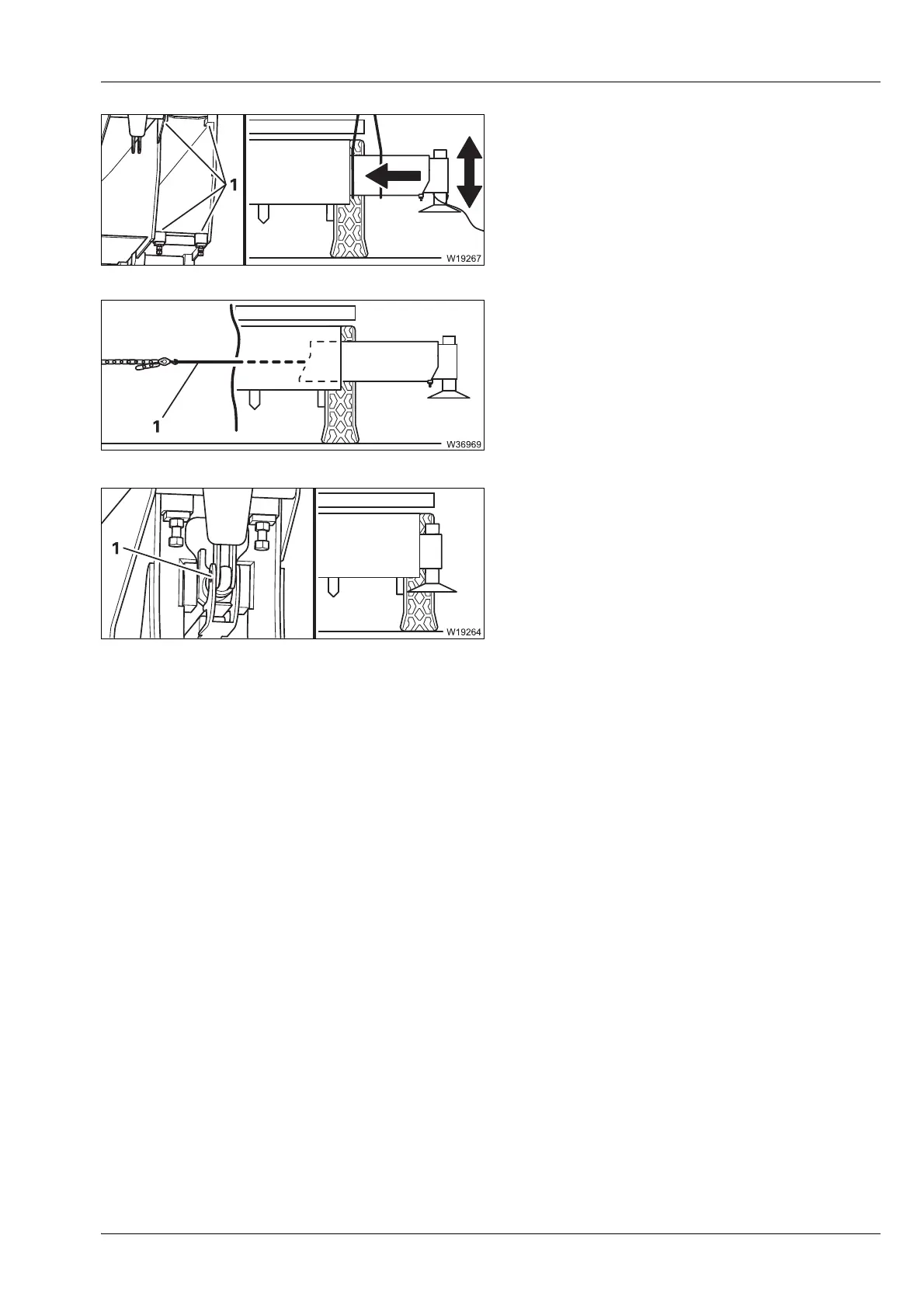

• Lift the outrigger beam as far as possible
into the outrigger box.
Correct the height so that it does not remain
hanging on the edges (1).
• Remove the lifting gear from the centre of
gravity.
• Fasten a chain hoist to the lifting gear (1).
• Pull the outrigger beam in so far until the
connecting points (1) align.
• Remove the chain hoist and lifting gear.
