Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
9 - 166 Operating manual
GMK5150L
Control panels
H
The information in this section is based on the steering direction setting
Steering wheel.

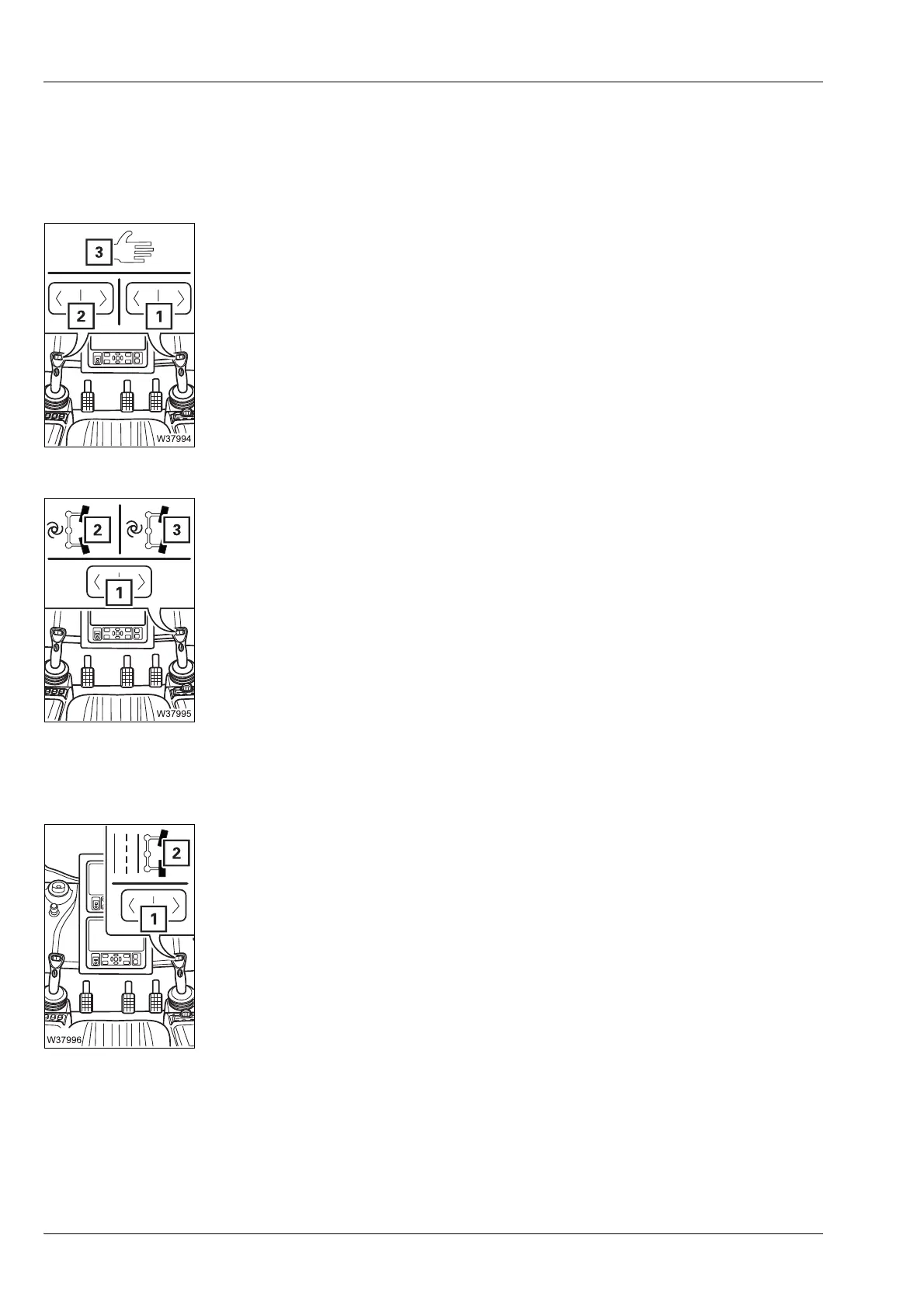

Steering with separate steering – manual
The (3) symbol is displayed
1. Steer 1st and 2nd axle lines with the button (1).
Press and hold button (2)
Steering with separate steering – automatic driving around corners/crab
travel mode
The symbol (2) or (3) is displayed.
Press and hold button (1)
Steering in normal steering mode
The (2) symbol is displayed
1. Steer 1st and 2nd axle lines with the button (1).
– To the left: 3. and 5th axle lines – turn to the left
– To the right: 3. and 5th axle lines – turn to the right
à p. 13 - 26
– To the left: 1. and 3rd axle lines – turn to the left
3. up to 5th axle lines – the matching steering angle for
steering mode
– To the right: 1. and 3rd axle lines – turn to the right
3. up to 5th axle lines – the matching steering angle for
steering mode
à p. 13 - 25
– To the left: 1. and 3rd axle lines – turn to the left
3. up to 5th axle lines – the matching steering angle for
steering mode
– To the right: 1. and 3rd axle lines – turn to the right
3. up to 5th axle lines – the matching steering angle for
steering mode
à p. 13 - 27
