Crane operation
11.4 Operation of the rated capacity limiter
11 - 66 3 302 709 en Operating manual
GMK5150L
12.01.2018
In emergencies During this type of override, the complete shutdown of the RCL is cancelled
and no monitoring takes place.
Cancelling a shutdown

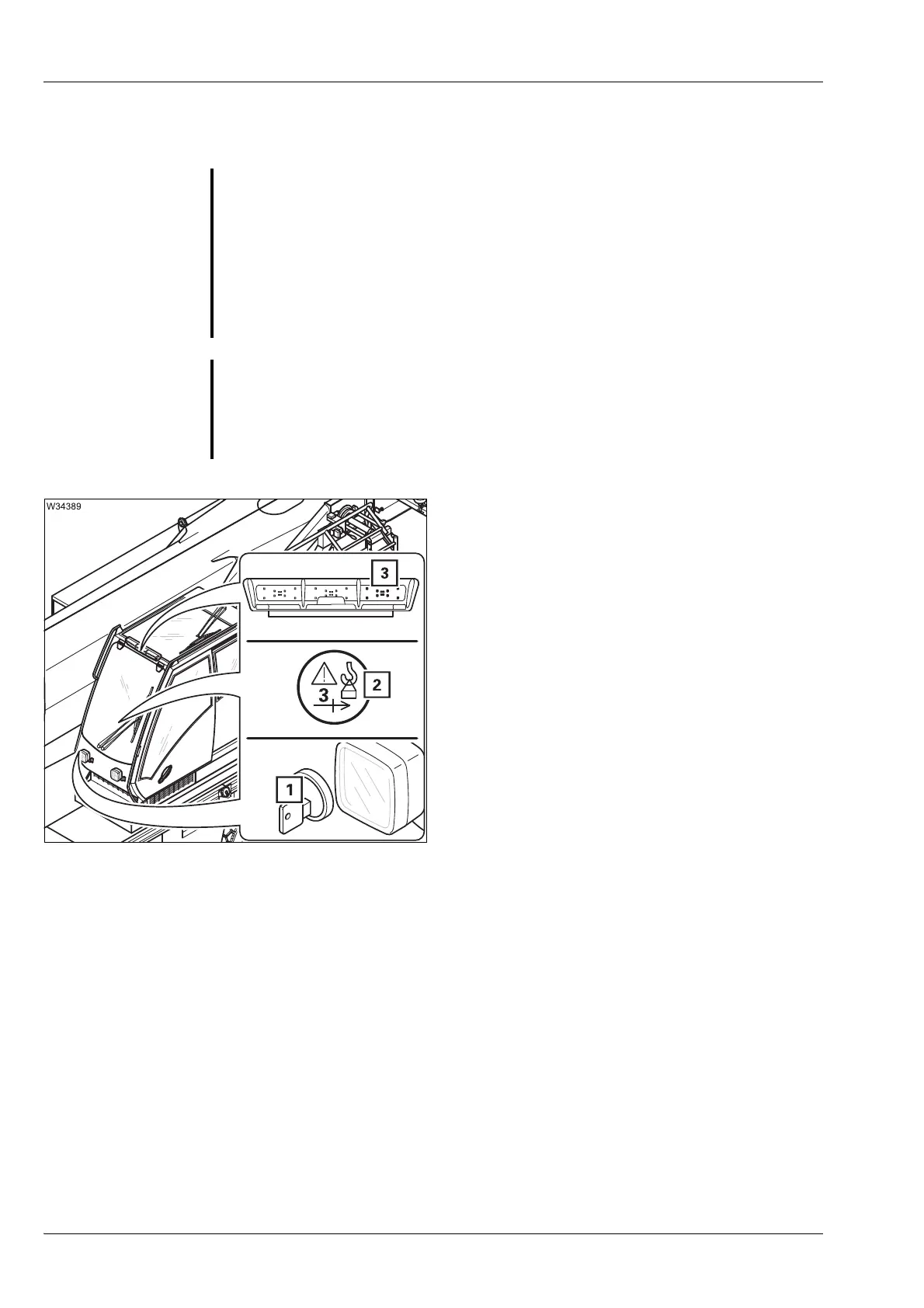

• Insert the key into the key-operated
switch (1).
• Turn the key to the left or right once.
The status display (3) will flash red.
The information display (2) appears.
– All crane movements are enabled
for 30 minutes.
– The power unit speeds are reduced
to 15%.
– At a degree of utilisation over 110%
the warning signal will sound.
Cancelling the override
The override will be cancelled when you:
– Switch off the ignition
– Press the key-operated switch again.
The override will automatically be cancelled 30 minutes after the
key-operated switch has been pressed.
G
Risk of accidents due to overridden or faulty RCL
It is not permitted to work with an overridden or faulty RCL.
Set down the load immediately and stop operating the crane if the RCL is
faulty.
You may only override the RCL if it becomes absolutely necessary in the
event of an emergency. This is to put the truck crane into a safe state in the
event of a malfunction. In this case, do not perform any movements that
would increase the load moment.
S
Risk of accidents due to unintentional override
The key must not remain in the key-operated switch while the crane is
operating.
This prevents the RCL being overridden unintentionally.
