Manitowoc GROVE GMK5150L User Manual

Rigging work
12.8 Outrigger operation
Operating manual 3 302 709 en 12 - 47
GMK5150L
12.01.2018

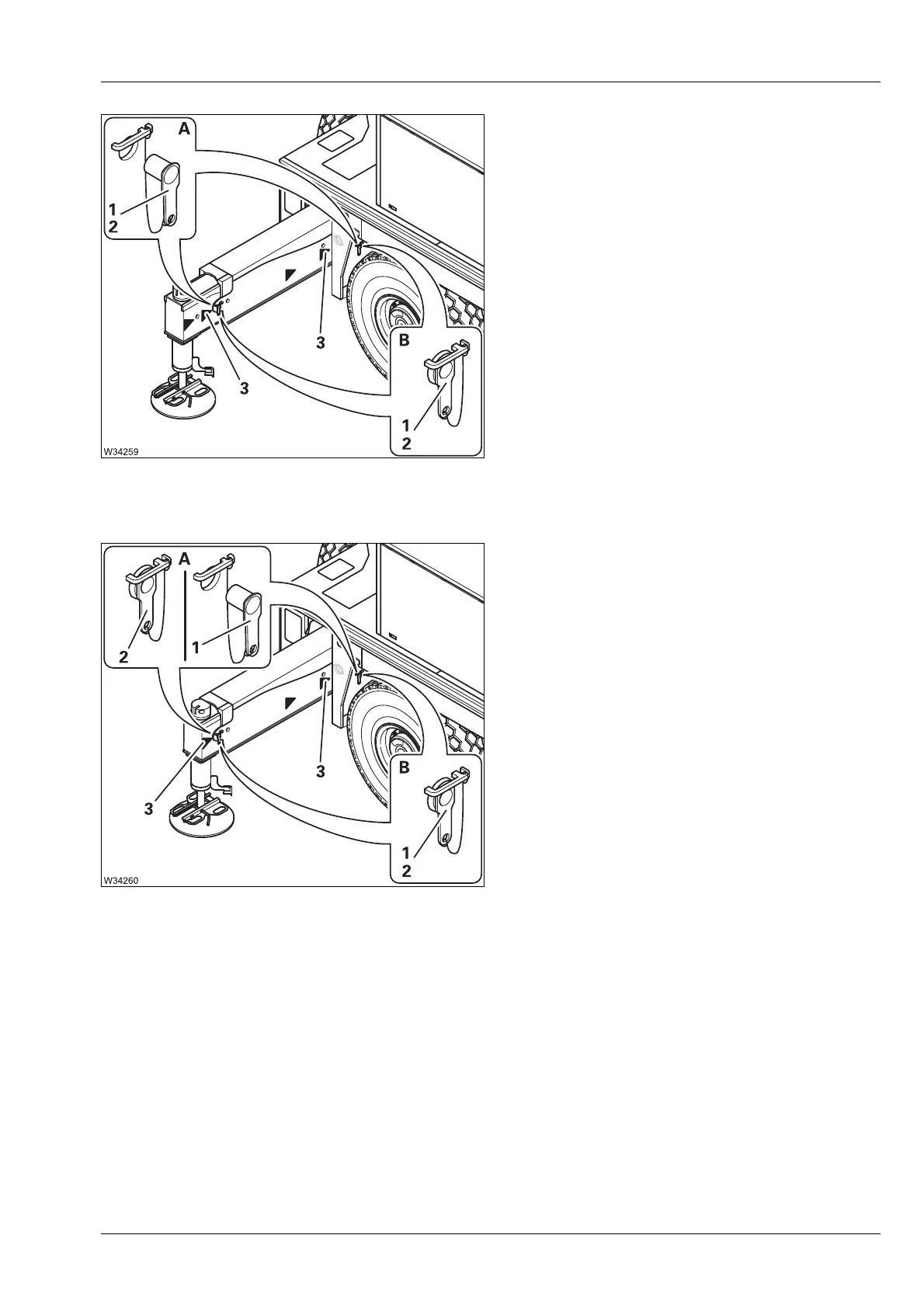

Outrigger span (83%)
Overall width 8.030 x 6.700 m (26.3 x 22.0 ft)
Individual width 8.030 x 3.350 m (26.3 x 11.0 ft)
(A) – Prerequisites
Pins (1) and (2) must be pulled out
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the
pins (1) and (2).
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
Outrigger span (66%)
Overall width 8.030 x 5.900 m (26.3 x 19.4 ft)
Individual width 8.030 x 2.950 m (26.3 x 9.7 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the pin (1).
• The pin (2) remains inserted.
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
