Rigging work
12.8 Outrigger operation
Operating manual 3 302 709 en 12 - 51
GMK5150L
12.01.2018

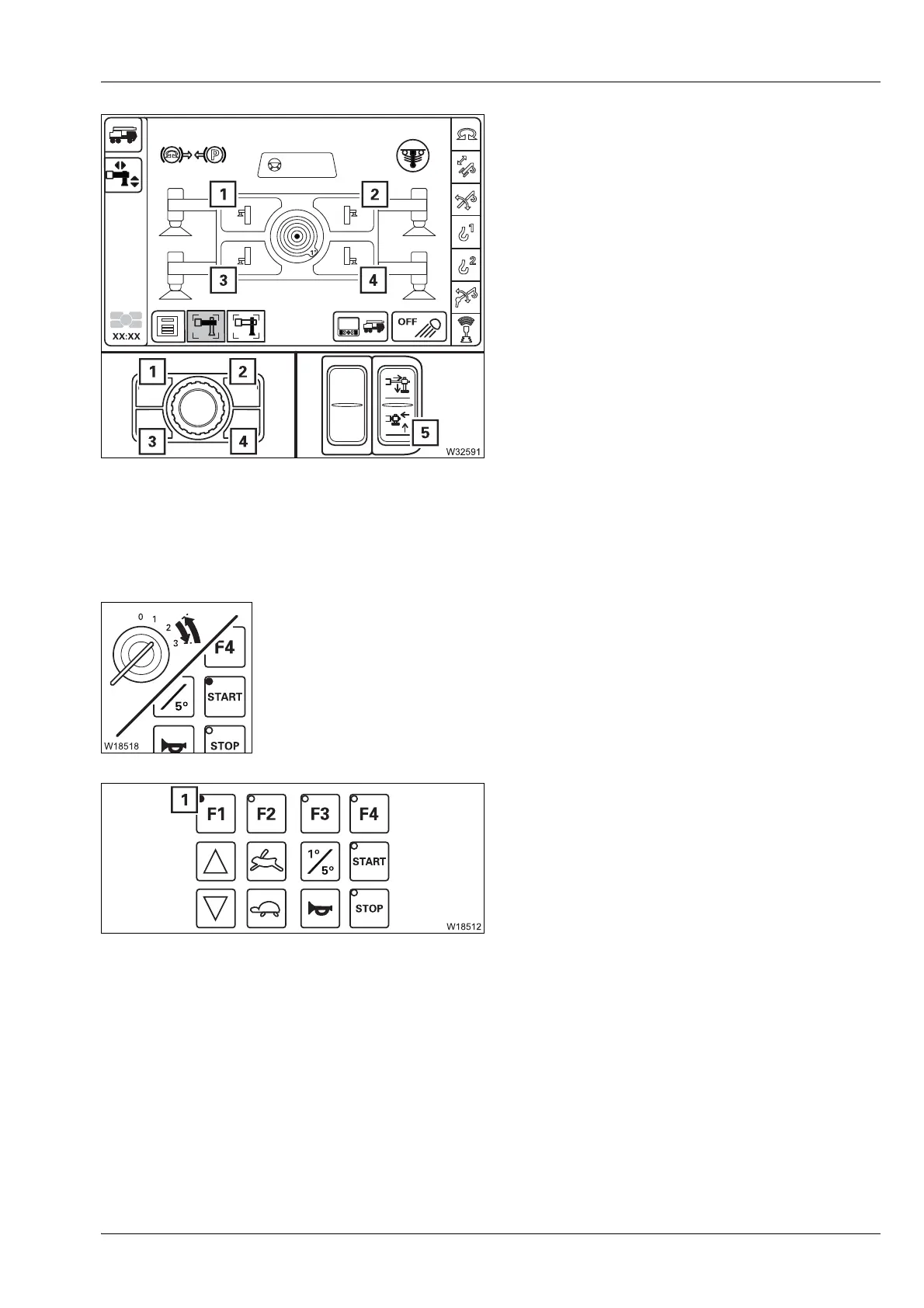

Retracting
• Press the button for the desired outrigger
beam.
• Press the button (5) in at the bottom –
the selected outrigger beam retracts.
From the
control units
Starting the engine
• Start the engine from the driver's cab; à p. 4 - 13.
You can also start the engine from the control units;
à p. 12 - 27.
Switching on the lighting
Only the lamp (1) lights up after opening
the door.
• Press any button.
The lights are switched on.
s
1 Front left
2 Front right
3 Rear left
4 Rear right
