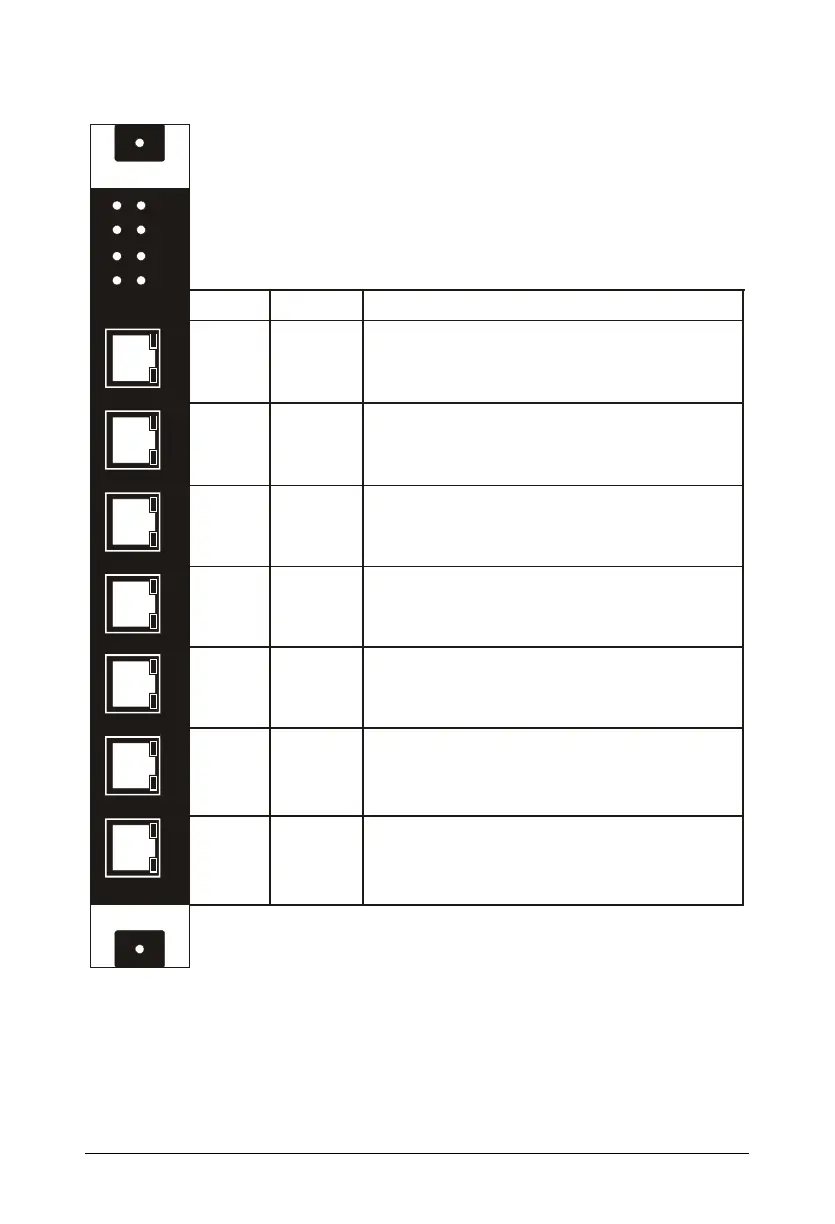

ETERNITY ME SLT8+MAG2+TWT2+LD2+ENM2 Card
1
2
3
4
5
6
7
Connector Port Type Colour
RJ45-1 SLT 01 Blue - (Blue & White)
SLT 02
SLT 03
SLT 04
RJ45-2 SLT 05
SLT 06
SLT 07
SLT 08
RJ45-3 LD 01
LD 02
NC
NC
RJ45-4 TWT 01
TWT 02
NC
NC
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
Blue - (Blue & White)
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
Blue - (Blue & White)
Orange - (Orange & White)
Blue - (Blue & White)
Orange - (Orange & White)
RJ45-5 MAG 01 Blue - (Blue & White)
MAG 02 Orange - (Orange & White)
NC
NC
RJ45-6 E&M 01 Gray (Open) - Gray & White (CCC1)
Green (M1 OUT) - Green & White (SB1)
Orange (RX1 SPCH B) - Orange & White (RX1 SPCH A)
Blue (SPCH1 A) - Blue & White (SPCH1 B)
Brown (BGND) - Brown & White (E1 IN)
RJ45-7 E&M 02 Gray (Open) - Gray & White (CCC2)
Green (M2 OUT) - Green & White (SB2)
Orange (RX2 SPCH B) - Orange & White (RX2 SPCH A)
Blue (SPCH2 A) - Blue & White (SPCH2 B)
Brown (BGND) - Brown & White (E2 IN)
L1
L5
L2
L6
L3
L7
L4
L8
