ETERNITY ME Magneto8

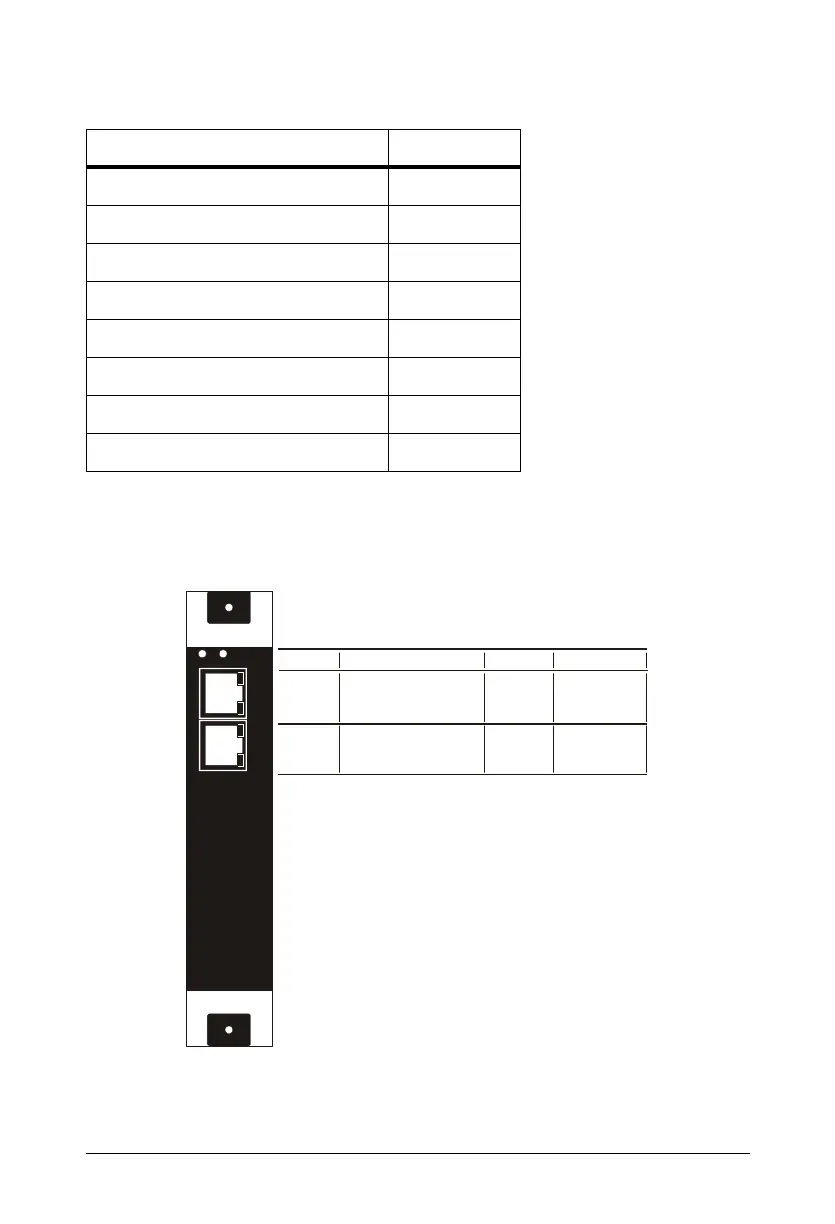

Cable Diagram for cards of ETERNITY-GE
ETERNITY GE SLT8 / ETERNITY GE ILC8
Port Color
Magneto1 (Pin01 Ring - Pin 19 Tip) Blue-White
Magneto2 (Pin02 Ring - Pin 20 Tip) Orange-White
Magneto3 (Pin03 Ring - Pin 21 Tip) Green-White
Magneto4 (Pin04 Ring - Pin 22 Tip) Brown-White
Magneto5 (Pin05 Ring - Pin 23 Tip) Grey-White
Magneto6 (Pin06 Ring - Pin 24 Tip) Blue-Red
Magneto7 (Pin07 Ring - Pin 25 Tip) Orange-Red
Magneto8 (Pin08 Ring - Pin 26 Tip) Green-Red
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) SLT 01
(Blue) Orange - (Orange & White) SLT 02
Green - (Green & White) SLT 03
Brown - (Brown & White) SLT 04
RJ45-2 Blue - (Blue & White) SLT 05
(Orange) Orange - (Orange & White) SLT 06
Green - (Green & White) SLT 07
Brown - (Brown & White) SLT 08
L1 L2
1
2
