Matrix ETERNITY GE User Manual

110 Matrix ETERNITY Quick Start

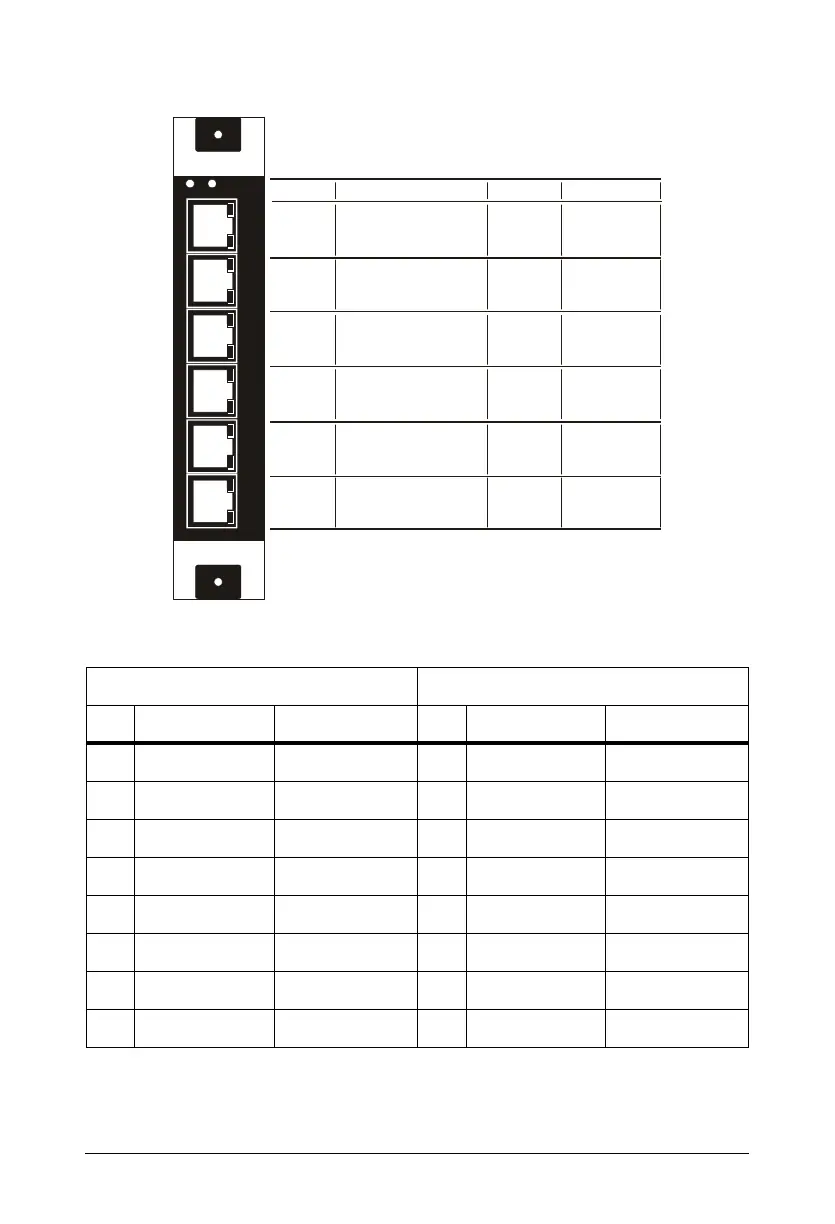

ETERNITY GE TWT4 + SLT16
ETERNITY GE BRI4
BRI Port in TE Mode BRI Port in NT Mode
Pin Color Connection Pin Color Connection
1 Orange-White Not connected 1 Orange-White Not connected
2 Orange Not connected 2 Orange Not connected
3 Green-White TxA 3 Green-White RxA
4Blue RxA 4Blue TxA
5 Blue-White RxB 5 Blue-White TxB
6 Green TxB 6 Green RxB
7 Brown-White V- 7 Brown-White V-
8Brown V+ 8Brown V+
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) SLT 01
(Blue) Orange - (Orange & White) SLT 02
Green - (Green & White) SLT 03
Brown - (Brown & White) SLT 04
RJ45-2 Blue - (Blue & White) SLT 05
(Orange) Orange - (Orange & White) SLT 06
Green - (Green & White) SLT 07
Brown - (Brown & White) SLT 08
RJ45-3 Blue - (Blue & White) SLT 09
(Green) Orange - (Orange & White) SLT 10
Green - (Green & White) SLT 11
Brown - (Brown & White) SLT 12
RJ45-4 Blue - (Blue & White) SLT 13
(Brown) Orange - (Orange & White) SLT 14
Green - (Green & White) SLT 15
Brown - (Brown & White) SLT 16
RJ45-5
Blue - (Blue & White) TWT 01
(Gray) Orange - (Orange & White) TWT 02
RJ45-6 Blue - (Blue & White) TWT 03
(Red) Orange - (Orange & White) TWT 04
L1 L2
1
2
3
4
5
6
