3 Rear locking lever (label I)
4 Front locking lever (label II)
E Pull locking handle 2 back and hold it.
E Pull load compartment floor 1 back by
approx. 10 cm.
E Release locking handle 2.
E Pull load compartment floor 1 back
until you hear it engage.
E First fold rear locking levers 3 (label I)
on both sides of the guide rail back.
E Then fold front locking levers 4
(label II) on both sides of the guide rail
up.
E Lift load compartment floor 1 up and
out of the securing rails on the vehicle
floor and remove it from the vehicle.
E Place load compartment floor 1 on a
level surface.
E Pull locking handle 2 back and hold it.
E Slide load compartment floor 1 to-
gether for storage purposes.
Fitting the load compartment floor
i It is easier to fit the load compartment with
the help of a second person.
Visit a qualified specialist workshop if you have
difficulty in fitting the load compartment floor.
On vehicles with rear doors, it is necessary to
unlock the rear doors before you extend the
load compartment floor (
e page 72).

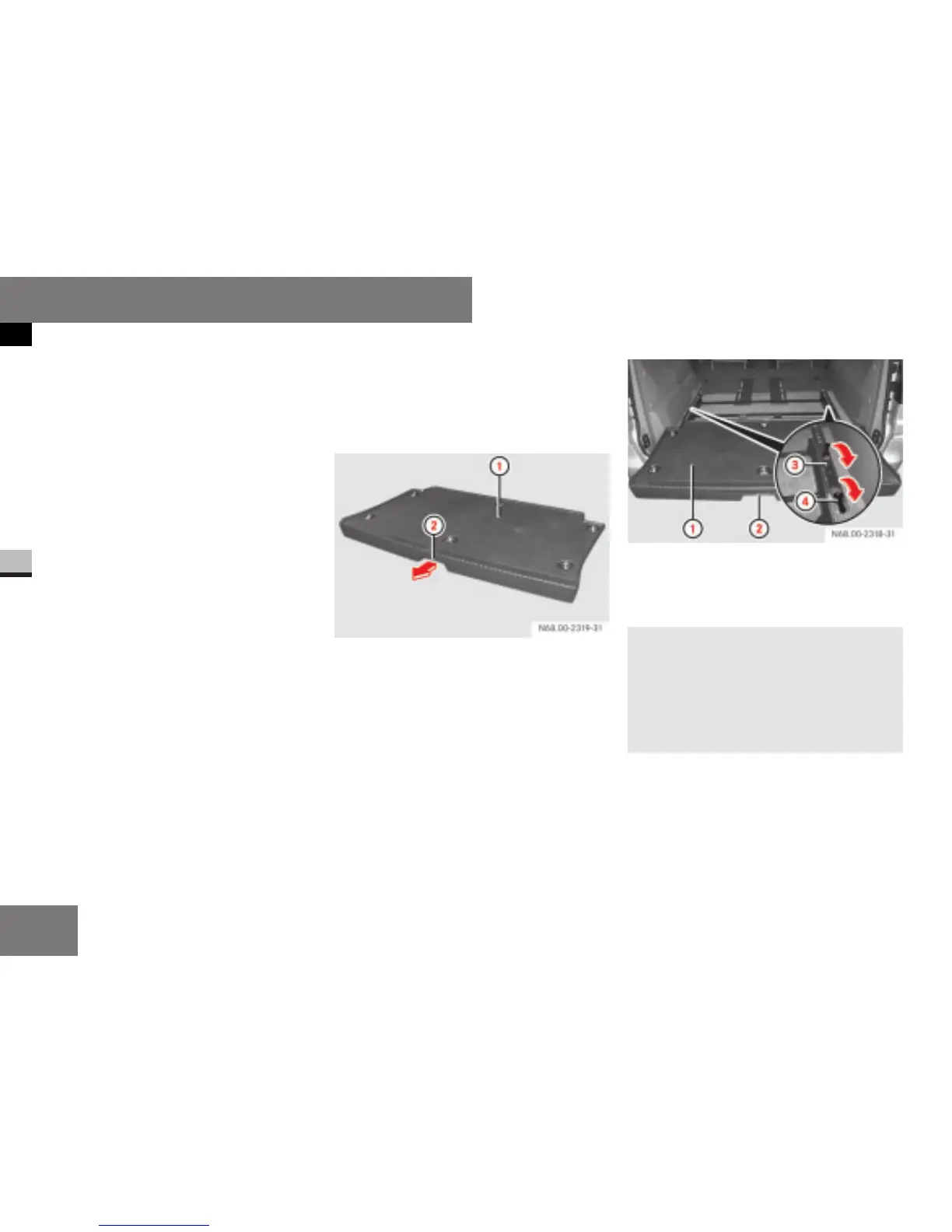

1 Load compartment floor
2 Locking handle
E Place load compartment floor 1 on a
level surface.
E Pull locking handle 2 back and hold it.
E Pull load compartment floor 1 for-
wards to you by approx. 10 cm.
E Release locking handle 2.
E Pull load compartment floor 1 out un-
til you hear it engage.
1 Load compartment floor
2 Locking handle
3 Rear locking lever (label I)
4 Front locking lever (label II)
G
Risk of injury
Do not hold the load compartment floor by
the outsides when you extend or retract it.
Do not grip the underside of the load com-
partment floor when you extend or retract
it. You could otherwise trap your hands.
E Fit the load compartment floor in the
rearmost position in the seat rail when
viewed in the direction of travel.
E Hold the load compartment floor hori-
zontal.
Operation
Transporting loads with the vehicle
228
