E Attach ratchet 4 to the auxiliary tool.
The AB/DOWN sticker must be visi-
ble.
E Turn the ratchet in the direction of the
arrow until you feel resistance.
The spare wheel is released.

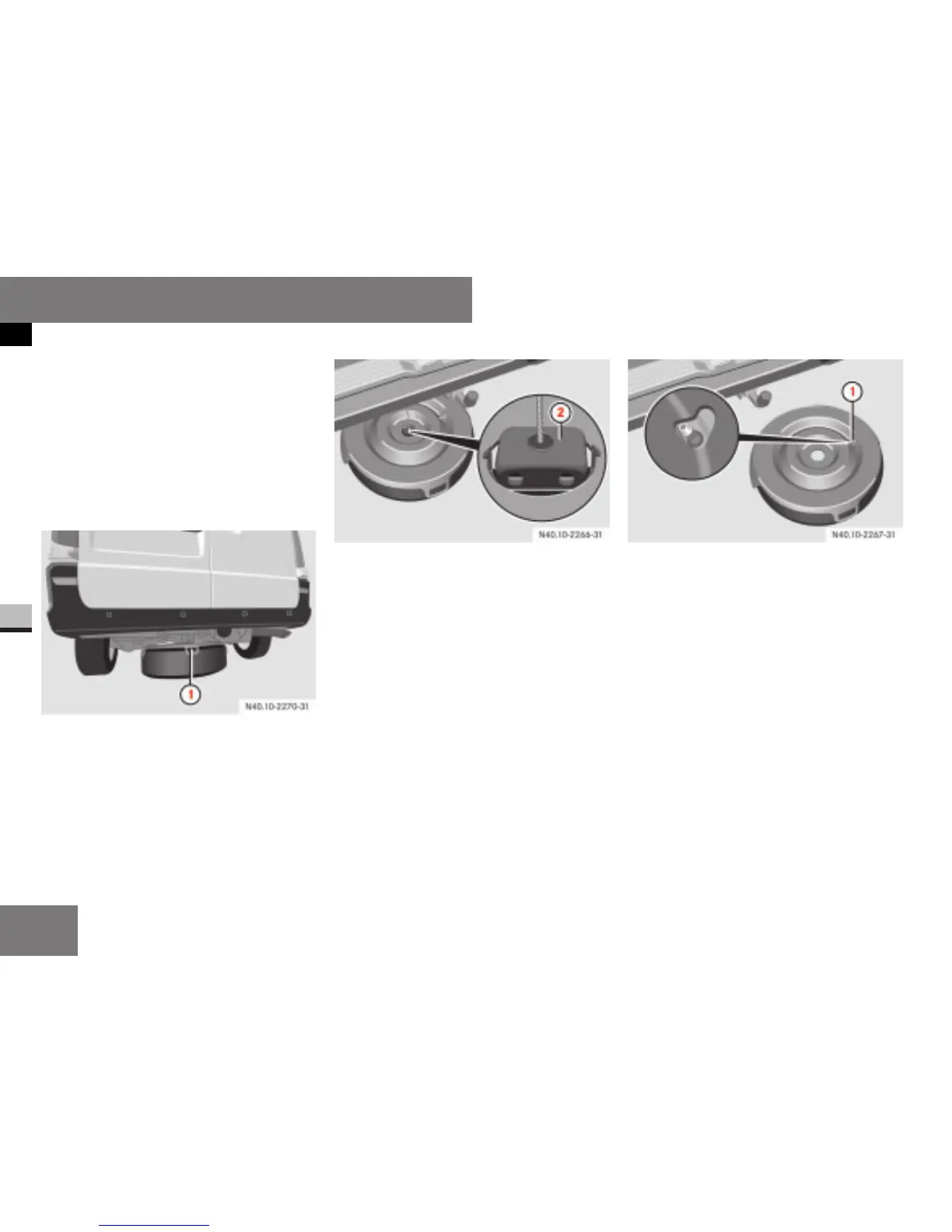

A cover tray with four handles is fitted to
the spare wheel.
1 Handles
E Pull forward the spare wheel using han-
dle
1 under the vehicle.
2 Wheel gripper
E Position wheel gripper 2 at an angle
so that you can push it through the
opening in the cover.
Wheel gripper
2 is released and drops
down.
E Remove the cover tray.
E To install: place the spare wheel with
wheel brace on the road surface facing
upwards.
i Alloy wheels cannot be transported under
the car. In this case, transport the wheel in the
load compartment and only raise the cover
tray.
1 Recess for the tyre valve
E Place the cover tray on the wheel so
that the valve is under recess
1.
E Press the cover tray onto the wheel
brace.
E Guide the wheel gripper (e page 268)
on the wire cable at an angle from
above through the opening in the wheel
brace.
E Pull up the wire cable until both lugs
(
e page 268) engage in the wheel
brace.
E Slide the spare wheel under the ve-
hicle.
! Do not pull the spare wheel under the ve-
hicle using the winch. The wheel gripper could
otherwise be unintentionally released.
Practical advice
Where will I find...?
268
5
