Transducers and Biopsy
12-14
12.2.2 Names of Parts
This section describes the parts and corresponding functions of each needle-guided bracket.
Here, we take a matched transducer as an example.
NGB-001, NGB-002, NGB-003, and NGB-005 (Metal/needle un-detachable)

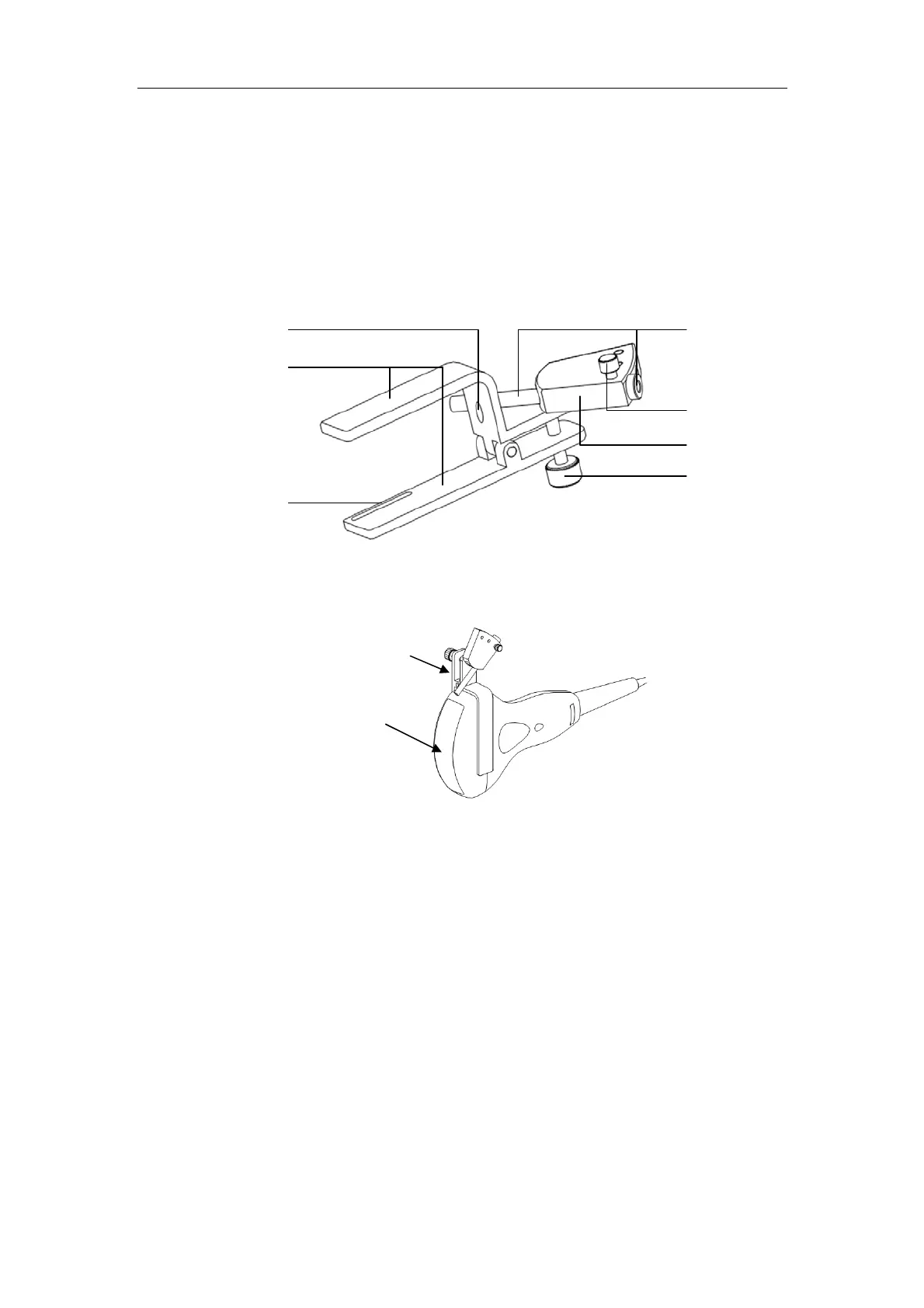

The structure of metal/needle un-detachable needle-guided bracket NGB-001, NGB-002,
NGB-003 and NGB-005 are similar to each other. The following figure shows the
structure with NGB-001 as an example.
1
2
3
4
5
6
7
1. Locating pit 2. Clamp 3. Locating groove 4. Needle guide and the hole
5. Clamping knob of the needle guide 6. Needle guide rack 7. Grip knob
1. Needle-guided bracket 2. Transducer
2
1
