Accutorr 7 Op
erator’s Ma
nual
2 - 11
2.5
Menu

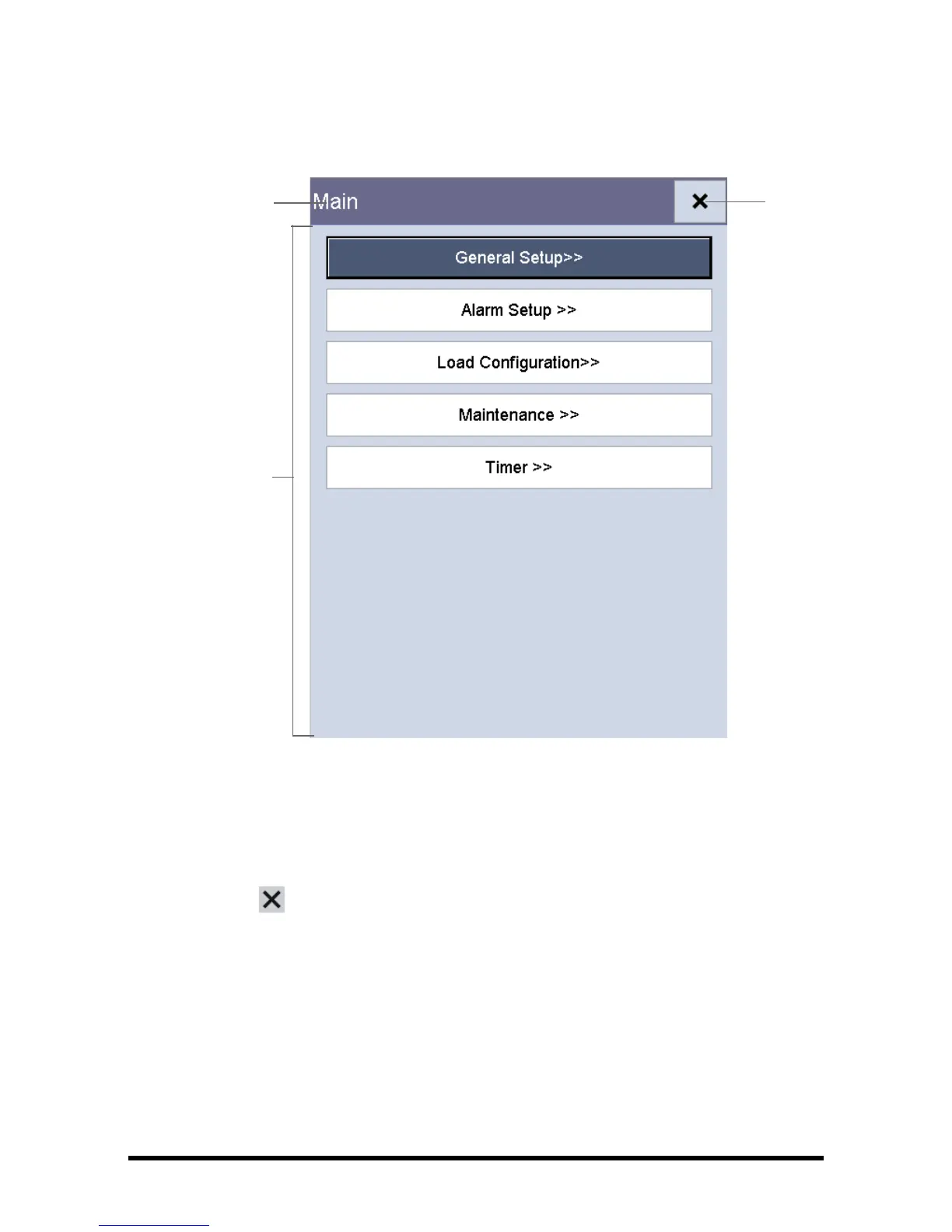

A menu in this monitor is usually composed of
:
1.
Heading: provide a title or description for the curr
ent menu.
2.
Main body
: d
isplays options, buttons,
prompt messages, et
c. A menu butt
on
follow
ed by
“>>”
opens a secondar
y window to reveal more options or
informat
ion.
3.
: select to exit the current menu.
1
3
2
32
34
Table of Contents
Default Chapter
9
Table of Contents
9
1 Safety
17
Safety Information
17
Warnings
17
Cautions
18
Notes
19
Equipment Symbols
20
2 The Basics
23
Intended Use
23
Applied Parts
23
Main Unit
24
Front View
24
Side View
26
Rear View
27
Bottom View
28
Main Screen
29
Menu
33
Operating Modes
34
Monitor Mode
34
Spot Check Mode
34
Standby Mode
35
Demo Mode
35
3 Basic Operation
37
Installation
37
Unpacking and Checking
38
Environmental Requirements
38
General Operation
39
Connection to AC Power
39
Using a Battery
39
Connecting Accessories
39
Turning On/Off Power
40
Turning Power on
40
Turning off the Monitor
40
Using Key, Knob, Touchscreen
41
Using Keys
41
Using the Knob
42
Using the Touchscreen
42
Using the Timer
42
Displaying the Timer
42
Controlling the Timer
42
Changing General Settings
43
Setting up a Monitor
43
Changing Language
43
Configuring the Timeout of Clinician ID
43
Showing/Hiding Patient Name
43
Adjusting Alarm Volume
44
Adjusting Key Volume
44
Adjusting the Screen Brightness
44
Setting Screen
44
Configuring the Timeout of Measured Value
45
Configuring Measurement Colors
45
Setting the Date and Time
45
Changing the Time Zone
45
Enabling Auto Daylight Savings Time
46
Configuring Unit
46
Configuring Printout
46
4 Patient Data Management
47
Admitting a Patient
47
Admitting a Patient by the Admit Patient Hardkey
47
Admitting a Patient by Barcode Scanner
48
Admitting a Patient from [Patient List]
50
Manually Input Patient Data
51
Setting the Monitor Location
52
Manually Save Patient Data
53
Reviewing Patient Data
53
Spot Check Trends
53
Continuous Trends
55
Graphic Trends
56
Scoring Review
57
Transferring Data from the Monitor to USB Drive
58
5 Managing Configurations
59
Overview
59
Accessing [Manage Configuration] Menu
59
Setting Default Configuration
60
Saving Current Settings
60
Deleting a Configuration
60
Transferring a Configuration
61
Loading a Configuration
61
Restoring the Latest Configuration Automatically
61
6 Alarms
63
Alarm Categories
63
Alarm Levels
64
Alarm Indicators
64
Alarm Lamp
64
Audible Alarm Tones
65
Alarm Messages
65
Flashing Numerics
66
Alarm Status Symbols
66
Setting Alarms
66
Selecting Alarm Properties
67
Changing the Alarm Volume
67
Setting the Minimum Alarm Volume
67
Setting the Interval between Alarm Sounds
67
Adjusting Alarm Limits Automatically
68
Pausing Alarms
70
Switching off Alarm Sound
71
Switching off [No CO2 Change Detected] Alarm
71
Resetting Alarms
72
Setting the Reminder Tone
73
Latching Alarms
73
Actions for Alarm Occurrence
74
Nurse Call
74
7 Monitoring Spo
77
Overview
77
Safety
78
Identifying Spo Module
79
Applying the Sensor
79
Changing Spo Settings
80
Accessing Spo Menu
80
Adjusting the Desat Alarm
80
Setting Spo Sensitivity
80
Changing Averaging Time
80
Monitoring Spo and NIBP Simultaneously
80
Sat-Seconds Alarm Management
81
Changing the Speed of Pleth Wave
82
Setting the Alarm Level for Spo Sensor off Alarm
82
Measurement Limitations
82
Masimo Information
82
Nellcor Information
83
8 Monitoring PR
85
Overview
85
PR Source
85
Pulse Tone
85
9 Monitoring NIBP
87
Overview
87
Safety
88
Measurement Limitations
88
NIBP Measurement Mode
89
Measuring NIBP
89
Preparing the Patient
89
Preparing to Measure NIBP
90
Starting NIBP Measurement
90
Stopping NIBP Measurement
91
Correcting the Measurement When Cuff Is Not at Heart Level
91
Understanding the NIBP Numerics
91
Setting NIBP
92
Setting Interval
92
Setting the Initial Cuff Inflation Pressure
92
Setting NIBP End Tone
92
Switching On/Off Measurement on Clock
93
Configuring a Custom Program
93
Setting NIBP Alarm Properties
93
Setting the Pressure Unit
94
Assisting Venous Puncture
94
Care and Cleaning of Reusable Cuffs
94
Reusable Cuffs with Bladders
94
Cleaning
94
Disinfection
95
Reusable Bladderless Cuffs
95
10 Monitoring Temp
97
Overview
97
Setting Temp
98
Preparation
98
Selecting Measuring Site
98
Taking a Temperature in Predictive Mode
99
Taking a Temperature in Monitor Mode
100
Disinfecting Temperature Probe
101
11 Monitoring CO
103
Overview
103
Safety
103
Measurement Limitations
104
CO Display
104
Automatic CO Module Zeroing
104
Measuring CO
105
Changing CO Settings
106
Changing CO Alarm Settings
106
Setting the "No CO2 Changes Detected" Alarm Delay
106
Setting the CO Waveform
107
Entering the Standby Mode
107
Setting the Auto Standby
107
Setting Humidity Compensation
108
Setting Gas Compensation
108
Automatic Barometric Pressure
108
Calibrating the CO Module
108
12 Clinical Scoring
109
Overview
109
MEWS (Modified Early Warning Score)
110
NEWS (National Early Warning Score)
110
Customizable Scoring
110
Entering the Calculation Screen
111
Scoring Screen
111
Score Tile
111
Calculating a Score
111
Clinical Scoring Screen
111
Score Tile in the Main Screen
111
Scoring Screen
112
Obtaining the Total Score
113
Unfreezing the Screen
114
Managing Scorings
115
Allowing Measured Values to be Edited
115
Importing Scoring
115
Selecting a Default Scoring
115
Deleting a Scoring
115
Loading a Scoring
116
13 Recording
117
Using a Recorder
117
Loading Paper
117
Setting the Recorder
118
Starting and Stopping Recordings
118
Reports
119
Real-Time Recording
119
Graphic Trend Recording
119
Continuous Trends Recording
119
Spot Check Trends Recording
120
Removing a Paper Jam
120
Cleaning the Recorder Printhead
120
14 Network
121
Network Connection
121
Selecting a Network Type
122
Setting the Wired Network
122
Setting the Wireless Network (Optional)
122
WLAN Test
123
Selecting WLAN Band and Channels
124
Setting up the Wireless Network (Optional)
124
Setting Data Send Method
125
DNS Setup
125
ADT Communication Setup
125
EMR Communication Setup
126
NTP Server Setup
126
Realtime Data Send Interval (for HL7 Only)
126
Alarm Server Settings (for HL7 Only)
126
Setting the Data Encryption Switch
127
Connecting the Monitor to the CMS
127
Setting the CMS
127
Selecting a CMS
127
Clearing the Selected CMS at Startup
128
Managing Certificates
128
Setting the Multicast Parameters
128
DIAP Communication Setup
128
Mldap
129
Setting MLDAP
129
Selecting Password for User Authentication
129
15 Battery
131
Overview
131
Charging a Battery
132
Replacing a Battery
132
Battery Guidelines
132
Battery Maintenance
133
Conditioning a Battery
133
Checking a Battery
134
Recycling a Battery
134
16 Care, Cleaning and Maintenance
137
Cleaning and Disinfection
137
Cleaning
138
Disinfecting
138
Sterilization
139
General Inspection
139
Maintenance and Testing Schedule
139
Checking Monitor Information
141
Visual Inspection
141
Power-On Test
142
Calibrating CO
142
Battery Check
143
Calibrating the Touchscreen
143
16.10 Formatting the Storage Card
144
17 Accessories
145
Spo Accessories
145
NIBP Accessories
147
Temp Accessories
148
CO Accessories
149
Others
149
A Product Specifications
151
Classifications
151
Environmental Specifications
151
Power Supply Specifications
152
Physical Specifications
153
Hardware Specifications
153
Leds
153
Audio Indicator
153
Monitor Interface Specifications
154
Outputs
154
Data Storage
154
Wireless Network (Optional)
154
Measurement Specifications
156
Spo
156
A.7.2 Pr
158
Nibp
159
Temp
161
B EMC and Radio Regulatory Compliance
165
Emc
165
Radio Regulatory Compliance
170
Parameter Configuration
173
Nibp
173
C Default Configurations
173
Spo
174
C.1.2 Spo
174
Temp
175
C.1.3 Pr
175
C.1.5 Co
176
General Configuration
177
Alarm
177
Review
177
Record
178
Others
178
User Maintenance Items
179
D Alarm Messages
181
Physiological Alarm Messages
181
Technical Alarm Messages
182
NIBP Alarm Messages
182
D.2.2 Spo2 Alarm Messages
185
Temperature Alarm Messages
187
CO Alarm Messages
188
Recorder Alarm Messages
190
Power Alarm Messages
191
System Alarm Messages
192
E Symbols and Abbreviations
193
Symbols
193
Abbreviations
195
F Anomalies
197
NIBP Smart Inflation Anomaly
197
