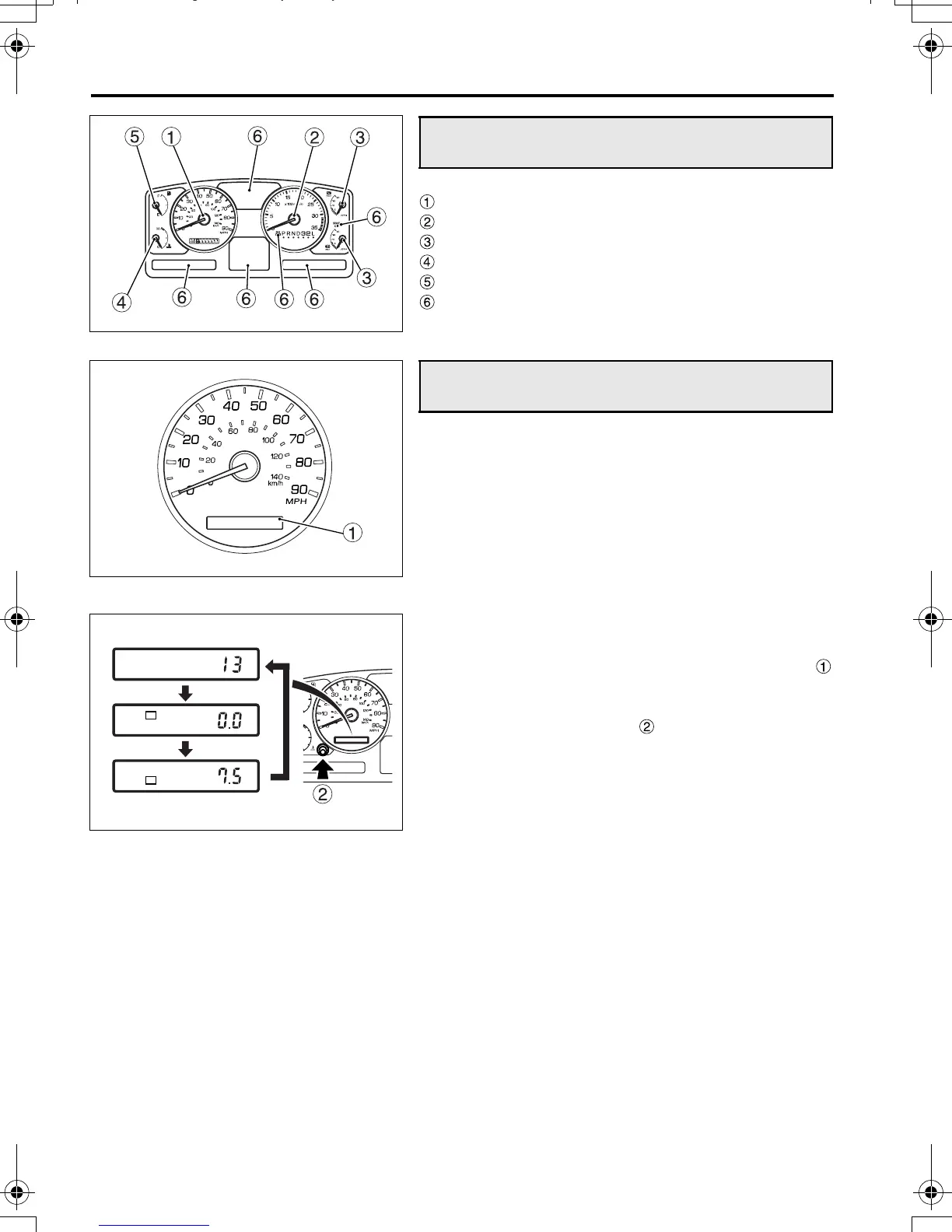

6-2 Instruments and warning lamps
Speedometer
Tachometer
Air pressure gauge
Water temperature gauge
Fuel gauge
Warning/indicator lamps
1 Speedometer
The speedometer indicates vehicle speed in MPH
and km/h.
The outer numbers denote MPH, and the inner
numbers denote km/h.
2 Odometer/tripmeter
With the starter switch in “ON” position, the meter
indicates ODO (odometer) or TRIP (trip meter)
reading.
• Each time the trip knob is pushed, the indica-
tion switches as shown in the illustration.
ODO (odometer): Indicates the total distance
covered by the vehicle in
miles.
TRIP (trip meter): Indicates the distance cov-
ered after the final resetting
of the meter in one-tenth
miles.
The trip meter has TRIP “A” and TRIP “B”, which
operates independently.
• The trip meter displayed can be zeroed by push-
ing the trip knob for about 1 seconds or longer.
Arrangement of instruments and
warning lamps
Speedometer
Z17293
Z17294
ODO
TRIP
TRIP
A
B
Z17804
FKFM.book Page 2 Wednesday, January 28, 2009 9:21 AM
