mycom J Series User Manual

2205B0JE-DA-J-N_2014.05.
2 Structure and Specifications of the Compressor
Screw Compressor J-series 2.3 Compressor Specifications
2-9
 Outer dimensions of the 170J and 220J-series (Motor Spacer)

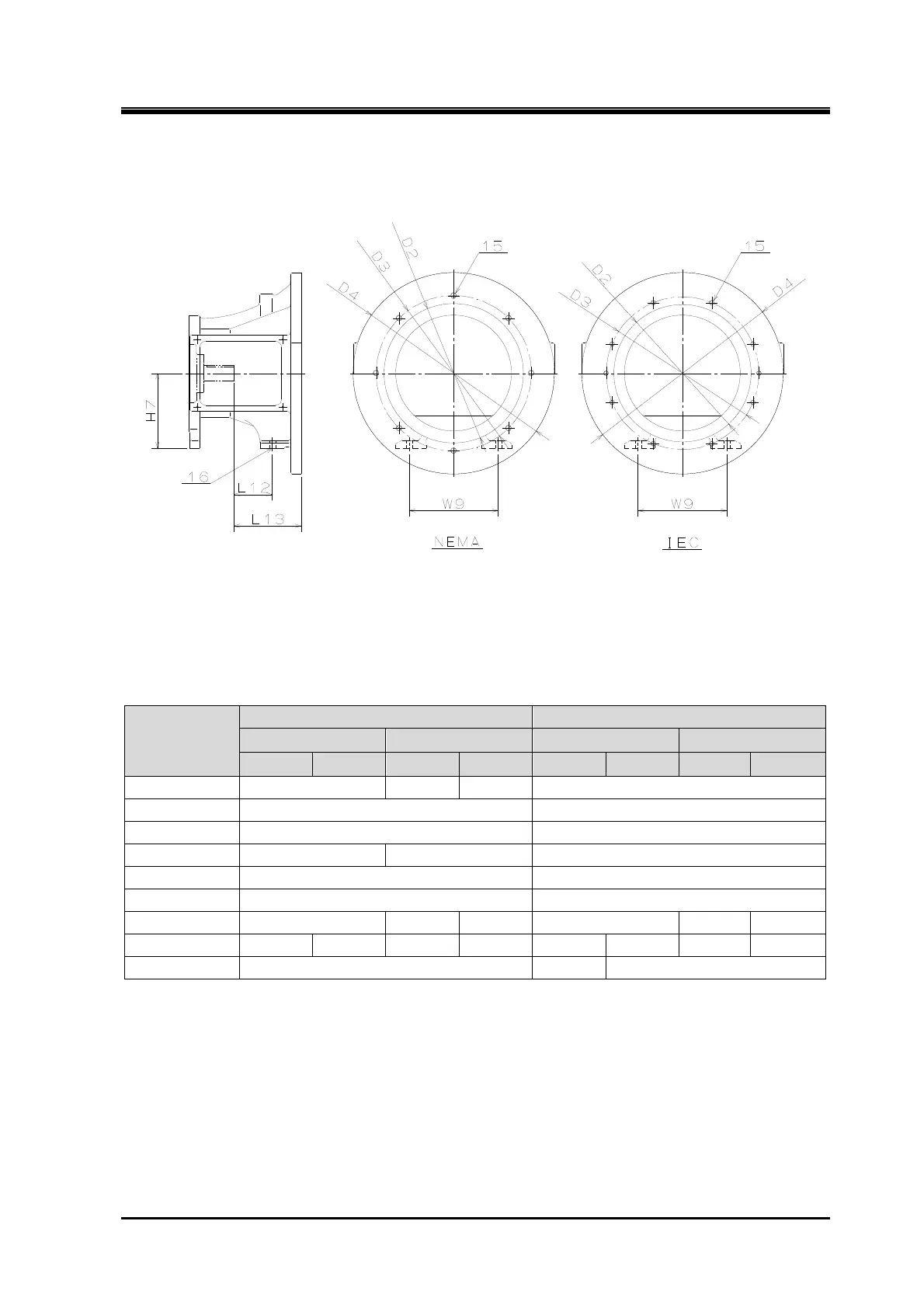

Figure 2-3 Outer Dimensions of the 170J and 220J-Series (Motor Spacer)
Table 2-6 170J and 220J-series Outer Dimensions Table (Motor Spacer）
Unit: mm
Item
170J 220J
NEMA IEC NEMA IEC
44*D 50*D FF-500 FF-600 44*D 50*D FF-600 FF-740
15 8-M20 8-M16 8-M20 8-M20
16 2-φ19 2-φ23
L12 126 140
L13 221 241 250
H7 245 300
W9 292 314
D2 457.2 450 550 457.2 550 680
D3 508 558.8 500 600 508 558.8 600 740
D4 660 558 810
