31
To mount the telephone set on the wall, use the
following procedure.

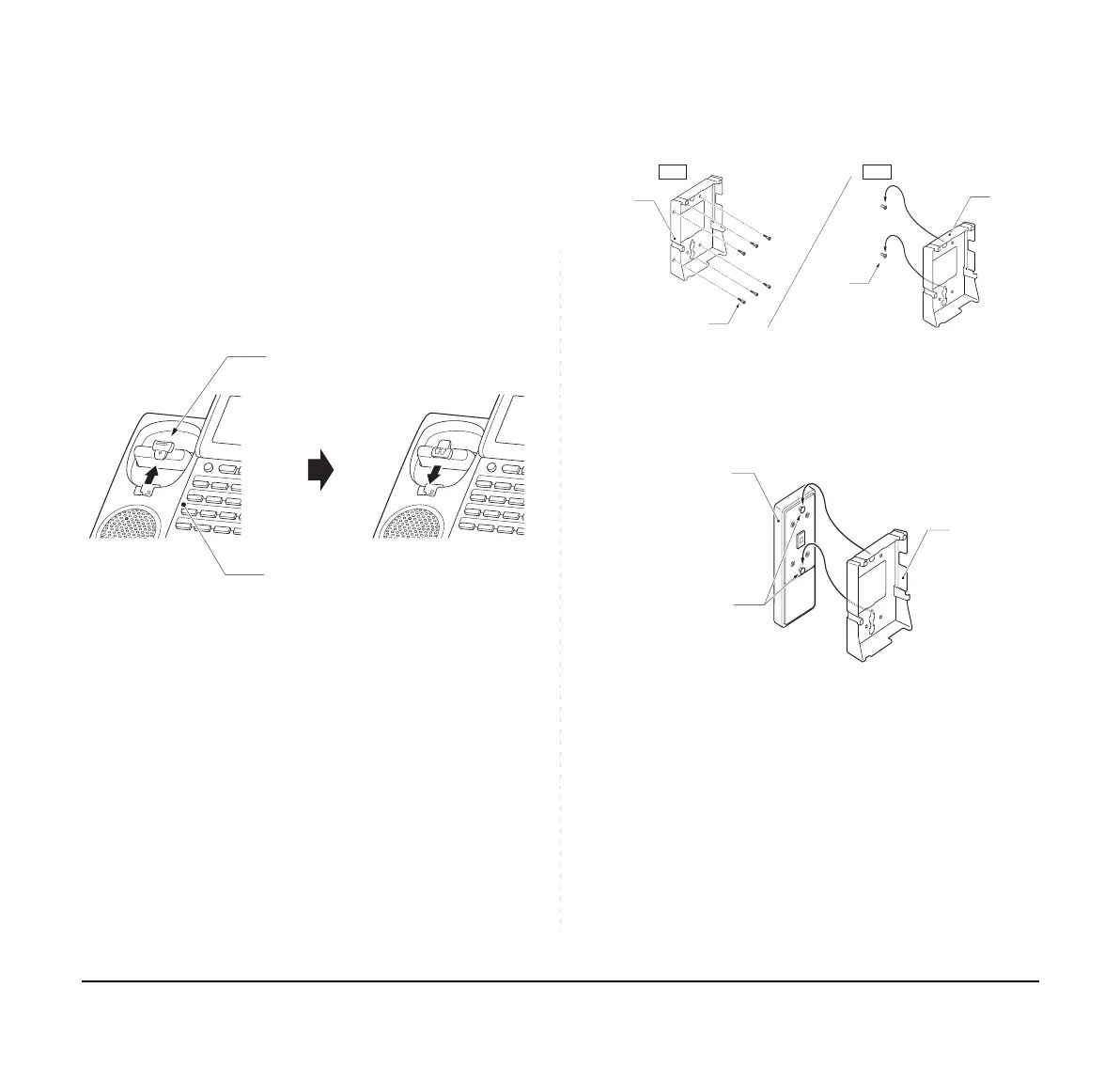

STEP 1: Mount the hanger of the handset upside
down.
Remove the hanger from the handset once.
Turn it upside down and then insert the hang-
er until you hear it clicks.
STEP 2: Turn the telephone set upside down and wid-
en the tilt leg.
STEP 3: Attach WM-L UNIT to the wall directly or the
wall plate.
- When attaching WM-L UNIT to the wall
directly:
Secure WM-L UNIT with the six screws (in-
cluded with the telephone set) or hang WM-L
UNIT on the wall with the two screws (pur-
chased separately) inserted into the wall.
- When attaching WM-L UNIT to the wall plate:
Attach WM-L UNIT to the posts on the wall
plate as shown in the figure below.
The remainder of the procedure varies between DT430
Series and DT830 Series.
- In the case of DT430 Series: Go to the next
step.
- In the case of DT830 Series: Go to Step 8
after the LAN cable is connected to the tele-
phone.
STEP 4: Attach the modular terminal to the wall as
shown in the following figure. If the modular
Wall Wall
Screws (suppulied)
Screws
WM-L UNIT
WM-L UNIT
To Next Page
