VENTING THE CLIMATE SYSTEM
1. Turn off VVM S320 using the on/off button (SF1).
2. Vent VVM S320 through the vent valve (QM20) and
other climate systems through their relevant vent
valves.
3. Keep topping up and venting until all air has been re-
moved and the pressure is correct.
UN
-X29
-X28
1 0-5V 2 +5V
3 AUX1 4 AUX2 5 AUX3 6 AUX4 7 AUX5 8 AUX6 9 AUX7
10 AUX8 11 AUX9 12 BT25
1
1
2
3
2 3 4 5 6 7 8 9
10
11
12
GND
+12V
B
A
OT+ OT−
0-5V
PWM0 PWM1
CPU
EXT COM
INT COM
ERROR
POWER
+5V
GND
BE1 BE2 BE3
K10
-X27
NO
O
NC
AU
X-RELAY
13 BT50 14 BT1
-X30
QM20
QM22

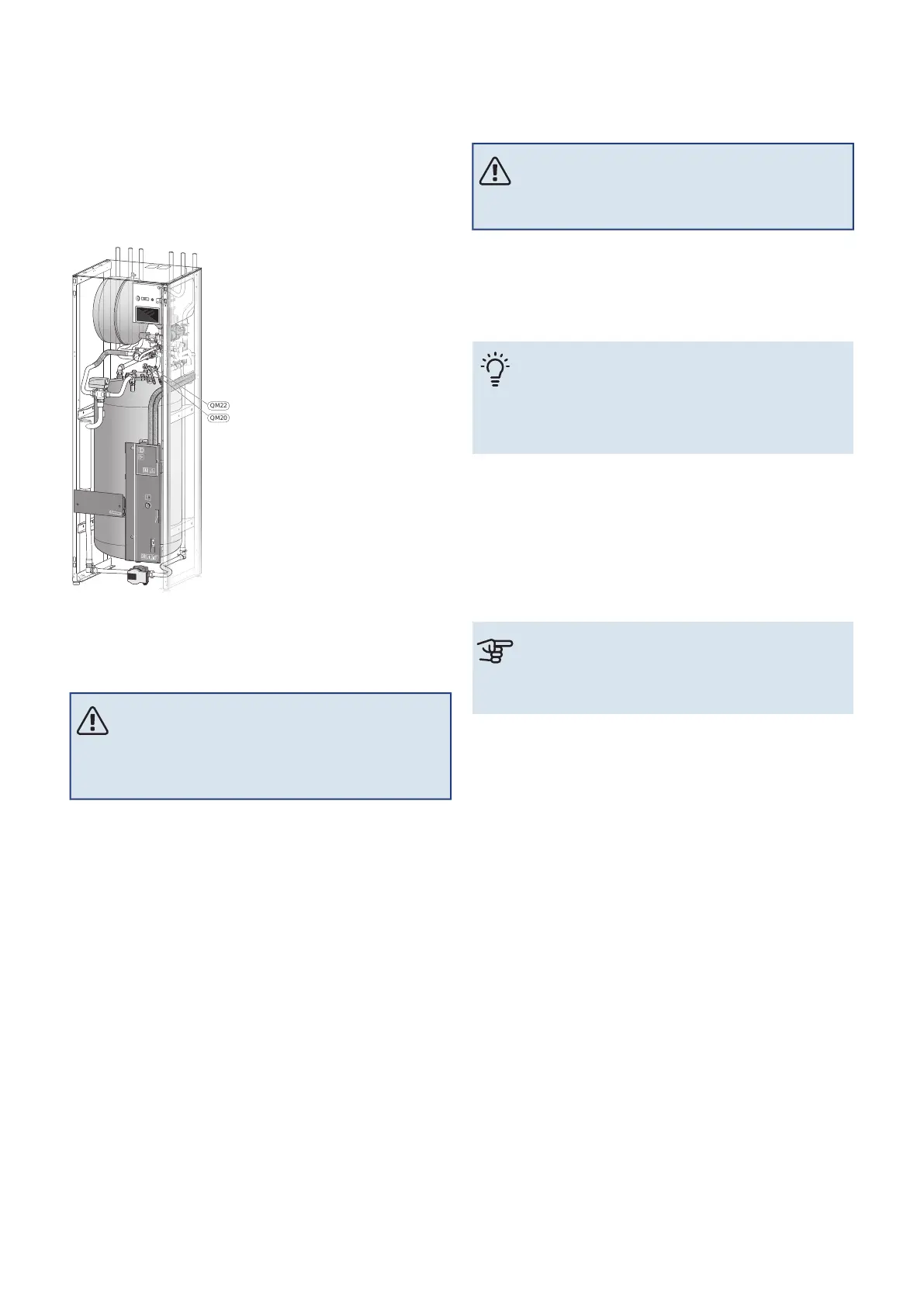

Venting, climate systemQM20
Venting valve, coilQM22
DRAINING THE CLIMATE SYSTEM
NOTE
There may be some hot water when draining the
heating medium side/climate system. There is a
risk of scalding.
1. Connect a hose to the lower filler valve for heating me-
dium (QM11).
2. Open the valve to drain the climate system.
Also see section "Draining the climate system".
Start-up and inspection
START GUIDE
NOTE
There must be water in the climate system before
VVM S320 is started.
1. Start VVM S320 by pressing the on/off button (SF1).
2. Follow the instructions in the display’s start guide. If the
start guide does not start when you start the VVM S320,
you can start it manually in menu 7.7.
TIP
See the section "Control – Introduction" for a more
detailed introduction to the installation's control
system (operation, menus, etc.).
Commissioning
The first time the installation is started a start guide is star-
ted. The start guide instructions state what needs to carried
out at the first start together with a run through of the in-
stallation’s basic settings.
The start guide ensures that the start-up is carried out cor-
rectly and, for this reason, cannot be skipped.
Caution
As long as the start guide is active, no function in
VVM S320 will start automatically.
29Chapter 6 | Commissioning and adjustingNIBE VVM S320
