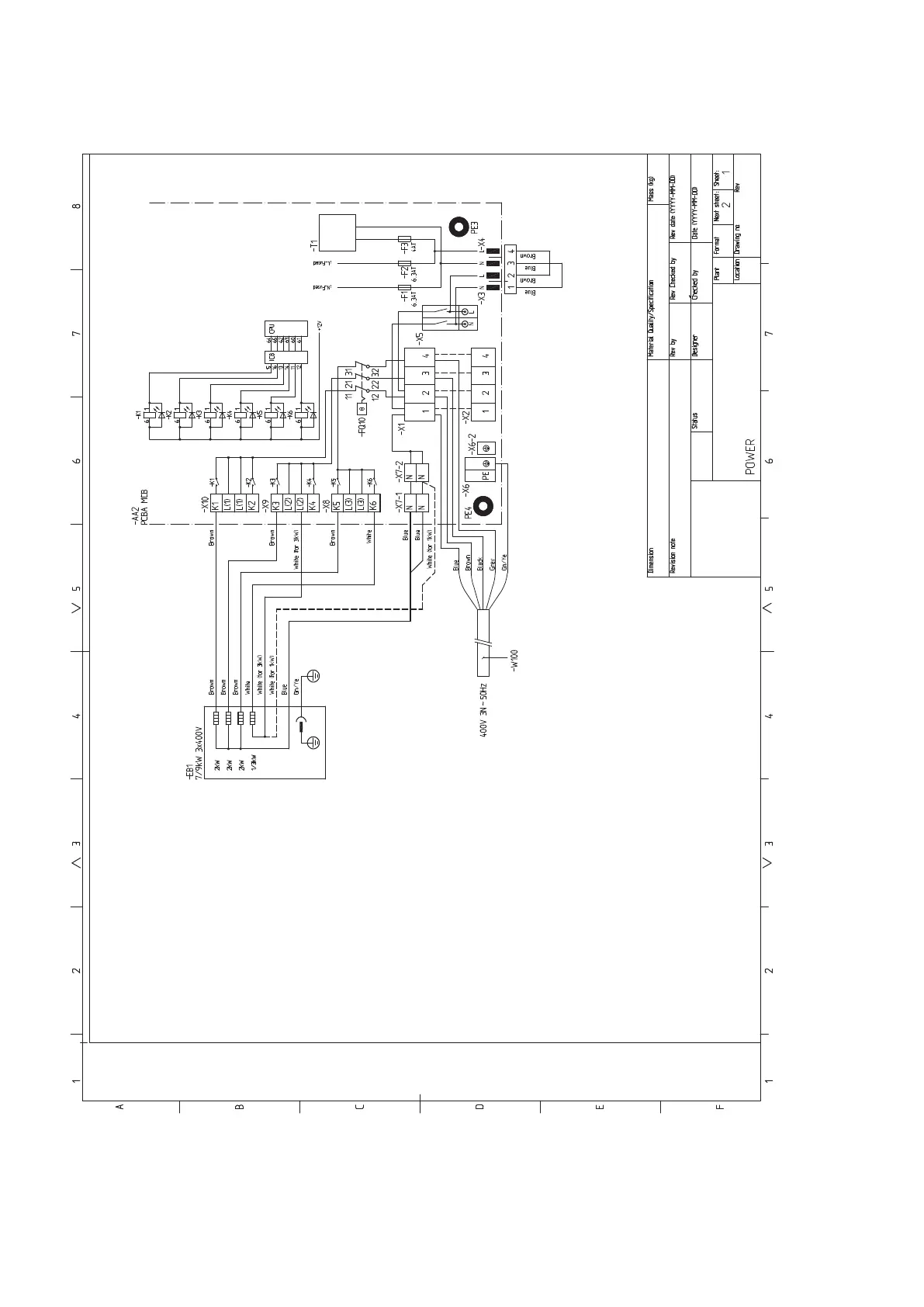

Electrical circuit diagram
3 X 400 V
Part Specification Sheet 051164-7
Page 2/5 Created:2019-03-08 08:32
0.001
JOV 2019-03-08
Production GBN 2016-11-24
400V 3N~ 50Hz, 9kW
WIRING DIAGRAM VVM S320
ELSCHEMA VVM S320
051164 7
NIBE VVM S320Chapter 13 | Technical data68
