*1: For DIC microscopy, simplified polarization microscopy, or sensitive polarization microscopy.
*2: Lambda plate slider in case of sensitive polarization microscopy.
*3: For DIC microscopy.

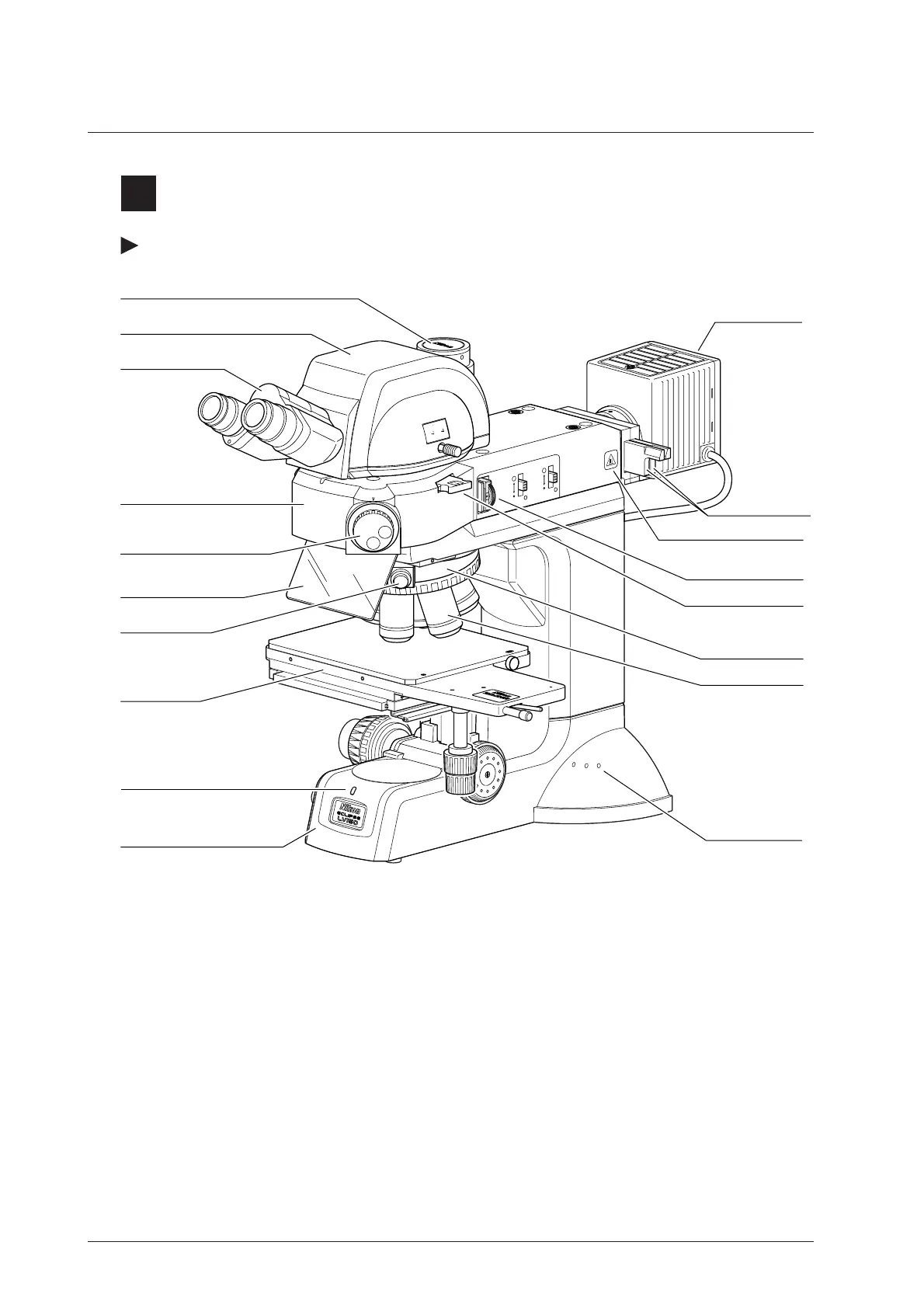

This drawing depicts the ECLIPSE LV150A microscope configured with the LV-UEPI2 illuminator,
LV-TT2 eyepiece tube, LV-LH50PC lamphouse, 6x6 stage, and attachments for DIC microscopy.
Names of Parts
2
When Configured with the Illuminator LV-UEPI2
6
x
6 STAGE
JAPAN
A
.
STOP
F
.
STOP
JA
P
AN
FL1
S
FL2
BF
DF
100 20
0
100
IN
O
UT
LV-
TT2
Vertical tube
Binocular part
Main body of the microscope
Stage
Power indicator
Ultraviolet light shield
Microscopy selection knob
Illuminator LV-UEPI2
Lamphouse
Tool holders
Analyzer slider
*1
Polarizer slider
*1
Dummy slider
*2
Filter sliders
“CAUTION for heat” symbol
Objective
DIC slider
*3
Nosepiece
Eyepiece tube LV-TT2
