OPERATING POSTURE

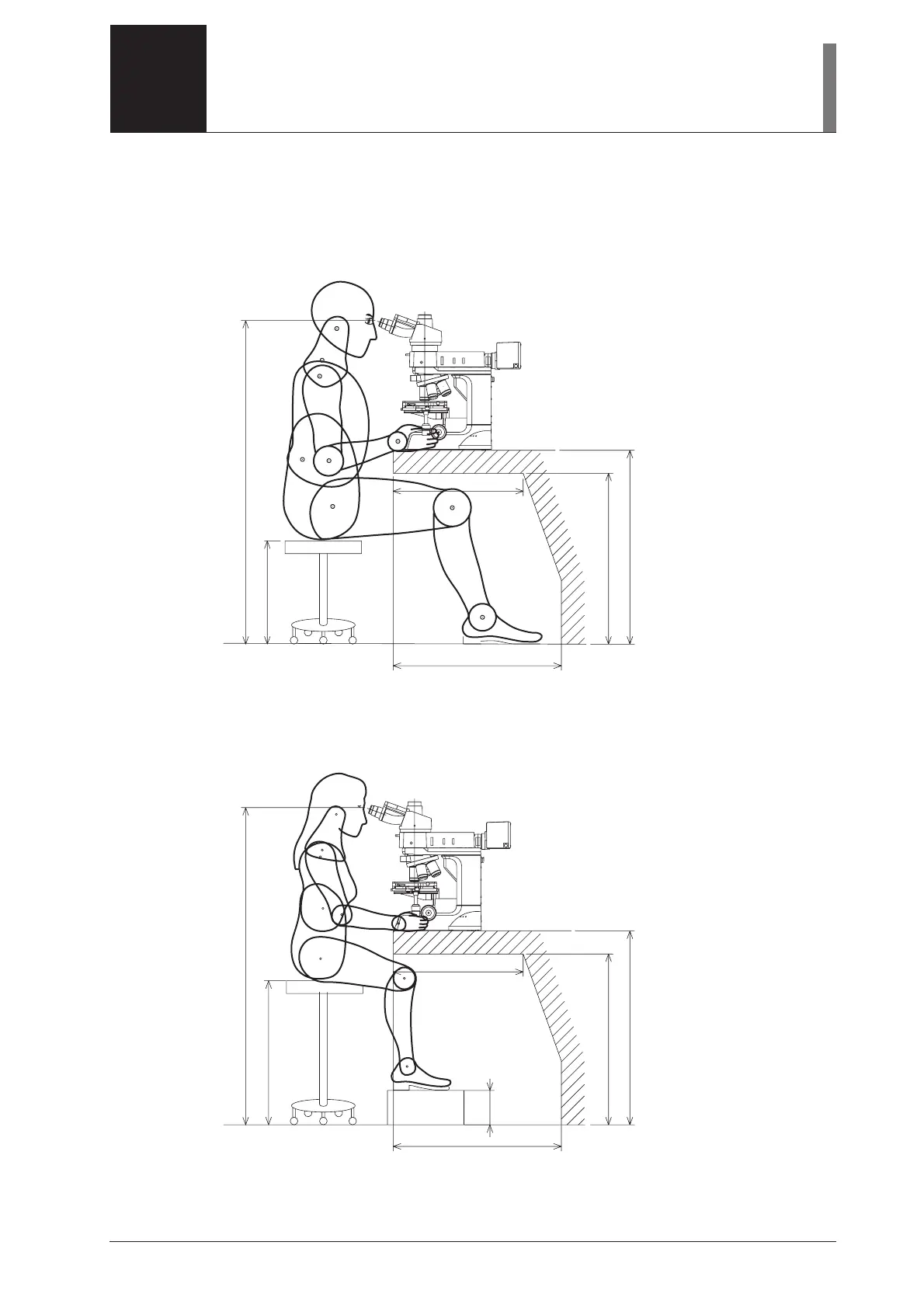

The figure below shows the operating posture that prevents strain on your body.
Choose a workbench and a chair having similar dimensions to those shown in the figure.
1269 (The height of the eyepiece height point)
135
660
510
660
673
760
510
405 (The height of the seating surface)
1244 (The height of the eyepiece height point)
565 (The height of the seating surface)
673
760
The 95th percentile male (Height: 189.5 cm)
The 5th percentile female (Height: 147.5 cm)
* The height of the eye point is that when one eye-level riser is mounted on the microscope.
* Take at least 610 mm of horizontal clearance for your legs.
* Take at least 610 mm of horizontal clearance for your legs.
Dimensions are in mm.
Dimensions are in mm.
