56
6

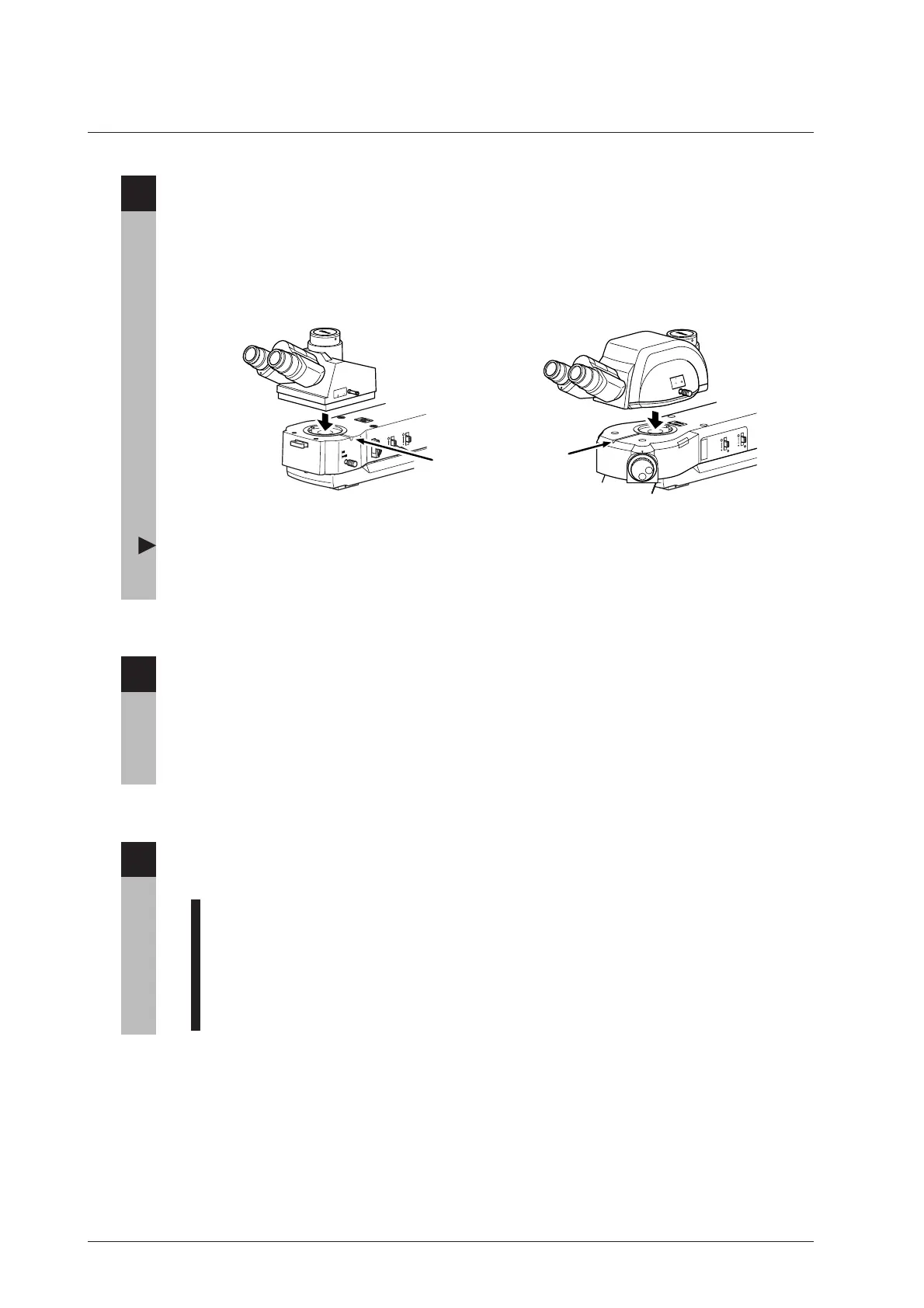

Attaching the Eyepiece Tube
Fully loosen the eyepiece tube clamp screw with the hexagonal screwdriver. Fit the eyepiece tube
onto the mount on the top of the illuminator and tighten the eyepiece tube clamp screw with the
hexagonal screwdriver.
J
AP
A
N
FL1
S
FL2
BF
DF
A
.
STOP
F
.
STOP
F
.
STOP
A
.
STOP
BF
DF
1
00
20
0
1
00
IN
O
UT
LV-T
T2
10
0
0
0
10
0
IN
O
U
T
When using the LV-UEPI2When using the LV-UEPI
Eyepiece
tube clamp
screw
Eyepiece
tube clamp
screw
Eyepiece tube
LV-TI3
Eyepiece tube
LV-TT2
Note on removing the eyepiece tube
Take hold of the eyepiece tube when loosening the eyepiece tube clamp screw since the eyepiece
tube may come off suddenly.
7
Attaching Eyepieces
Attach eyepieces of the same magnification and of the same viewfield number to the left and the
right eyes.
There are positioning pins on the eyepiece sleeve. Insert the eyepiece so that its positioning grooves
match the pins.
8
Attaching Objectives
1 Lower the stage completely.
2 Screw objectives into the nosepiece so that the magnification increases with the clockwise
rotation (as viewed from above the microscope) of the nosepiece.
To use the motorized nosepiece, attach objectives so that the magnification increases in order
of No. 1 to No. 5 of the nosepiece.
3 When removing the objectives, remove the sample, lower the stage completely, and hold
each objective using both hands so that it does not fall during the removal.
To Next Page
