Chapter 3 Specific Operations
18
9
Shifting a Sample
To view another part of a sample during microscopy, use the following procedure to shift the sample.
9.1
Sliding the Stage Plate
Loosen the stage plate fixing screw of the P-PS32 Plain Stand, the P-DSL32 LED Diascopic Illumination Stand or the
P-DSF32 Fiber Diascopic Illumination Stand to slide the stage plate. The stage plate can be smoothly and finely moved
within the 3 mm range. This mechanism is useful for positioning, especially for high-magnification observation.
Securely fix the stage plate in place using the fixing screw when this mechanism does not need to be used.
9.2
Shifting the Stage in the X and Y Directions (P-SXY64 XY Stage)

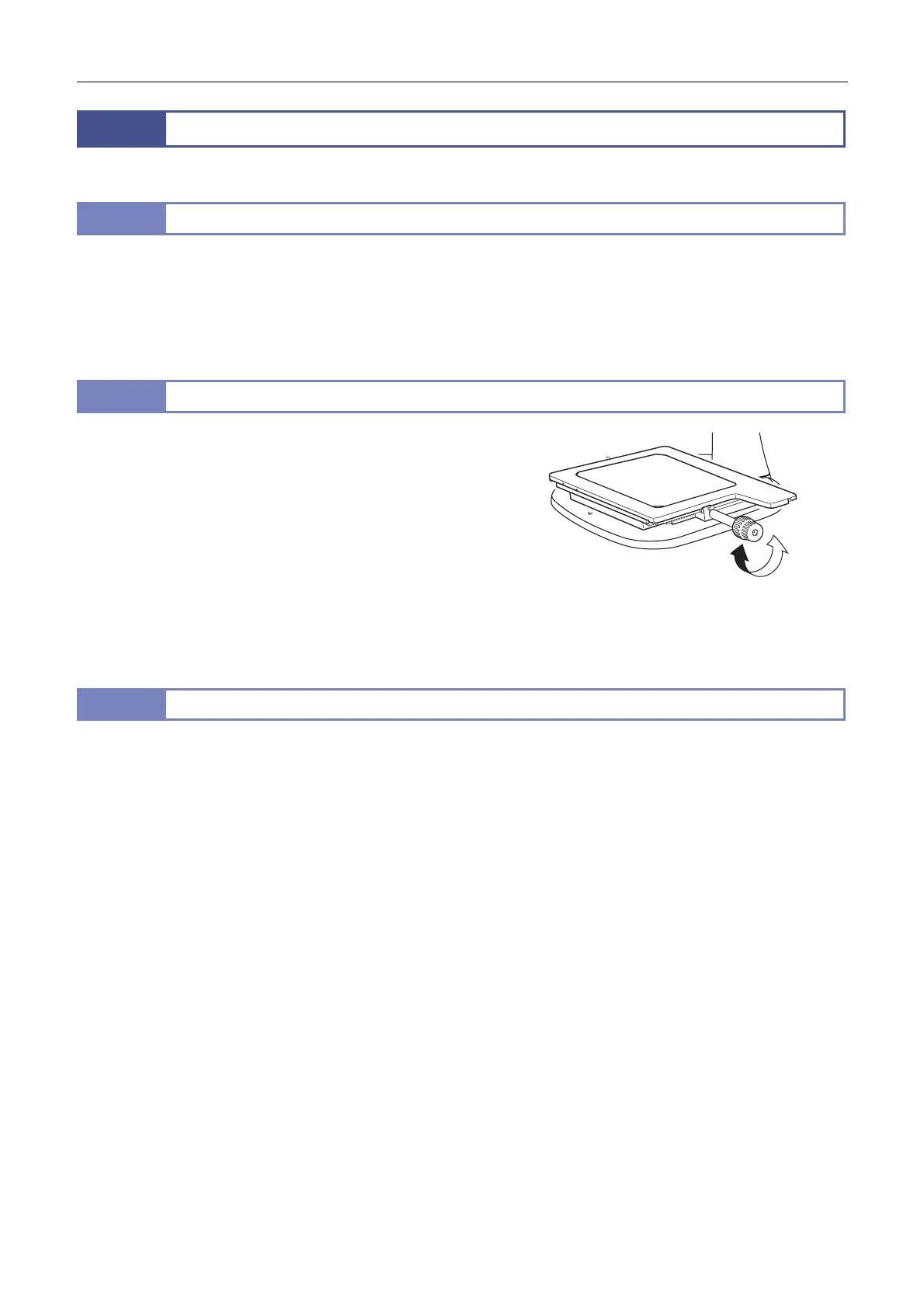

Turn the XY shift knob of the P-SXY64 XY Stage mounted in
place instead of the stage plate to shift the sample on the glass
plate and change the part to be observed.
XY stroke of the stage with the X/Y shift knob and stroke
per knob rotation
X: 150 mm; 37.5 mm per rotation
Y: 65 mm (from the optical path, 50 mm towards the front, 15
mm towards the rear); 24.1 mm per rotation
* Also see Chapter 4, “8.1 P-SXY64 XY Stage.”
Shift using the P-SXY64 XY Stage
9.3
Using Other Stages
Remove the stage plate from the base and attach the C-SSL DIA Sliding Stage or C-TRS Tilting Stage in place so that the
sample can be tilted or moved slightly.
