Chapter 4 Functions and Operations of the Devices
33
3
Nosepieces
There are two types of nosepieces: The standard P-RN2 Nosepiece and the P-RNI2 Intelligent Nosepiece equipped with the
status detection function.
* The nosepieces cannot be used together with the microscope system that includes a C-FMAN/C-FMBN Focus Mount,
or a C-LEDS Hybrid LED Stand.
3.1
P-RN2 Nosepiece
ttach the P-RN2 Nosepiece to the objective mount of the
SMZ800N Zooming Body or the SMZ1270 Zooming Body.
Two objectives attached to the nosepiece can be switched by
turning the nosepiece. Vertical observation with a single-side
optical path is also possible.

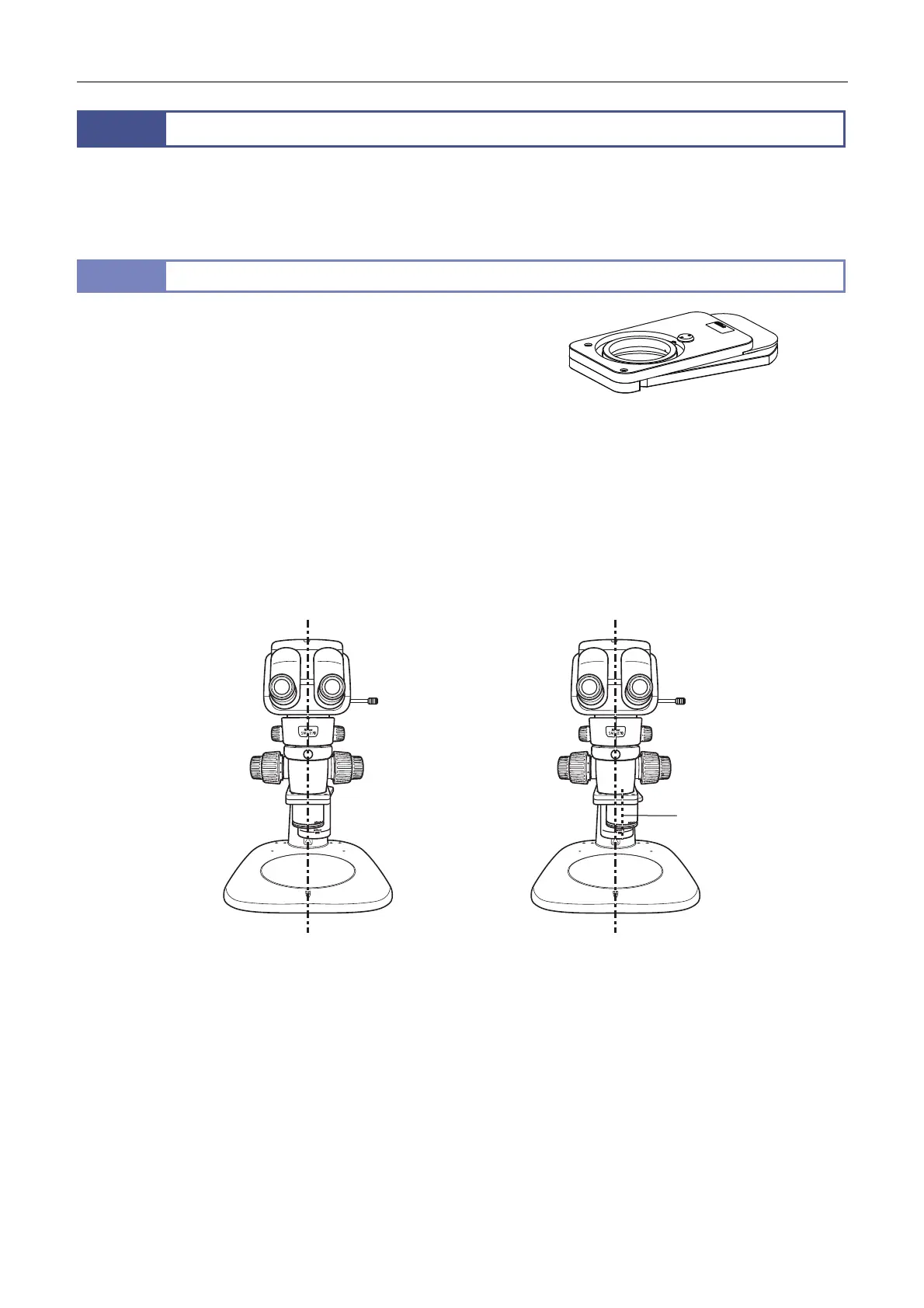

Stereoscopic view and vertical view
The nosepiece has two click positions for each objective.
The view state can be changed between stereoscopic view
and vertical view according to the click position.
Microscopy can be performed in the vertical position when
needed, such as when taking images of the sample.
The click position that an objective is in can be checked by
viewing the position of the objective from the front.
P-RN2 Nosepiece
2 x
WF
ED
Plan
WD:35
2 x
WF
ED
Plan
WD:35
Stereoscopic view Vertical view
Objective position (stereoscopic view and vertical view)
Objective center axis
