Nikon SMZ800N User Manual

Chapter 4 Functions and Operations of the Devices
30
2.2

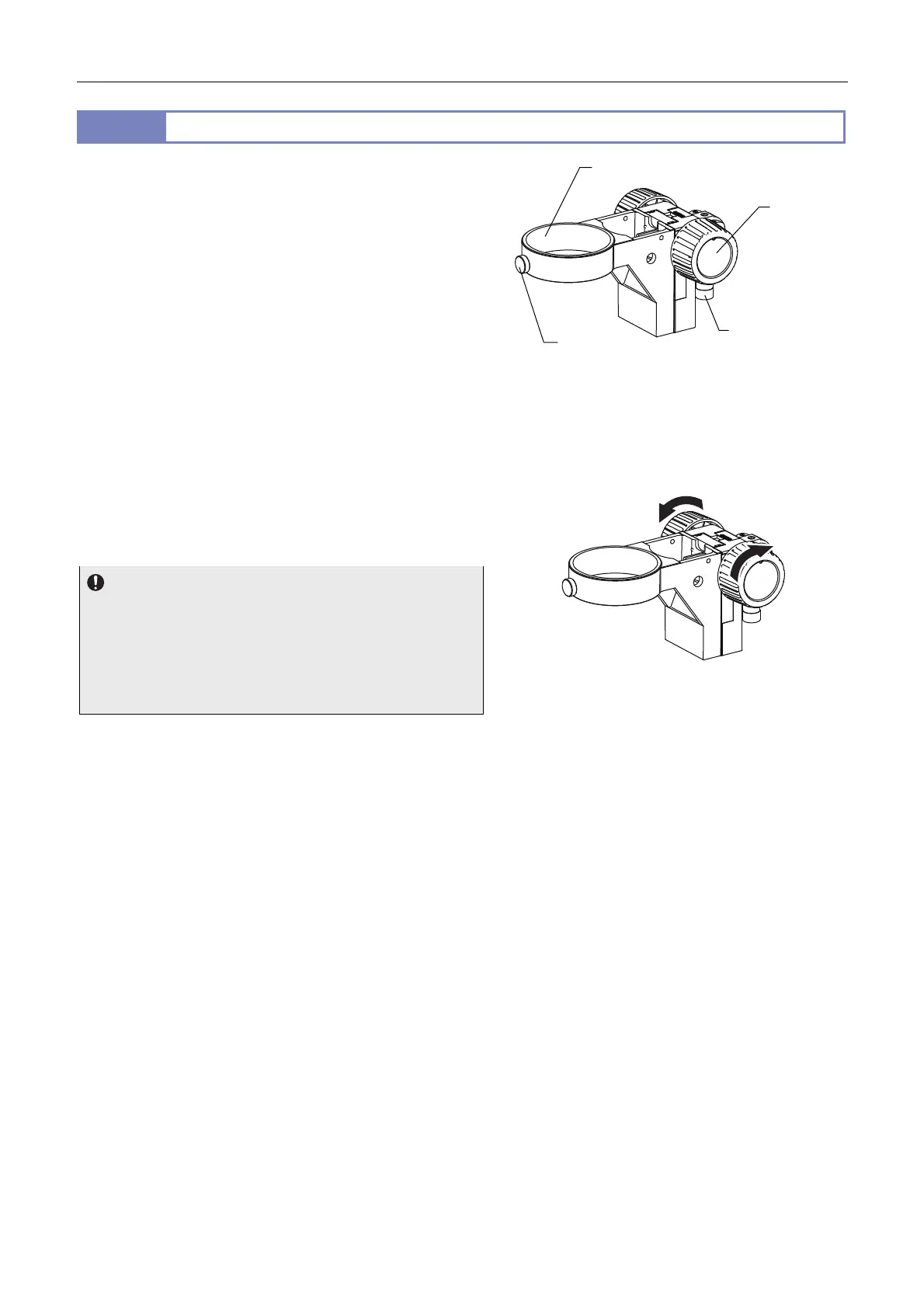

C-FMBN Focus Mount
The C-FMBN Focus Mount attaches to a G-US1A Universal Table
Clamp Stand or a G-US2 Universal Table Stand.
Turn the right and left focus knobs to move the zooming body
vertically and to focus on samples.
 Turning the focus knob backward: Upward movement
 Turning the focus knob forward: Downward movement
 Focusing stroke: 50 mm
 Stroke per focus knob rotation: 18.7 mm
The zooming body mount can be inclined by loosening a set
screw on the support pillar. This is useful when observing an
inclined sample or using the focus mount on other devices such
as a wire bonder.
 Angle of inclination at the mount: 180°
C-FMBN Focus Mount
 Torque adjustment of the focus knobs
To adjust the torque of the focus knobs, turn the right and left
focus knobs in opposite directions. Adjust the torque to an
appropriate level.
Notes on the torque adjustment
When the torque is too low, the zooming body may slide down due
to the various loads it carries, such as its own weight or the load of
the counterbalance spring inside the focus unit. This may result in
injury, such as pinching fingers between the objective and sample,
or cause damage to the sample or objective. Be sure to adjust the
torque to an appropriate level.
* A C-LSL2 LED Epi Illuminator 2 can be attached to the
C-FMBN Focus Mount directly or via an SMZ-U Epi Arm or a
G-EIA Flexible Arm.
* A nosepiece cannot be used together with a zooming body
combined with a FMBN Focus Mount.
* The C-FMBN Focus Mount has an antistatic function.
Adjusting the torque of the focus knobs
(The torque is increased by turning the focus knobs
as shown in the figure.)
Zooming body mount
Zooming body
fixing screw
Focus knob
A
ttachment shaft
(inserted into the
focus mount holder
of the stand)
