Chapter 4 Functions and Operations of the Devices
47
10.4
C-FIR Ring Fiber Illumination Unit

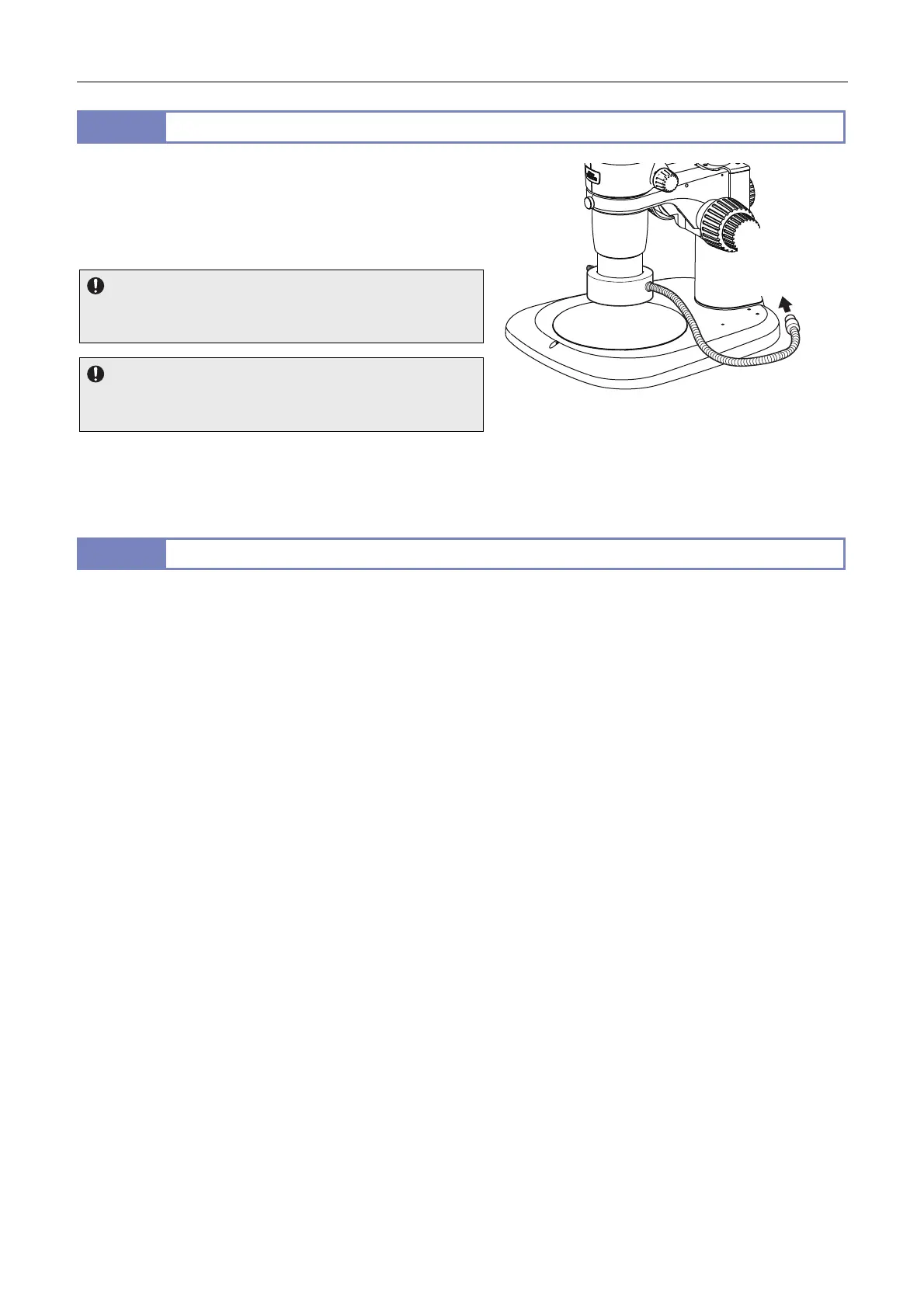

The C-FIR is a ring shaped fiber illuminator that attaches to the
external tip of the objective and connects to the C-FLED2 LED
Light Source for Fiber Illuminator.
The edge face of the sample can be illuminated evenly using this
ring-shaped fiber.
Restriction
The C-FIR Ring Fiber Illumination Unit cannot be used with the
P-ED Plan 2X/WF.
Important notes on handling the fiber
Do not excessively bend or apply excess force to the fibers. Doing
so may damage the fiber.
For details on attaching the unit to an objective, connecting to a
light source, and using a light source, refer to the instruction
manual supplied with the light source.
C-FIR Ring Fiber Illumination Unit
10.5
Other Episcopic Illuminators
In addition to the illuminators with the episcopic illumination function described in Section 10.1 to Section 10.4, the C-LSL2
LED Epi Illuminator 2 and C-LEDS Hybrid LED Stand can also be used.
The C-LEDS Hybrid LED Stand also has the diascopic illumination function. For details, refer to the instruction manual
supplied with the illuminators.
To C-F L E D2
LED Light
Source for Fiber
Illuminator
To Next Page
