Nikon SMZ800N User Manual

Chapter 4 Functions and Operations of the Devices
39
7
Stands (Exclusive Model)
The series of stands exclusive to this microscope system.
Attach a C-FMCN Focus Mount to the support pillar of the stand. The stand's base with a large glass plate enhances usability
and enables easier observation of samples in a container such as a petri dish.
To expand the function of these stands, remove the stage plate from the base section and replace it with a stage with the XY
shift knob or a sliding stage, or use a polarizing attachment.
7.1
P-PS32 Plain Stand
The P-PS32 is a standard model stand without illumination
systems.
It is equipped with a stage plate (180 mm dia.) with black and
milky white surfaces. Select the surface appropriate for the
sample.
A
dedicated hex driver is located at the top of the support pillar.

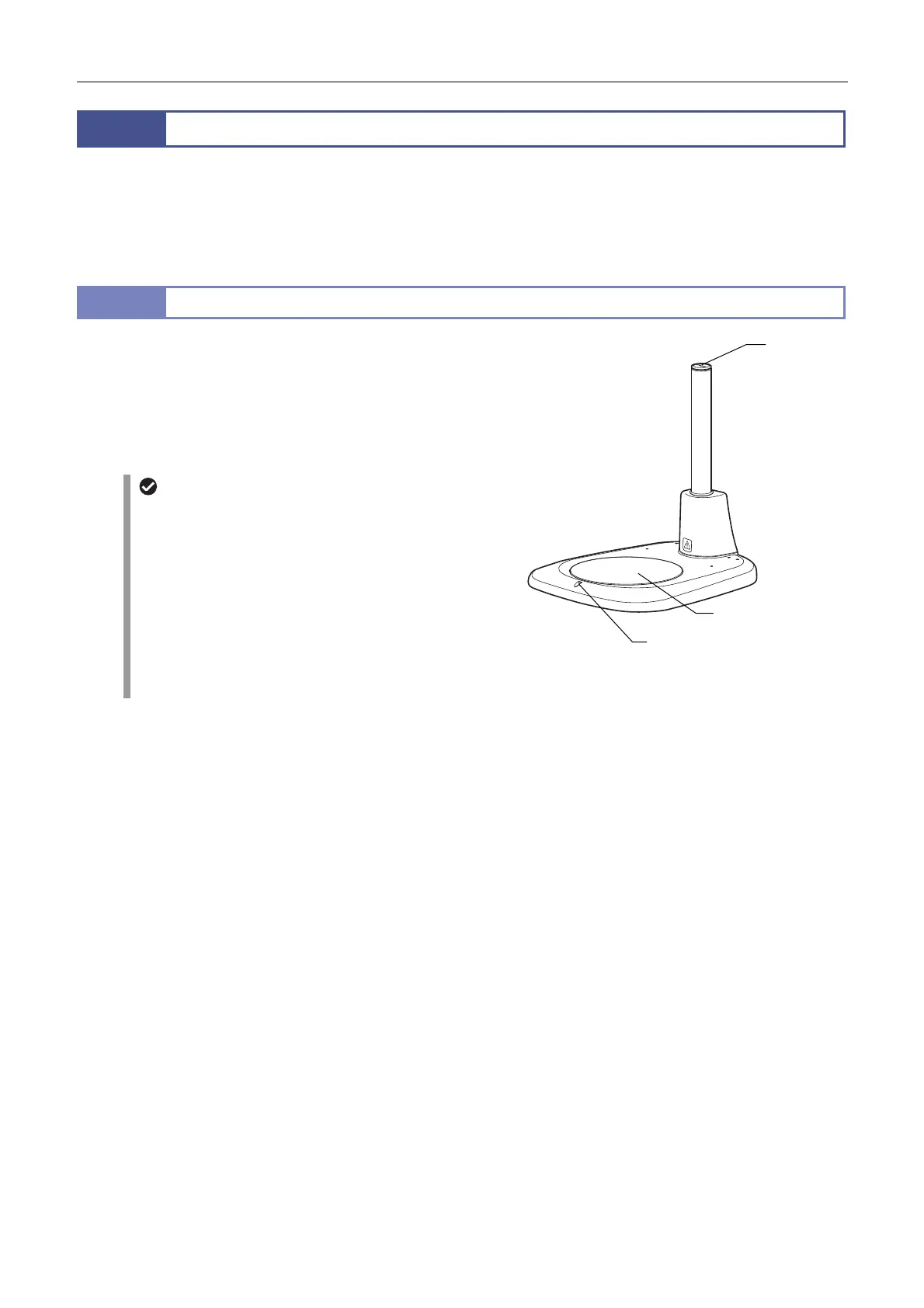

P-PS32 Plain Stand
Sliding mechanism of the stage plate
The sliding parts are mounted on the base part for
mounting the stage plate, which can be slid by loosening
the stage plate fixing screw. There is a clearance gap of
approximately 3 mm around the stage plate when the stage
is securely set. The stage plate can be smoothly and finely
moved within the clearance gap by loosening the stage
plate fixing screw.
This mechanism is useful for positioning, especially for
high-magnification observation.
Securely fix the stage plate in place using the fixing screw
when this mechanism does not need to be used.
 Attachable optional devices
The following devices can be attached optionally to this stand.
 P-SXY64 XY Stage
 Circular Floating Stage 2
 C-SSL DIA Sliding Stage
 P-DF2 LED Dark Field Unit 2
 C-TRS Tilting Stage
 C-LSL2 LED Epi Illuminator 2 (via an SMZ-U Epi Arm)
 C-FDF Flexible Double Arm Fiber Illumination Unit (via a
C-FIDH Fiber Holder)
 C-FID2 Double Arm Fiber Illuminator
Stage plate
Driver
Stage plate fixing screw
