Nikon SMZ800N User Manual

Chapter 4 Functions and Operations of the Devices
40

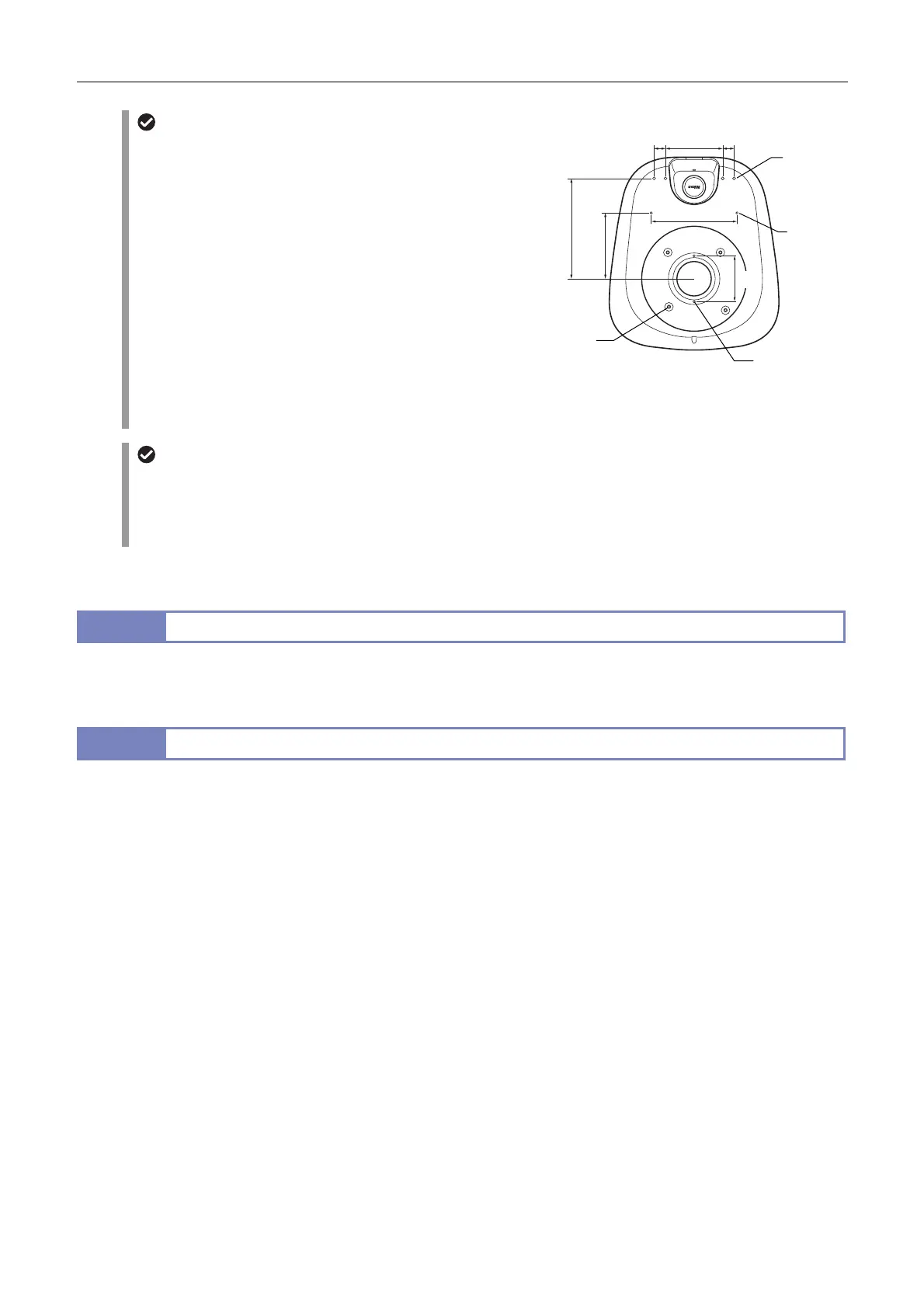

Screw holes for attaching optional devices
The base’s top board has screw holes for attaching various
devices. Screw holes (2) to (4) do not go right the way
through to prevent liquid penetrating into the base.
(1) 2-M4: Positioned under the stage plate attachment
part of the base. Usable for multiple purposes.
Used for attaching a Circular Floating Stage 2
or a C-TRS Tilting Stage.
(2) 4-M6: Positioned under the stage plate attachment
part of the base. Used for attaching a P-SXY64
XY Stage.
(3) 2-M4: Positioned at the center on the top surface of
the base. Usable for multiple purposes.
(4) 4-M5: Positioned at the rear on the top surface of the
base. Used for attaching a C-FDF Flexible
Double Arm Fiber Illumination Unit (via a
C-FIDH Fiber Holder).
Screw holes for attaching optional devices
Exchange for a C-EP support
The support pillar length is 100 mm longer than
standard when the original support pillar for this stand is
exchanged for a C-EP support. This is useful for
attaching the focus mount to a high position.
7.2
P-DSL32 LED Diascopic Illumination Stand
See “12.1 P-DSL32 LED Diascopic Illumination Stand.”
7.3
P-DSF32 Fiber Diascopic Illumination Stand
See “12.2 P-DSF32 Fiber Diascopic Illumination Stand.”
(1)
2-M4
(4)
4-M5
Depth 7
(3)
2-M4
Depth 6
(2)
4-M6
Depth 8
20 100 20
150
80
175
115
