Nikon SMZ800N User Manual

Chapter 4 Functions and Operations of the Devices
46
10.2

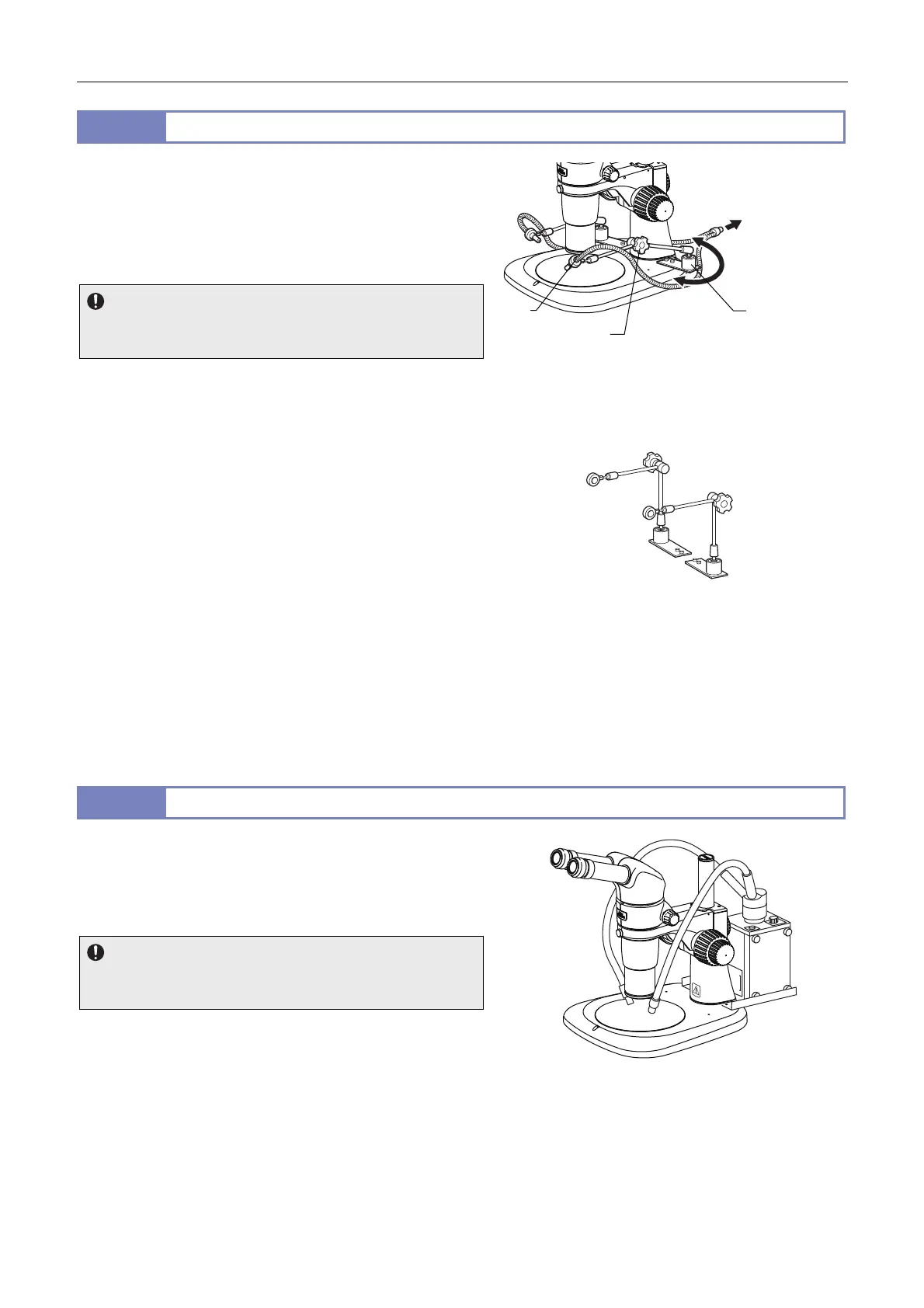

C-FDF Flexible Double Arm Fiber Illumination Unit
The C-FDF for illuminating samples is a fiber connected to the
C-FLED2 LED Light Source for Fiber Illuminator.
Two fibers are held by the C-FIDH Fiber Holder. The orientation o
f
the holder’s arm can be adjusted so that the tips of the fibers face
the samples for illumination. For details on using the fiber holder,
see “ C-FIDH Fiber Holder.”
Important note on handling fibers
Do not excessively bend or apply excess force to the fibers. Doing
so may damage the fibers.
For details on the procedure for using a light source, refer to the
instruction manual for the light source.
C-FDF Flexible Double Arm Fiber illumination Unit
 C-FIDH Fiber Holder
This holds the tip of the flexible double-arm fiber. Mount the base
of the holder to the base (stand) of the microscope system. The
holder holds the tips of the fibers with the two arms extending
from its base. The arms can be freely positioned in any direction.
The positions of the arms can be firmly locked by tightening the
knobs at the joints of the arms. The arms are connected with a
mechanism that enables the arms to be freely swung centered
around a single axis (Z axis). This allows the arms to be pushed
aside without having to unlock the arm joints. If the arm position is
returned by rotating it on the same axis, the arm will stop at the
first lock position.
The C-FIDH Fiber Holder can be attached to the following stands:
 P-PS32 Plain Stand
 P-DSL32 LED Diascopic Illumination Stand
 P-DSF32 Fiber Diascopic Illumination Stand
C-FIDH Fiber Holder
10.3
C-FID2 Double Arm Fiber Illuminator
This illuminator for illuminating samples is a light guide connected
to the C-FLED2 LED Light source for fiber illuminator.
The fiber is bifurcated at the mount to the light source. An
interlock type covering mechanism enables adjustment of
illumination position and orientation.
Important note on handling fibers
Do not excessively bend or apply excess force to the fibers. Doing
so may damage the fibers.
The C-FID2 Double Arm Fiber Illuminator can be attached to the
following stands:
 P-PS32 Plain Stand
 P-DSL32 LED Diascopic Illumination Stand
 P-DSF32 Fiber Diascopic Illumination Stand
 C-PSN/C-PSCN Plain Stand
For details on attaching the illuminator to a stand, connecting to a
light source, and using a light source, refer to the instruction
manual supplied with the light source.
C-FID2 Double Arm Fiber Illuminator
Fiber holder
(single-axis
rotary section)
Fiber holde
r
(knob)
To C-FLED2 LED
Light Source for
Fiber Illuminator
Fibe
r
