Nikon SMZ800N User Manual

Chapter 4 Functions and Operations of the Devices
55
12.3
P-DF2 LED Dark Field Unit 2
This dark-field illumination unit has LEDs that are tilted and positioned like a ring. The unit is attached to the base of the
stand. For details, refer to the instruction manual for the P-DF2 LED Dark Field Unit 2.
12.4
C-POL Simple Polarizing Attachment
The C-POL is a simple polarizing device that consists of the
polarizer section and the analyzer section.
Polarizing observation is enabled by changing the orientation of
the polarizer installed on the base of the stand and the analyzer
that attaches to the tip of the objective.
The polarizer and analyzer have indicators which show the
orientation of the polarizing plate. Use the screw head at the
bottom plane of the analyzer rotating dial as the analyzer’s
indicator.

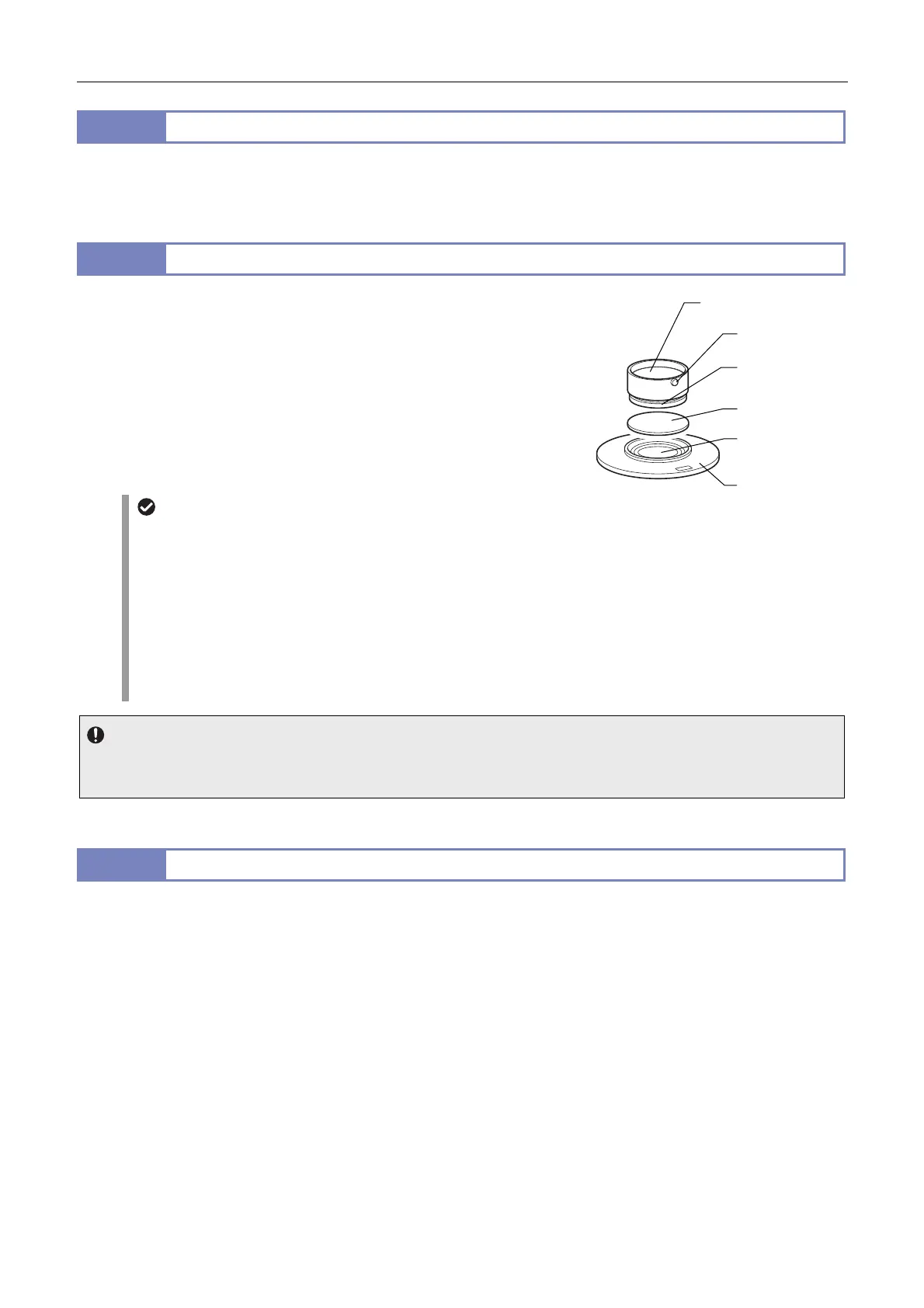

C-POL Simple Polarizing Attachment
Directly placing the polarizer
When a polarizing attachment is used, the periphery
becomes dark in the low zoom magnification range. To
reduce vignetting, remove the stage glass and directly
place the polarizer.
Drop the polarizer removed from the polarizer section into
the position where the diffuser was removed from the base
of the stand. Use the original stage plate supplied with the
base.
The polarizer cannot be placed directly on the C-DS Dia
Illumination Stand.
Restrictions
The C-POL Simple Polarizing Attachment cannot be used with the P-ED Plan 2X/WF.
The 0.5x objective supports a 1x or larger zoom area more and other objectives cover the entire zoom area.
12.5
Other Diascopic Illuminators
In addition to the devices equipped with the diascopic illumination function listed above (12.1 to 12.4), the C-DS Dia
Illumination Stand and C-LEDS Hybrid LED Stand also have the diascopic illumination function. The C-LEDS Hybrid LED
Stand also has the episcopic illumination function. For details, refer to the instruction manual supplied with the stands.
A
nalyzer section
Polarizer section
A
nalyze
r
Base plate
Fixing screw
A
nalyzer
rotating dial
Polarizer
Stage glass
