7368 ISAM ONT G-240W-J Product Guide G-240W-J unit data sheet
Issue: 01 3FE-48009-AAAA-TCZZA 55
5.9 G-240W-J functional blocks
G-240W-J indoor ONTs are single-residence ONTs that support Wireless (Wi-Fi)
service. Wi-Fi service on these ONTs is compliant with the IEEE 802.11 standard
and enabled or disabled using a WLAN button. In addition to the Wi-Fi service, these
ONTs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two
RJ-11 POTS ports. These ONTs also feature fiber optic, two USB ports, and power
connectors.
Figure 14 shows the functional blocks for G-240W-J indoor ONT.
Figure 14 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and without RF video
ONT SoC technology serves as the main hardware block for these ONTs; see Figure
15.

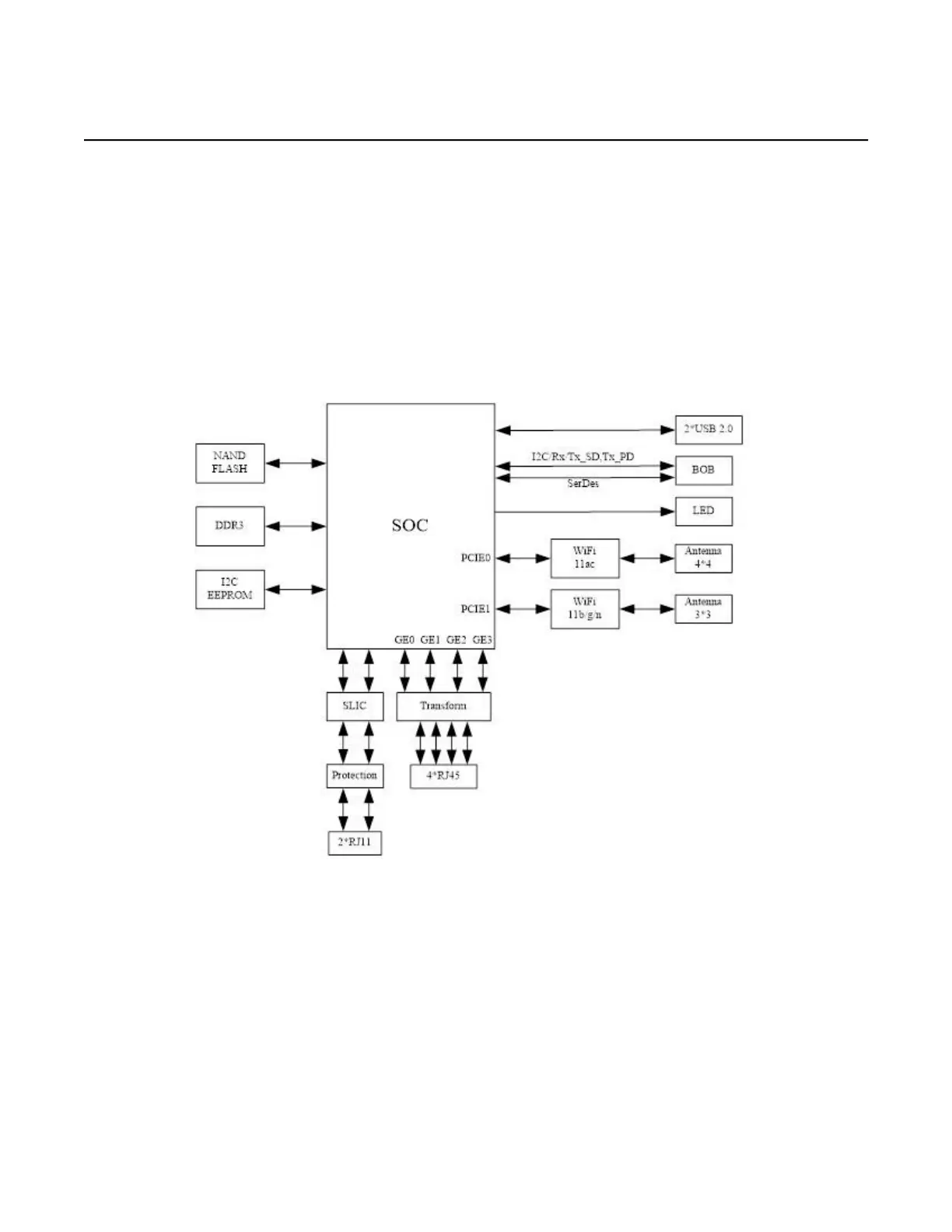

Figure 15 G-240W-J ONT hardware block
