Nordson DuraBlue D4L Customer Product Manual

Parts
7-8
Part 1032059B
E 2003 Nordson Corporation
Manual 41-DURABLUE-MA-02
Pump

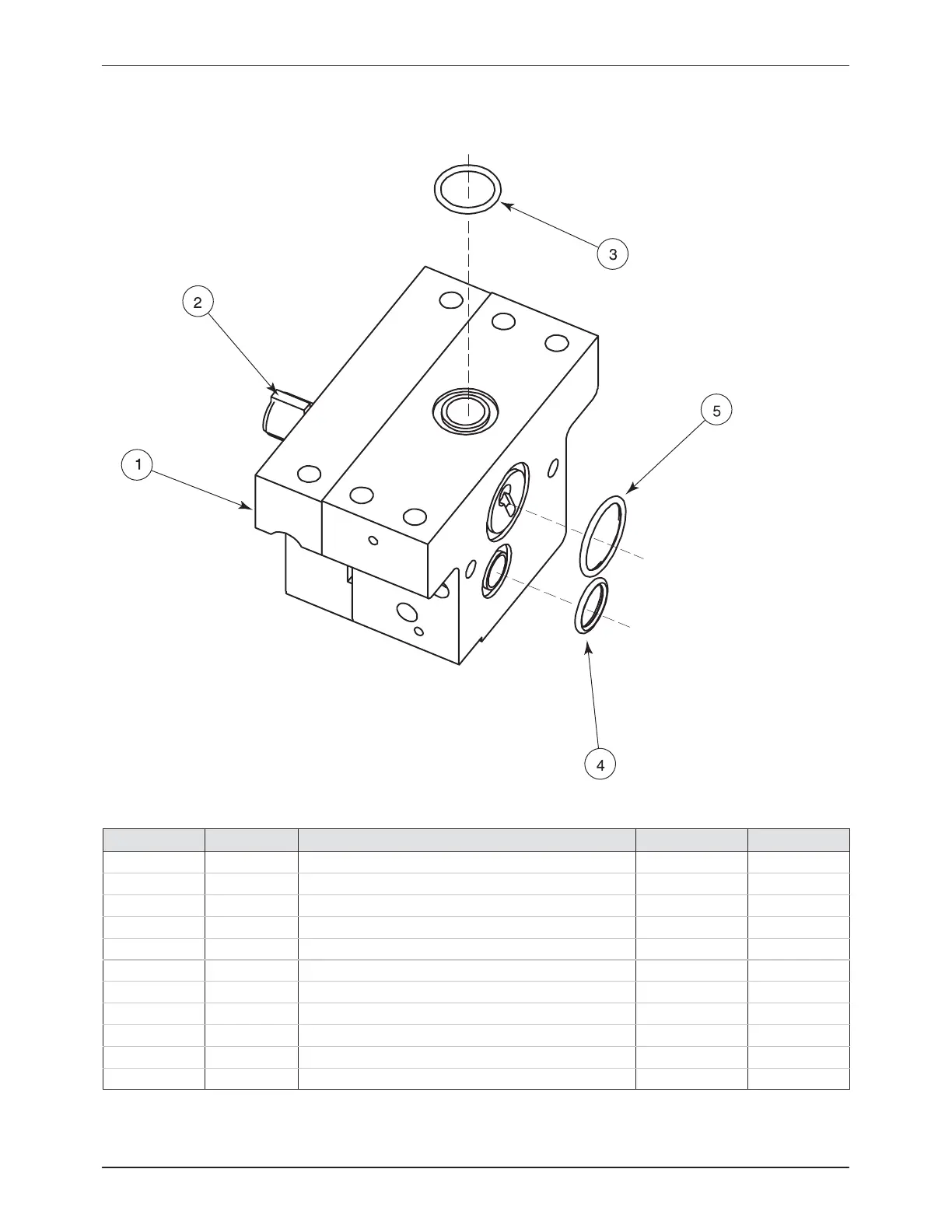

Figure 7-5 Pump service kit parts
Item Part Description Quantity Note
— 1031204 Service kit, pump, 4.9 cc/rev —
— 1031205 Service kit, pump, 7.8 cc/rev —
1 - - - - - -
S Pump
1
2 1033445
S Key, machine drive,
3
/
16
x .70 in. (7.8 cc pump)
1
2 1033444
S Key, machine drive,
1
/
8
x
3
/
4
in. (4.9 cc pump)
1
3 - - - - - -
S O-ring, -118, Viton, 0.862 x 0.103 in.
1
4 - - - - - -
S O-ring, Viton, 0.750 x 0.938 x 0.094 in.
1
5 - - - - - -
S O-ring, Viton, 1.188 x 1.388 x 0.094 in.
1
NS - - - - - -
S Screw, hex, cap, M8 x 90
2 A
NS - - - - - -
S Washer, flat, narrow, M8
2 A
NS - - - - - -
S Grease, high-temperature, 0.50 oz
1
