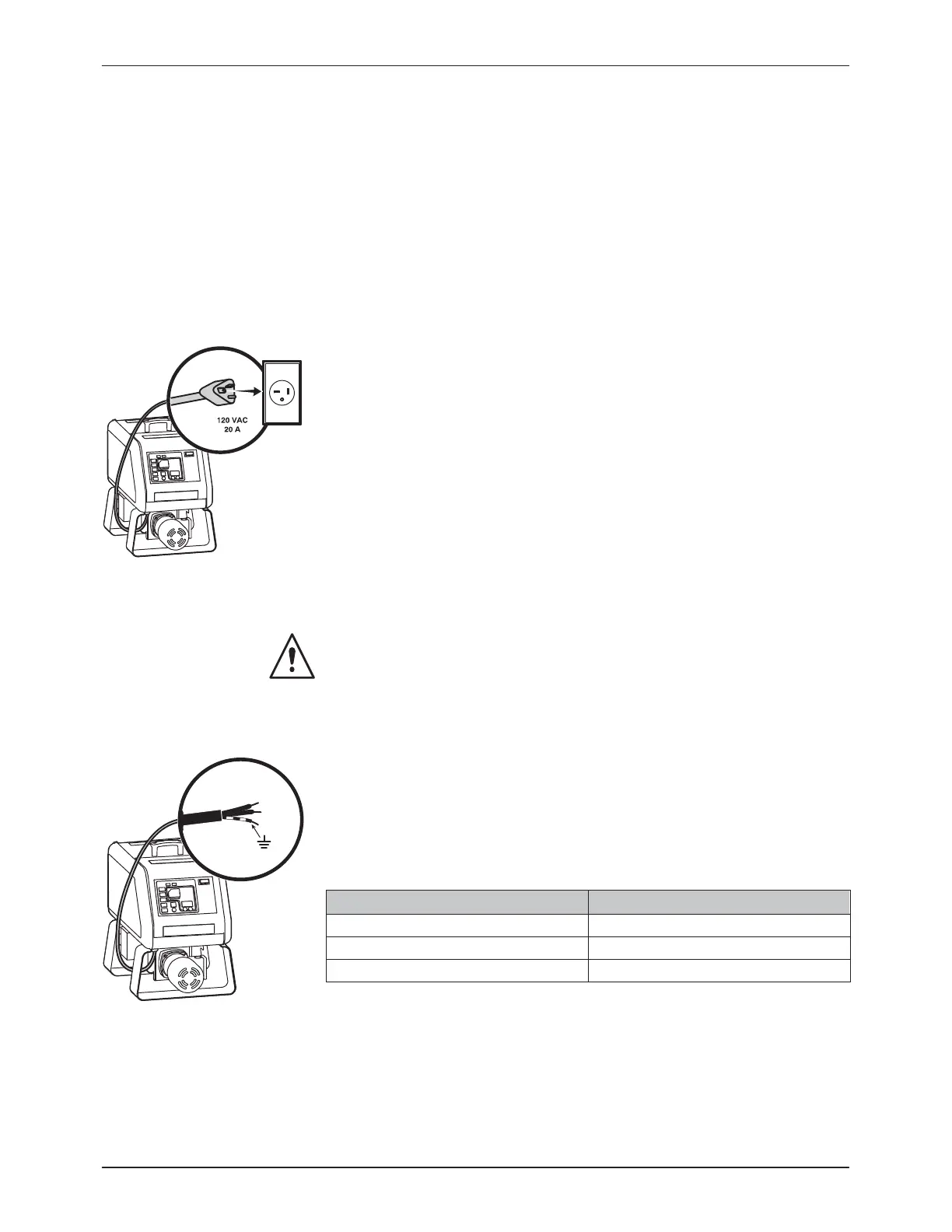

Melter with attached power cord
Melter with attached power cable
Installation
3-8
Part 1032059B
E 2003 Nordson Corporation
Manual 41-DURABLUE-MA-02
Connecting the Electrical Service
DuraBlue melters are shipped from the factory in one of the following two
electrical configurations:
S With an attached power cord that is ready to be plugged into a
120 volt 20 amp receptacle
S With an attached power cable that is ready to be wired to a
200–240 volt circuit
To connect a melter with an attached power cord
S Plug the power cable into an electrical outlet. The maximum unit
amperage of 120 volt DuraBlue melters is 20 amp. Refer to Table 3-3 for
the maximum amperages of 200–240 volt melters.
NOTE: DuraBlue melters with an attached power cable are not for use
with residential electrical service.
WARNING: Risk of electrical shock or short circuit! Use an appropriately
sized strain relief to protect the power cable from the sharp edge of the
penetration into the disconnect switch.
To connect a melter with an attached power cable:
S Connect the power cable to a properly rated 200–240 volt circuit that
includes a lockable electrical disconnect switch. The maximum
amperages of DuraBlue melters operating at 200–240 volts are shown
in Table 3-3.
Table 3-3 Maximum Amperages for 200–240 Volt Melters
Model Maximum Amperage
D4L 14
D10L 17
D16L 19
NOTE: The ground conductor is the striped wire.
