23
Description of Parts and Settings
Section 2-1

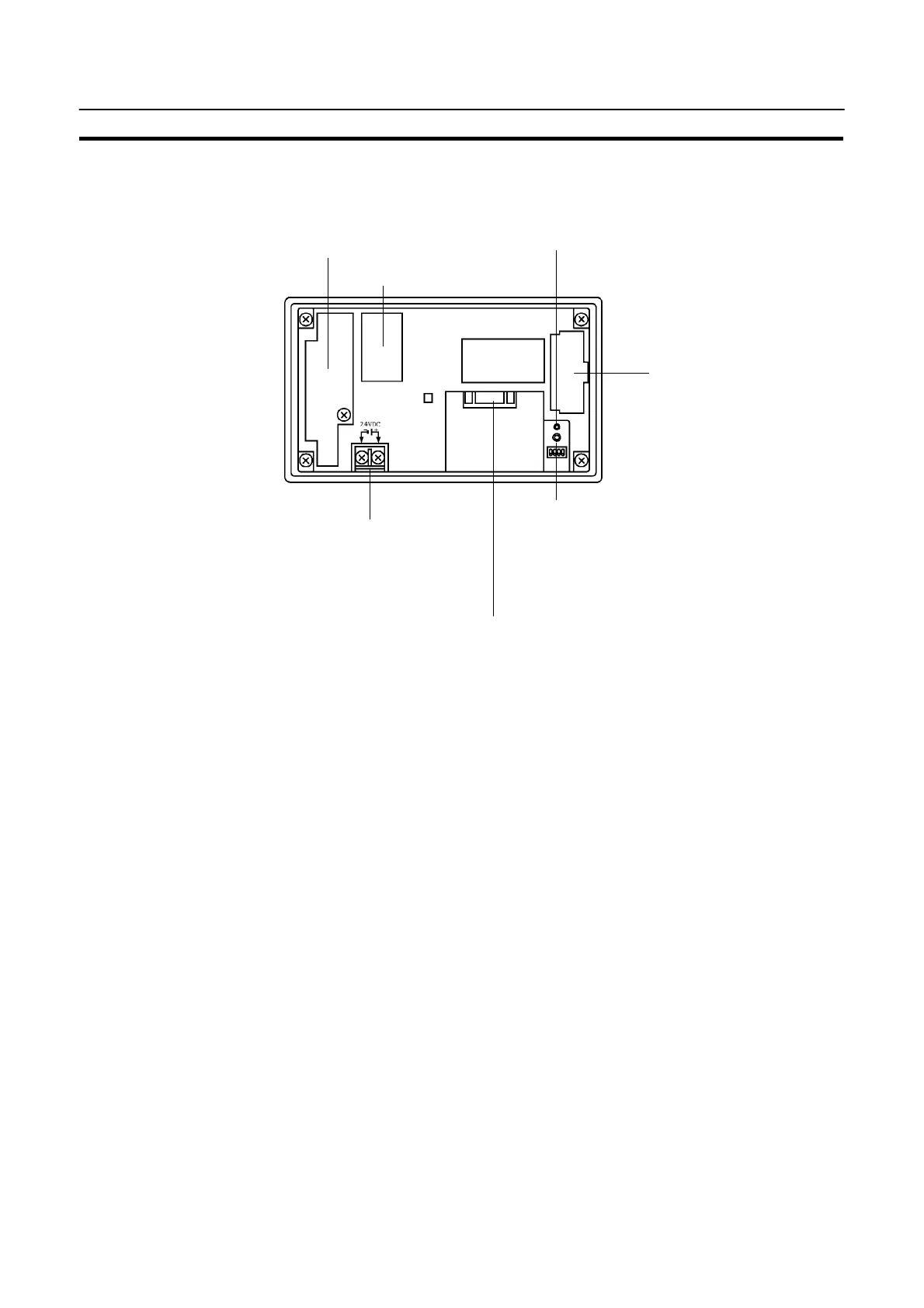

Rear View
Power input terminals
Connect the power to the
NT20S at these terminals.
Lid for backlight replacement
The backlight unit is installed behind
this lid.
Contrast control
Use a fine flat-blade screwdriver. Clockwise
turns will increase the brightness.
Reset switch
The NT20S statuses are reset to the
initial statuses by pressing this switch.
The screen data memory and the
memory switch will retain the status
even if this switch is pressed.
Host I/F tool connector
Connect the cable here from a PC/Host or support tool.
(On the NT20S-ST122-V1 this connector is for connection to a host only.)
The NT20S-ST122-V1 has the
support tool connector and
communication condition setting
switches under this cover.
Warning label
