Omron NT20S User Manual

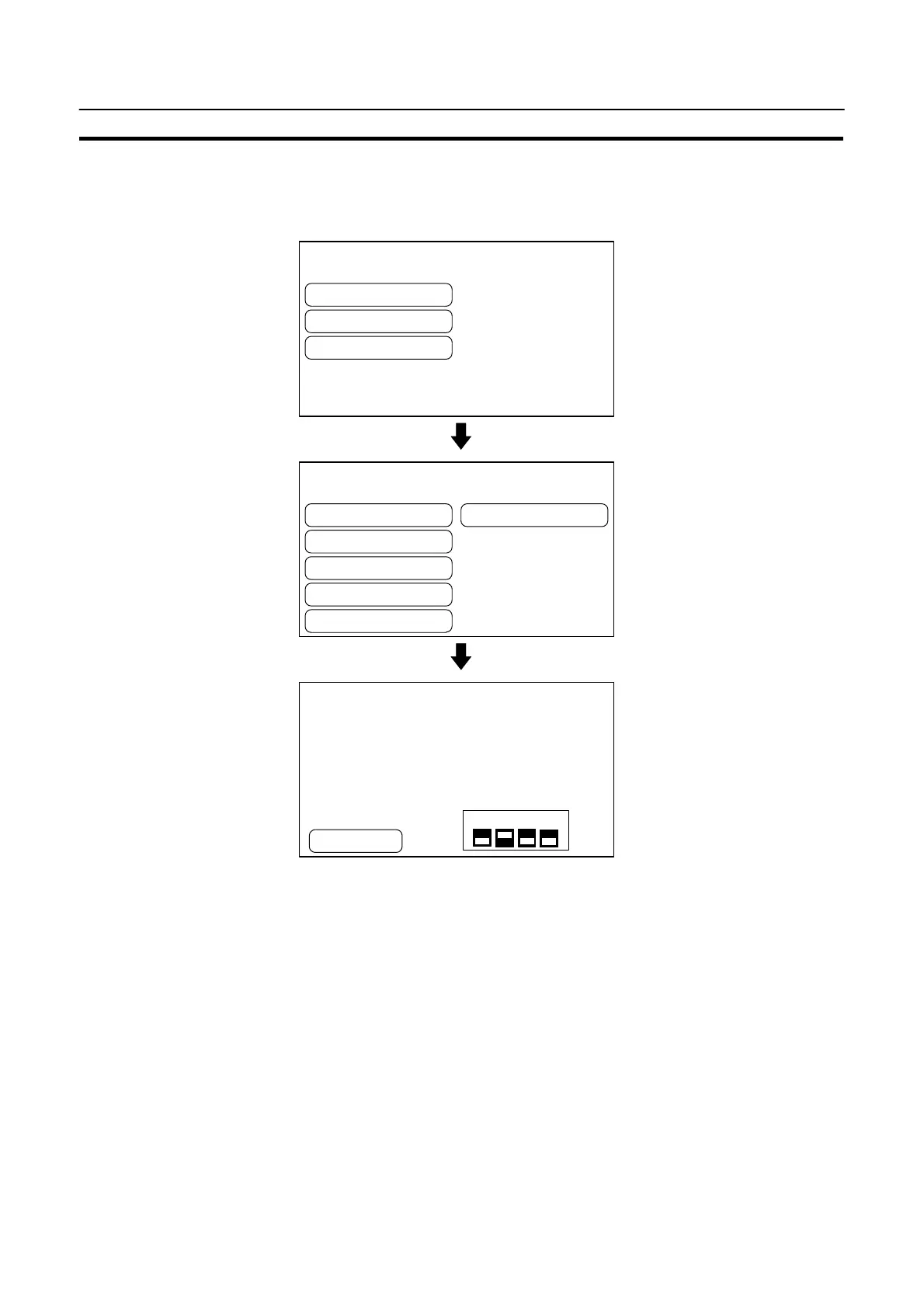

[ SYSTEM MENU ]
Quit
Transmit Mode
Maintenance Mode
[ MAINTENANCE MENU ]
Quit
PT Setting
I/O Check
DIP-SW Status
Init. Memory
Memory Switch
[ DIP-SWITCH STATUS ]
1. Forced Init. No
2. Message Mode English
3. Mode Change Enable
4. Reserved OFF
EXIT
1234
ON
OFF
[SW2]
109
System Maintenance
Section 3-9
3-9-3 Checking the NT20S DIP Switch Settings
Display the NT20S DIP switch settings by using the menu operation from the Sys-
tem Menu as mentioned below.
Select “Maintenance Mode”.
Select “DIP-SW Status”.
S The NT20S DIP switch statuses are displayed.
S Pressing the EXIT touch switch clears the DIP switch status display from the
screen and causes the NT20S to enter the RUN mode.
Note: If the DIP switch settings have been changed when the NT20S is powered, reset
the power to the NT20S. The changes with the DIP switches become effective only
after the power supply is reset.
