4-1 Installation Conditions
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
4
System Design
4-1 Installation Conditions
Space Conditions around Servo Drives
Space Conditions around Equipment

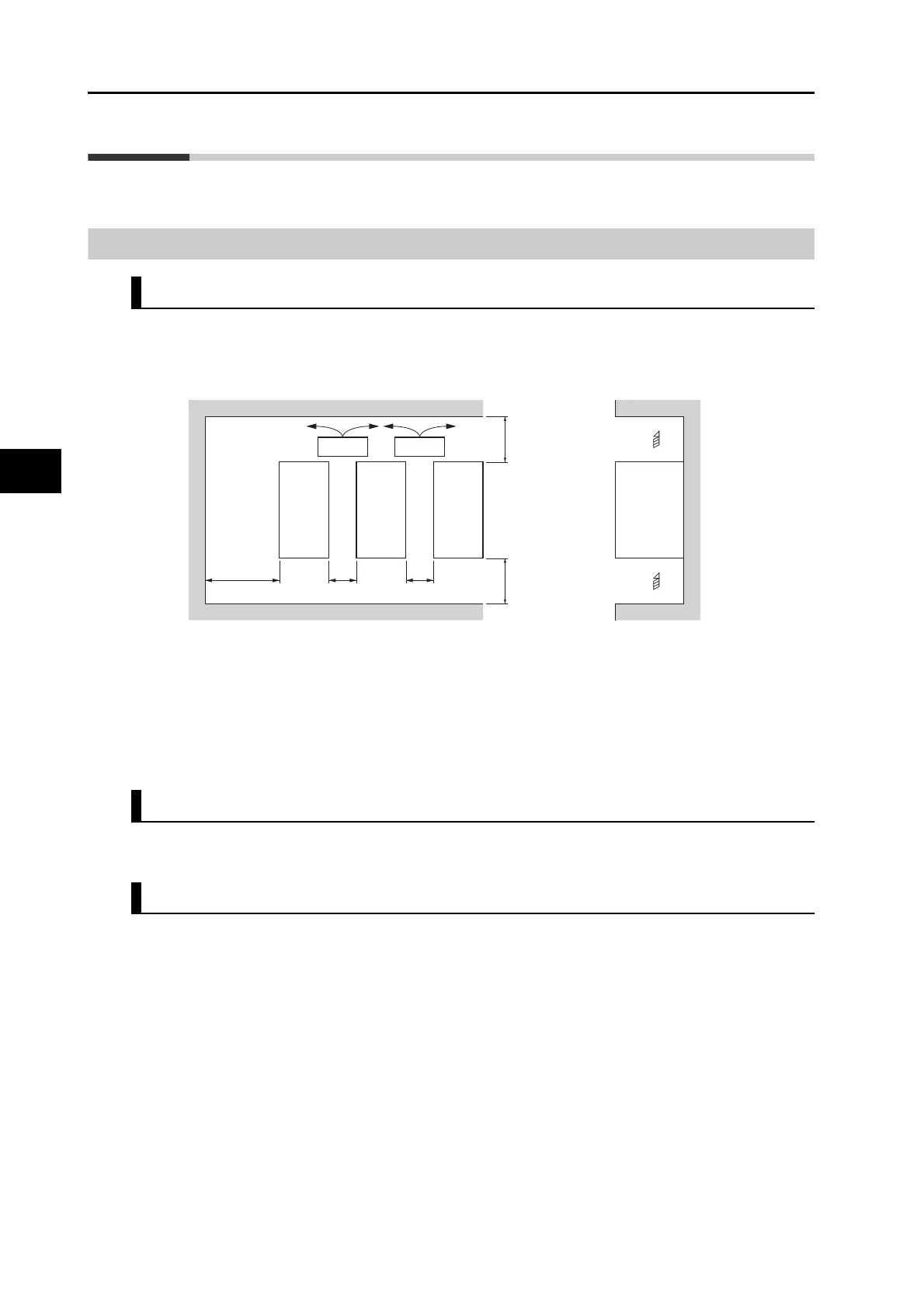

Install Servo Drives according to the dimensions shown in the following illustration to ensure
proper dispersion of heat from inside the drive and convection inside the panel. If the drives are
installed side by side, install a fan for air circulation to prevent uneven temperatures inside the
panel.
W must be 50 mm or more if 7.5-kW or 15-kW Servo Drives are installed.
Servo Drives of 100 V or 200 V with a capacity of 750 W max. can be installed side by side with
a 1-mm clearance (W in above illustration). For ambient temperature requirements, refer to
Environment Operating Conditions below.
If the mounting surface of the Servo Drive is coated, remove the coating to allow electrical
conduction. If you make your own mounting bracket, we recommend that you apply electrically
conductive plating.
Mounting Direction
Mount the Servo Drive perpendicular on the panel so that the model number reads normally.
Environment Operating Conditions
The environment in which drives are operated must meet the following conditions. Drives may
malfunction if operated under any other conditions.
Operating ambient temperature: 0 to +55°C (Take into account temperature rises in the
following individual drives themselves.)
Operating humidity: 85% max. (with no condensation)
Operating atmosphere: No corrosive gases.
Altitude: 1,000 m max.
For Servo Drives of 100 V or 200 V with a capacity of 750 W max., the specifications for operating
ambient temperature depend on the Servo Drive (A, B, and C) when the clearance between Servo
Drives is 1 mm.
Servo Drive A: 0 to 50 °C
Servo Drive B: 0 to 40 °C
Servo Drive C: 0 to 45 °C
WW
W = 10 mm or more
Side
of
Servo
Drive
40 mm or more
100 mm min.
100 mm min.
Air
Air
Fan Fan
Servo
Drive
Servo
Drive
A
B
C
Servo
Drive
To Next Page
