Onkyo PR-SC5509 User Manual

10
En
a UNIVERSAL PORT jack
b IR IN (A/B) and OUT jacks
c DIGITAL IN COAXIAL and OPTICAL jacks
d USB port
e ETHERNET port
f u REMOTE CONTROL jack
g RS232 port
Terminal for control.
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i MONITOR OUT V and S jacks
j COMPONENT VIDEO IN and MONITOR OUT
jacks
k COMPONENT VIDEO ZONE 2 OUT jacks
l ZONE 2 OUT V jack
m PC IN jack
n FM ANTENNA jack and AM ANTENNA terminal
o AC INLET
p GND screw
q INPUT jacks (BALANCE L/R)
r 12V TRIGGER OUT (A/B/C) jacks
s Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT,
CBL/SAT IN, GAME IN, PC IN, TV/CD IN and
PHONO IN)
t MULTI CH input jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R and SUBWOOFER)
u PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2)
v ZONE 2 and ZONE 3 PRE/LINE OUT jacks
w PRE OUT jacks
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SUBWOOFER 1 and SUBWOOFER 2)

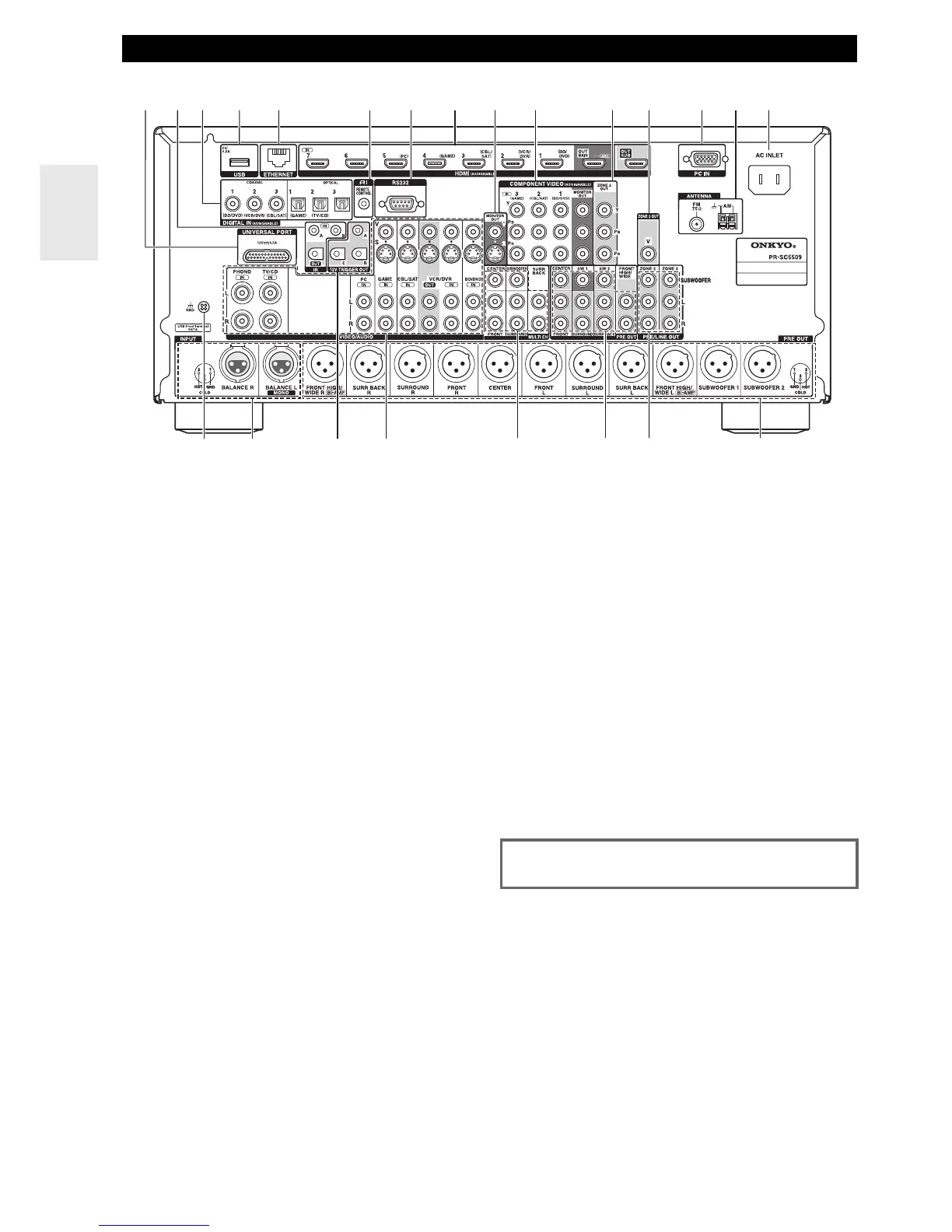

Rear Panel
f g h ji lk nm
o
p

s t
u
ed
q r
v w
ba c
See “Connecting the AV Controller” for connection
(➔ pages 12 to 24).

Onkyo PR-SC5509 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
USB ports quantity	2
S-Video inputs quantity	4
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Component video (YPbPr/YCbCr) out	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	110 W

Weight and Dimensions

Depth	453.5 mm
Width	435 mm
Height	198.5 mm
Weight	14000 g
