19
En
Note
• The AV controller does not support SCART plugs.
• The AV controller’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s
removed. Push plugs in all the way.
Caution
• To prevent shutter damage, hold the optical plug straight when inserting and removing.
Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ page 50).
See also:
• “Connection Tips and Video Signal Path” (➔ page 95)
• “Using an RIHD-compatible TV, Player, or Recorder” (➔ page 98)
• “About HDMI” (➔ page 100)
■ Audio Return Channel (ARC) function
Audio Return Channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT MAIN
of the AV controller.
• This function can be used when:
– your TV is ARC capable, and
–the TV/CD input selector is selected, and
–“HDMI Control(RIHD)” is set to “On”(➔ page 67), and
–“Audio Return Channel” is set to “Auto” (➔ page 68).
Tip
• To listen to audio received by the HDMI IN jacks through your TV’s speakers:
– Set the “HDMI Control(RIHD)” setting to “On” (➔ page 67) for an p-compatible TV.
– Set the “Audio TV Out” setting to “On” (➔ page 67) when the TV is not compatible with p, or the “HDMI
Control(RIHD)” setting to “Off”.
– Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM.

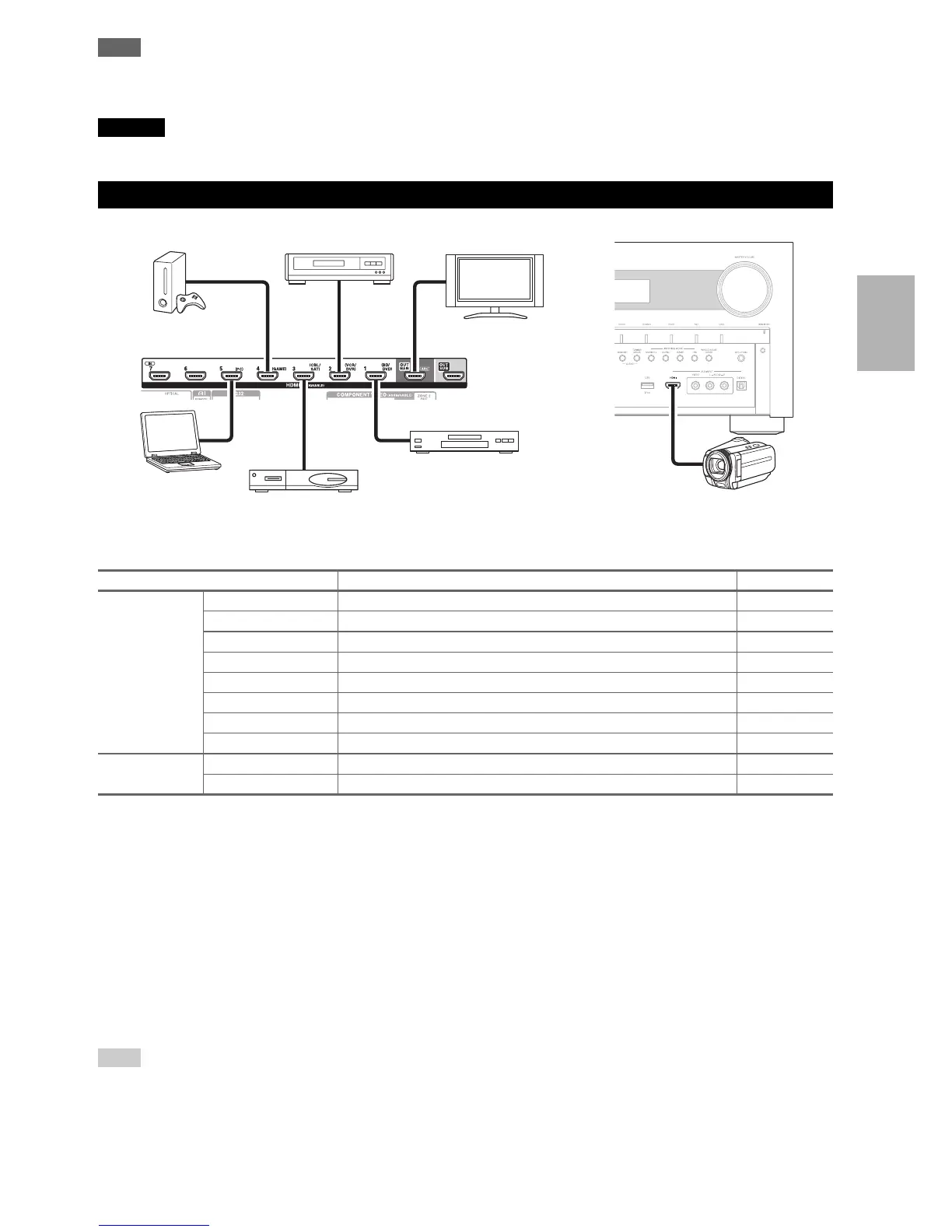

Connecting Components with HDMI
Jack Components Assignable
Input HDMI IN 1 Blu-ray Disc/DVD player ✔
HDMI IN 2 VCR or DVD recorder/Digital Video Recorder ✔
HDMI IN 3 Satellite/cable set-top box, etc. ✔
HDMI IN 4 Game console ✔
HDMI IN 5 Personal computer ✔
HDMI IN 6 Other components ✔
HDMI IN 7 Other components ✔
AUX INPUT HDMI Camcorder
Output HDMI OUT MAIN TV
HDMI OUT SUB projector, etc.
Game console
VCR or DVD recorder/Digital Video Recorder
TV, projector, etc.
Satellite/cable set-top box, etc.
Blu-ray Disc/DVD player
Camcorder
Personal computer
