Onkyo PR-SC5509 User Manual

48
En

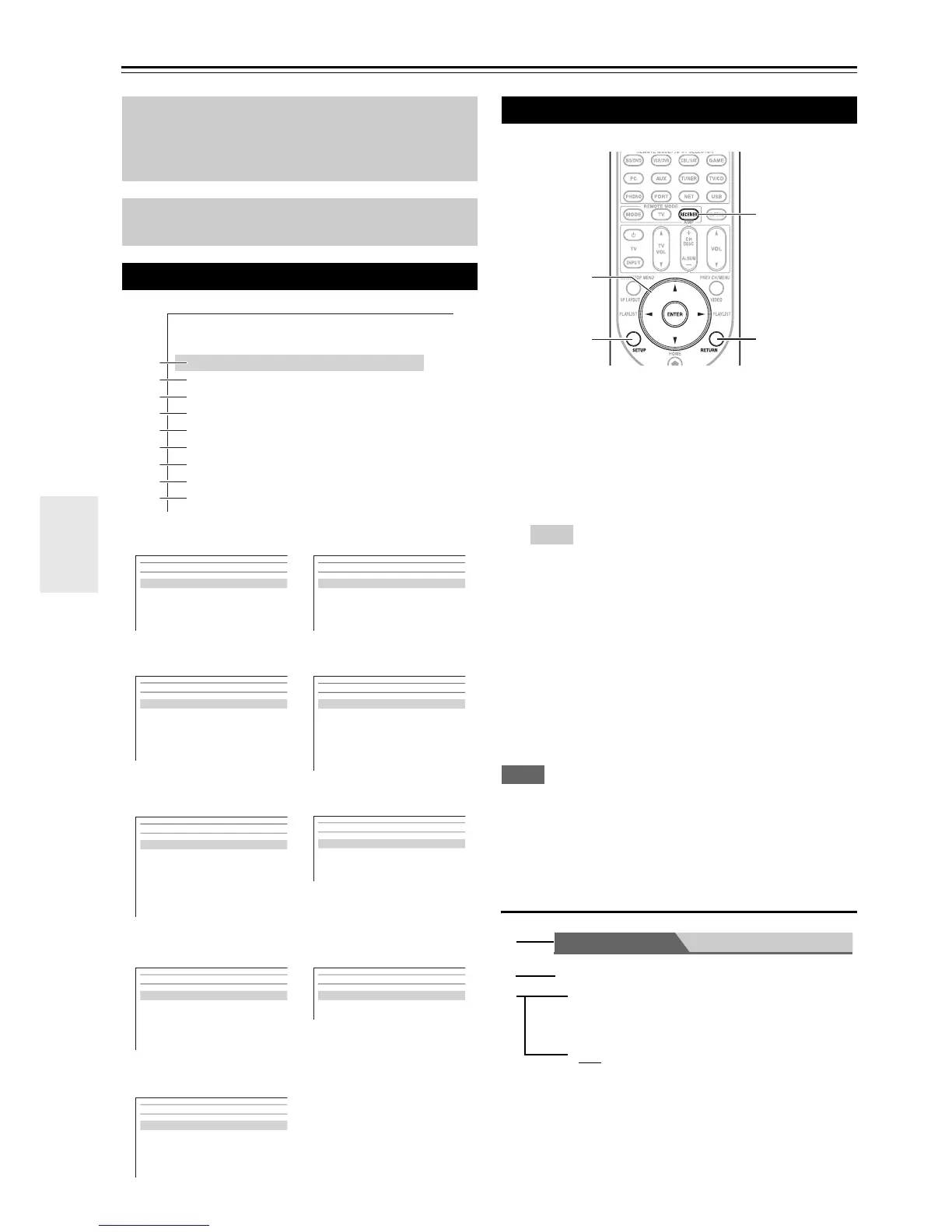

Advanced Operations
Advanced Setup
The on-screen setup menus appear on the connected TV
and provide a convenient way to change the AV
controller’s various settings. Settings are organized into
9 categories on the main menu.
Carry out the settings by using the on-screen display.
Note
• This procedure can also be performed on the AV controller by
using SETUP, the arrow buttons, and ENTER.
• During Audyssey MultEQ
®
XT32 Room Correction and
Speaker Setup, messages, etc., that are displayed on the TV
screen will appear in the Display.
Explanatory Notes
The on-screen menus appear only on a TV that is
connected to the HDMI OUT MAIN. If your TV is
connected to other video outputs, use the AV
controller’s display when changing settings.
This section describes the procedure for using the
remote controller unless otherwise specified.
On-screen Setup Menus
a Input/Output Assign
(➔ page 49)
f Miscellaneous
(➔ page 65)
b Speaker Setup
(➔ page 52)
g Hardware Setup
(➔ page 66)
c Audio Adjust
(➔ page 56)
h Remote Controller
Setup (➔ page 80)
d Source Setup
(➔ page 59)
i Lock Setup
(➔ page 70)
e Listening Mode Preset
(➔ page 64)
MENU
1. Input/Output Assign
2. Speaker Setup
3. Audio Adjust
4. Source Setup
5. Listening Mode Preset
6. Miscellaneous
7. Hardware Setup
8. Remote Controller Setup
9. Lock Setup
a
b
c
d
e
f
g
h
i
1. Monitor Out
2. HDMI Input
3. Component Video Input
4. Digital Audio Input
5. Analog Audio Input
1. Input/Output Assign
1. Volume Setup
2. OSD Setup
3. 12V Trigger A Setup
4. 12V Trigger B Setup
5. 12V Trigger C Setup
6. Miscellaneous
1. Speaker Settings
2. Speaker Configuration
3. Speaker Distance
4. Level Calibration
5. Equalizer Settings
6. THX Audio Setup
2. Speaker Setup
1. Remote ID
2. Multi Zone
3. Tuner
4. HDMI
5. Auto Standby
6. Network
7. Firmware Update
7. Hardware Setup
1. Multiplex/Mono
2. Dolby
3. DTS
4. Audyssey DSX
5. Theater-Dimensional
6. LFE Level
7. Direct
8. Sound Program Edit
3. Audio Adjust
1. Remote Mode Setup
2. Activities Setup
8. Remote Controller Setup
1. Audyssey
2. IntelliVolume
3. A/V Sync
4. Name Edit
5. Picture Adjust
6. Audio Selector
4. Source Setup
Setup
9. Lock Setup
1. BD/DVD
2. VCR/DVR
3. CBL/SAT
4. GAME
5. PC
6. AUX
5. Listening Mode Preset
Common Procedures in Setup Menu
1
Press RECEIVER followed by SETUP.
Tip
• If the main menu doesn’t appear, make sure the appropriate
external input is selected on your TV.
2
Use q/w to select a menu, and then press ENTER.
3
Use q/w to select a target, and then press ENTER.
4
Use q/w to select an option, and use e/r to change
the setting.
Press SETUP to close the menu.
Press RETURN to return to the previous menu.
RETURN
SETUP
RECEIVER
ENTER
q/w/e/r
a Menu selection
b Setting target
c Setting options (default setting underlined)
Main Menu Speaker Setup
■ Subwoofer
` 1ch:
The audio signal is outputted from
SW/SUBWOOFER 1 jack only.
` 2ch
:
The audio signal is outputted from
SW/SUBWOOFER 1 and 2 jacks.
a
b
c

Onkyo PR-SC5509 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
USB ports quantity	2
S-Video inputs quantity	4
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Component video (YPbPr/YCbCr) out	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	110 W

Weight and Dimensions

Depth	453.5 mm
Width	435 mm
Height	198.5 mm
Weight	14000 g
