Onkyo PR-SC5509 User Manual

9
En
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (25)
b Remote control sensor and transmitter (4)
c Display (9)
d MASTER VOLUME control and indicator (26, 74)
e HDMI THRU indicator (67)
f PURE AUDIO button and indicator (37)
g Input selector buttons and indicators (26)

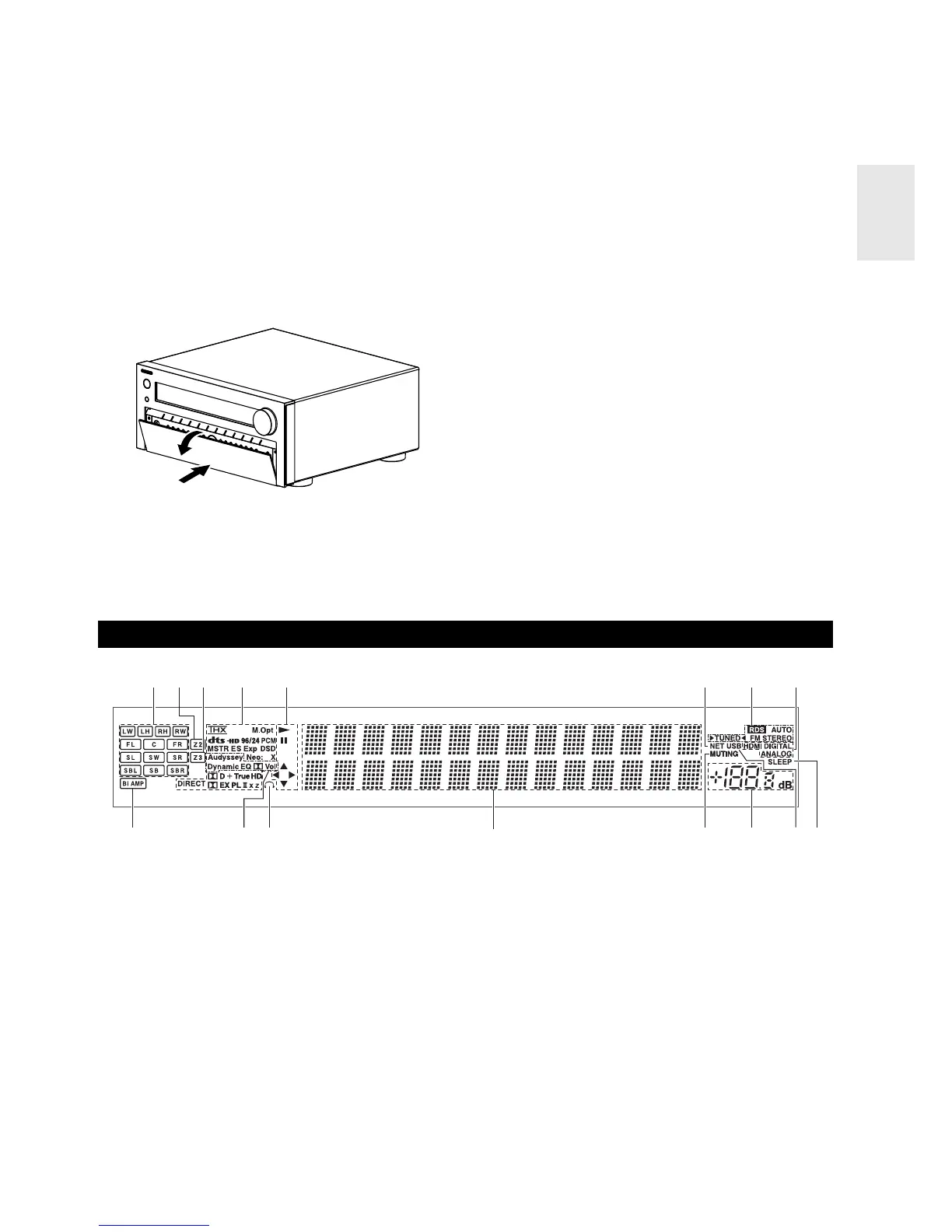

h Front flap
Gently push on the lower end of the front panel to
open the flap.
i PHONES jack (46)
j ZONE 2, ZONE 3, and OFF buttons (74)
k TONE and Tone Level buttons (70, 75)
l MONITOR OUT button (49)
m DISPLAY button (45)
n TUNING, PRESET (31 to 32), arrow and enter
buttons
o DIMMER button (North American models) (45)
p MEMORY button (32)
q TUNING MODE button (31)
r LISTENING MODE buttons (37)
s WHOLE HOUSE MODE button (45)
t SETUP MIC jack (34)
u SETUP button (48)
v HOME button (44)
w RETURN button
x USB port (21)
y AUX INPUT jacks (19, 21)
z %POWER button (European and Asian models)
(25)
A RT/PTY/TP button (European and Asian models)
(33)
For detailed information, see the pages in parentheses.
a Speaker/channel indicators
b Z2 (Zone 2) indicator (74)
c Z3 (Zone 3) indicator (74)
d Listening mode and format indicators (37, 71)
e 1, 3 and cursor indicators (26)
f NET indicator (28, 68)
g Tuning indicators
RDS indicator (excluding North American models)
(32)
AUTO indicator (31)
TUNED indicator (31)
FM STEREO indicator (31)
h Audio input indicators
i Bi AMP indicator (16, 52)
j Audyssey indicator (34, 59)
Dynamic EQ indicator (59)
- (Dolby) Vol indicator (57)
Dynamic Vol indicator (60)
k Headphone indicator (46)
l Message area
m MUTING indicator (46)
n Volume level (26)
o USB indicator (27, 28)
p SLEEP indicator (44, 64)
Display
dc e gfa h
ki
l
m n o
p
j
b

Onkyo PR-SC5509 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
USB ports quantity	2
S-Video inputs quantity	4
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Component video (YPbPr/YCbCr) out	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	110 W

Weight and Dimensions

Depth	453.5 mm
Width	435 mm
Height	198.5 mm
Weight	14000 g
