Onkyo PR-SC5509 User Manual

21
En

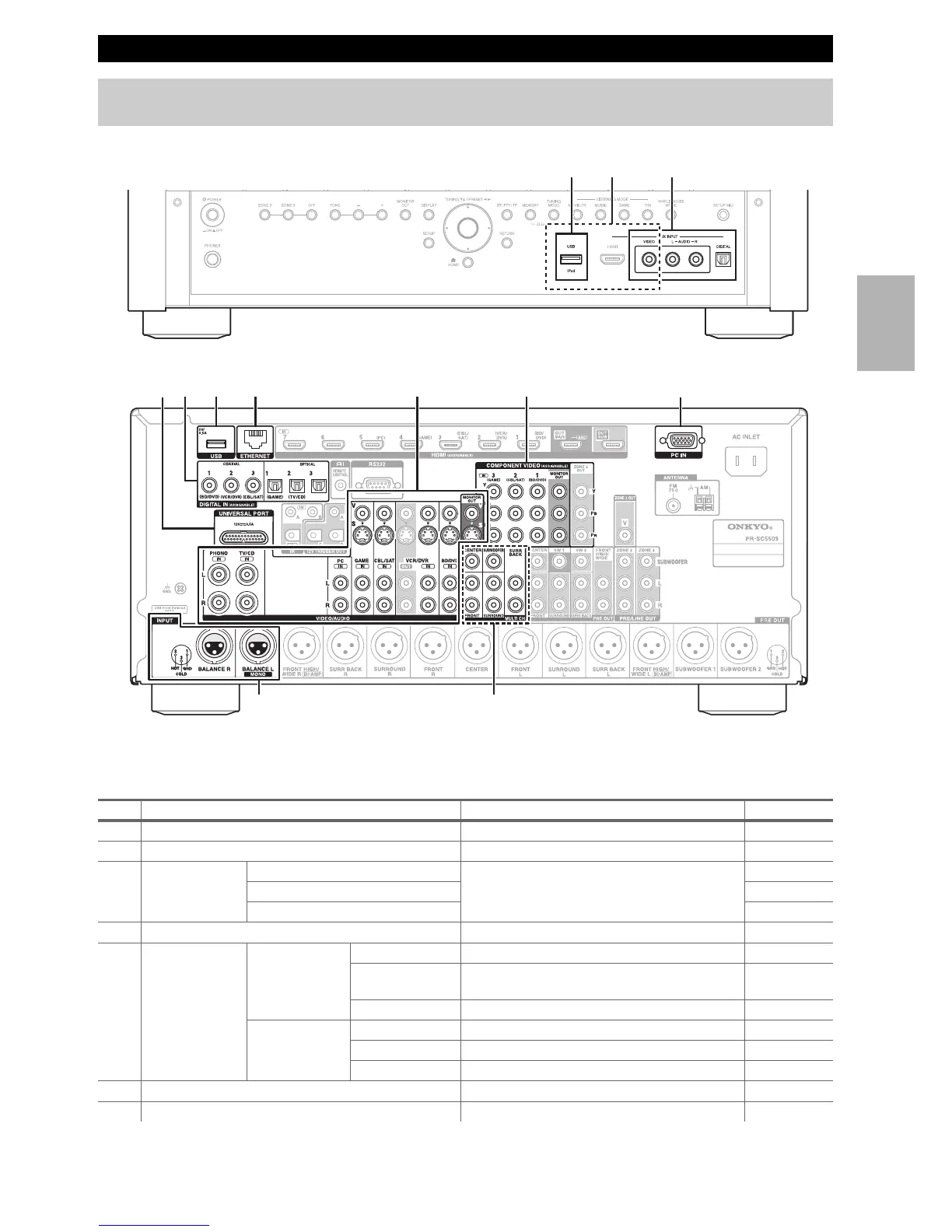

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection
Tips and Video Signal Path” for more information (➔ page 95).
✔: Assignment can be changed (➔ page 51).
Connecting Your Components
The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to
other video outputs, use the AV controller’s display when changing settings.
No. Jack/Port Components Assignable
A
USB
*1
iPod/iPhone, MP3 player, USB flash drive
B
USB, AUX INPUT VIDEO iPod/iPhone (video playback)
C
AUX INPUT VIDEO Camcorder, etc.
AUDIO L/R
DIGITAL
D
UNIVERSAL PORT Universal port option dock (UP-A1 etc.)
E
DIGITAL IN COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔
2 (VCR/DVR) VCR or DVD recorder/digital video recorder, RI
dock
✔
3 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔
OPTICAL 1 (GAME) Game console ✔
2 (TV/CD) TV, CD player ✔
3 Other components ✔
F
USB
*1
MP3 player, USB flash drive
G
ETHERNET Router
CBA
EDJF G I
L
H
K
Front
Rear

Onkyo PR-SC5509 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
USB ports quantity	2
S-Video inputs quantity	4
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Component video (YPbPr/YCbCr) out	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	110 W

Weight and Dimensions

Depth	453.5 mm
Width	435 mm
Height	198.5 mm
Weight	14000 g
