value = 2 is 1 packet in 4 seconds
The range is -4 to +5
Configure Announce Receipt Timeout in seconds.
The range is +2 to +10
Differentiated Service Code Point (DSCP) settings for PTP
frames for network-wise QoS treatment
Click for selection and settings to be applied to the EdgeSync
Click to clear the latest changes
ESMC channel is enabled or disabled
IEEE 802.3 link mode: Master or Slave or none
Input QL on Rx ESMC message on this port
Output QL on Tx ESMC message on this port
Following an active reference clock (frequency)
Table 8 PTP Port Options
Note: The above configurations are per PTP port.
PTP :: Unicast

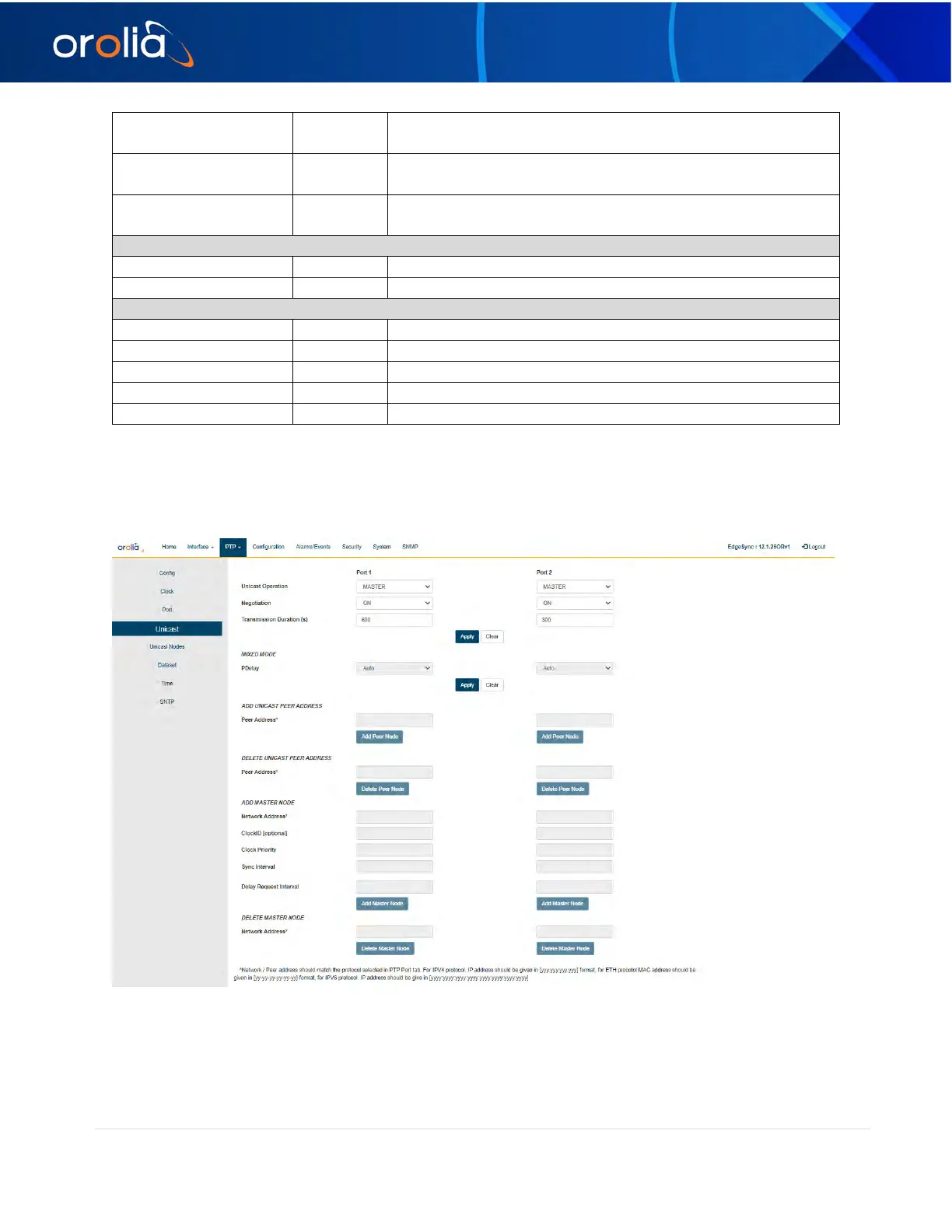

Figure 17 PTP :: Unicast Webpage
The Unicast Settings Webpage for Port 1 / Port 2 contains the following displays, selections, entries,
and buttons:
To Next Page
Loading...
General
