Installation and commissioning
24
106-011
Fig. 8 - 05
Connect all plugs as labelled in the control box.
Screw the earth cable from the machine and the main switch to earth point A.
Connect earth point A and earth point B with an earth cable.
Screw the earth cable of plug 1 to earth point B.
●
●
●
●

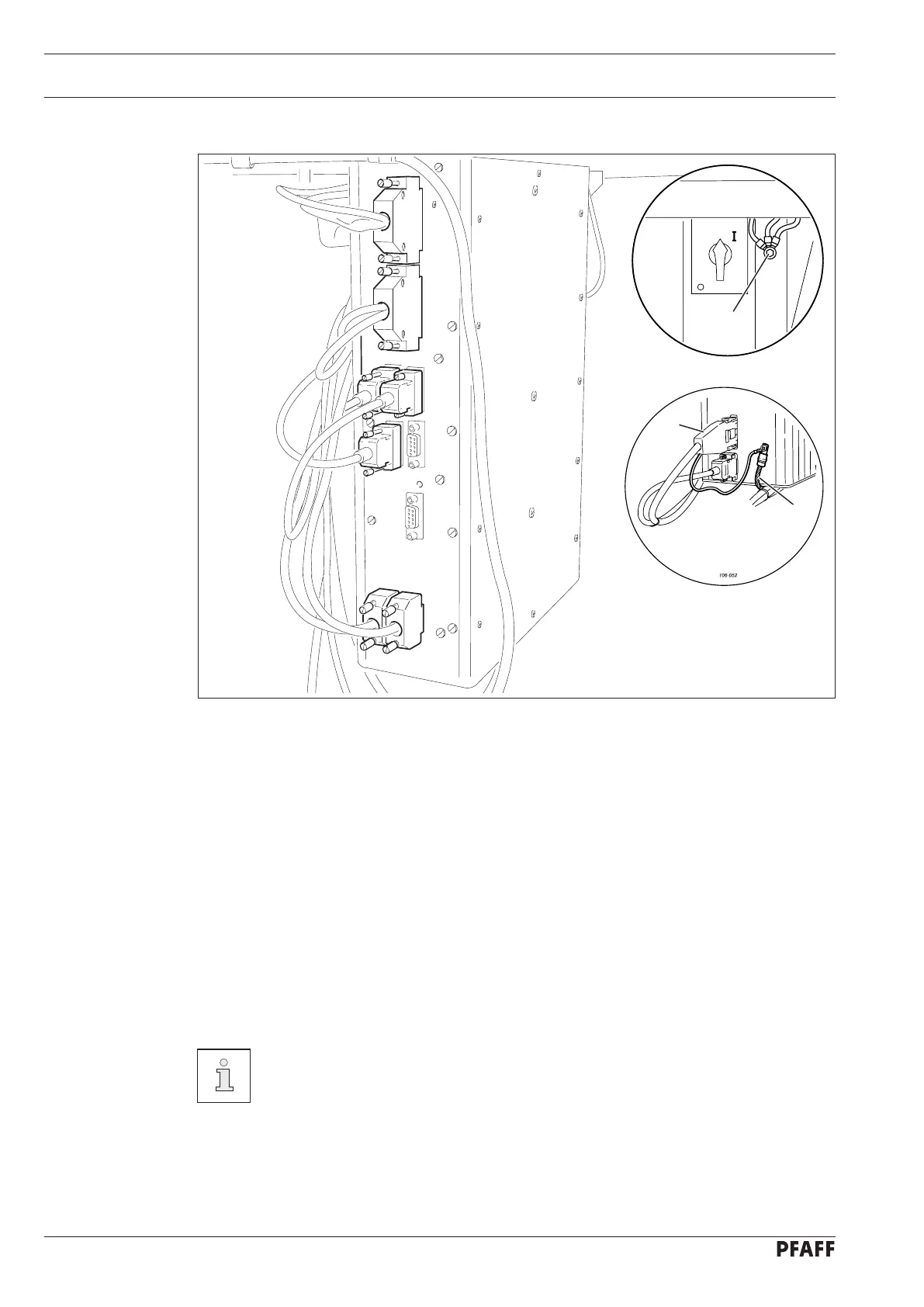

8.01.06 Connecting the plug-in connections and earth cable
106-051
A
8.02 Commissioning the machine
Clean the machine thoroughly.
Check the oil level, see Chapter 12 Care and Maintenance.
Check the machine, especially the electric wires, for any damage.
Have specialists check, whether the machine’s motor can be used with the existing
mains voltage.
Circuit diagrams, see Chapter 13.
8.03 Switching the machine on/off
Switching the machine on/off, see Chapter 7.01 Main switch.
●
●
●
●
●
1
B
