9 Setting up
All instructions and regulations in this instruction manual must be observed.
Special attention must be given to all safety regulations!
All setting-up work must only be done by personnel with the necessary
training. For all setting-up work the machine must be isolated from its powe
supply by turning off the on/off switch or removing the machine plug from the
electric power socket!
9.01 Inserting the needle
Switch off the machine!
Danger of injury if the machine
is started accidentally!
Only use needles from the sys-
tem intended for the machine,
see Chapter 3 Specifications.
Loosen screw 1.
Insert the needle as far as possible. The
long needle groove (see arrow) must be
facing forwards.
Tighten screw 1.
●
●
●

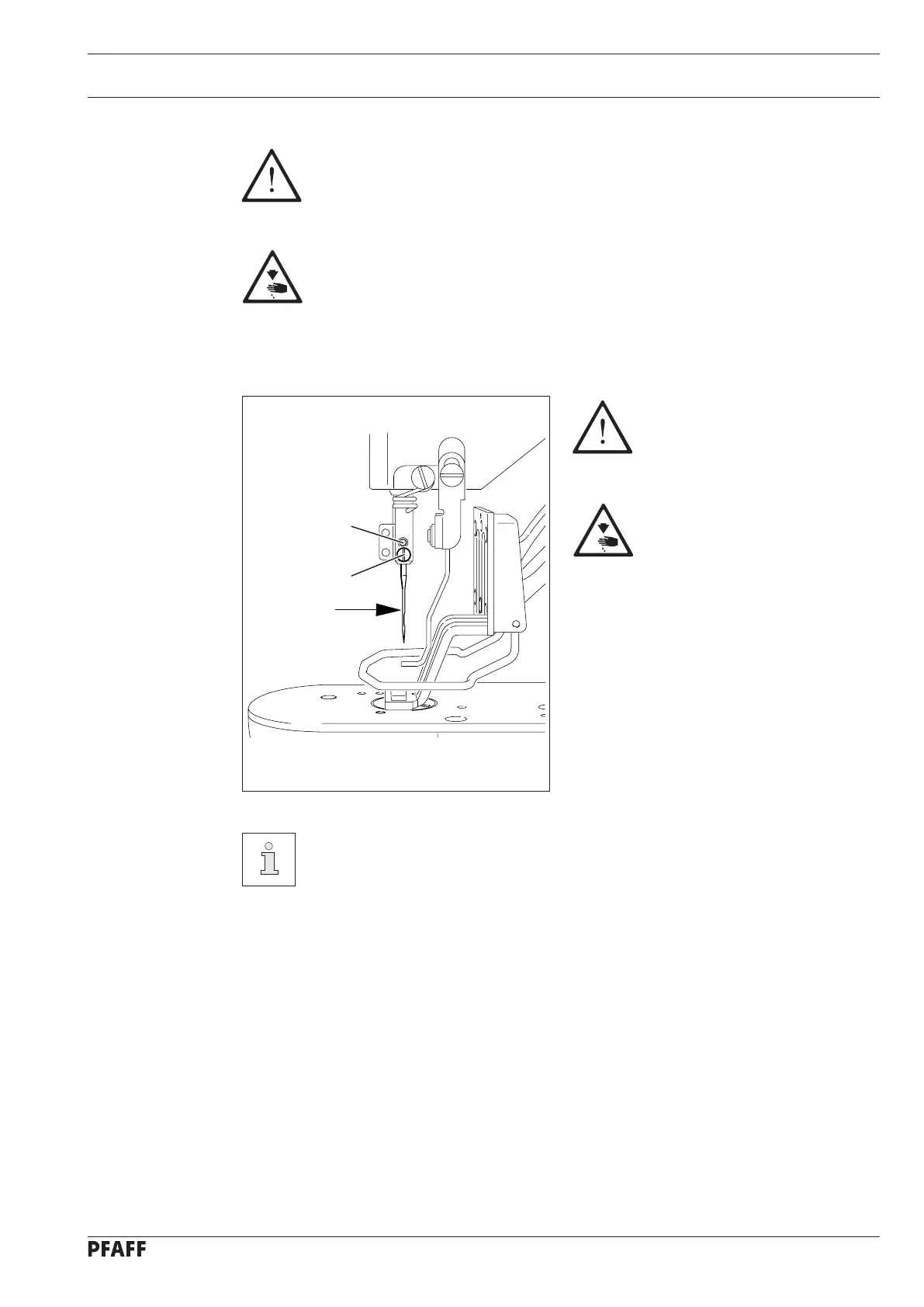

Fig. 9 - 01
1
2
Through hole 2 it is possible to check whether the needle has been inserting
as far as possible.
Broken needles can be removed by inserted suitable tools in hole 2.
